Overview

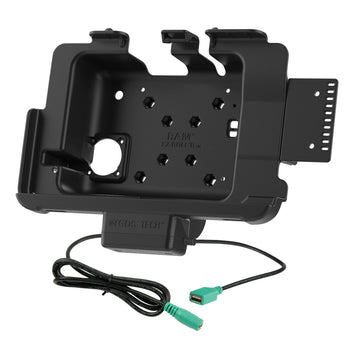

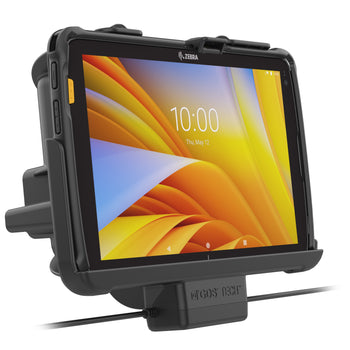

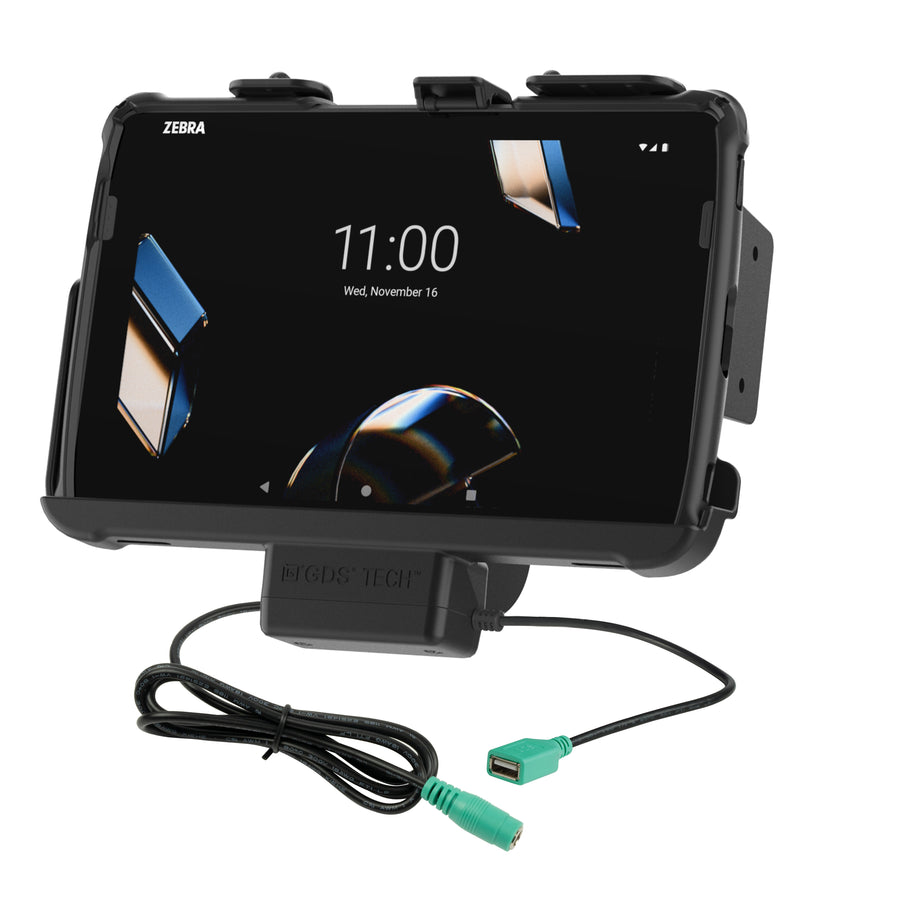

Featuring data and charging capabilities, the RAM® Tough-Dock™ for Zebra ET40 & ET45 10" enterprise tablets with Rugged Frame allows you to connect a desired peripheral while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's 5.5mm DC power jack, while peripheral support is provided by the built-in USB Type-A cable. The dock also allows the tablet's scanning function to work on the side, as well as tablet add-ons such as the Zebra Expansion Back and PowerPack Battery. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone or other handheld device.
Features
- RAM® Tough-Dock™ with EZ-Roll'r™ design with data and charging capabilities for the Zebra ET40 & ET45 10" enterprise tablets with Rugged Frame via DC 5.5mm power jack and USB Type A connector for adding a peripheral; MIL-STD 810G Shock and Vibration tested
- When connected to a power source, integrated pogo pins provide power to the device while docked; Dock accommodates tablet add-ons such as the Expansion Back and PowerPack Battery; tablet scanning works while tablet is docked

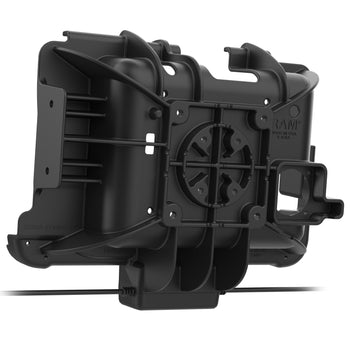

- Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability

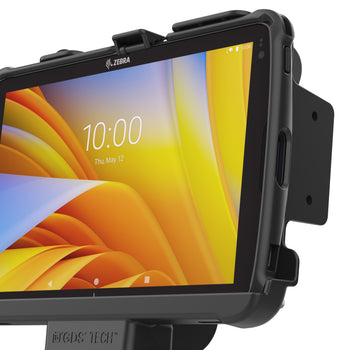

- Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
- Backed by a 3-year warranty
hardware included:
(1) Side bracket for accessory mounting
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
(2) Small Cable Ties
hole pattern:
75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"
materials:
High strength composite
packaging type:
Poly Bag
input connector:
5.5mm DC Connector
input cable length:
1 Meter
output connector:
USB 2.0 Type A
output cable length:
242mm
peripheral output:
500mAh
transfer speed:
12Mbps
certifications:
RoHS
WEEE
CE
UKCA
Warranty:
3 year warranty
Weight:
1.55 lb
Additional Information:
To support the tablet without the Rugged Frame, see RAP-INSERT-ZE21U. This dock is not compatible with IntelliSkin®. For IntelliSkin® with GDS® Tech™, see RAM-GDS-DOCK-ZE21PDU.
Questions & Answers
Have a Question?
-
RAM-HOL-ZE21PDUwith the USB port, can we attach an zebra DS3678 craddle with usb calbe, on the ET45 RAM DOCKING, to charge the DS3678 scanner? (when it's placed on the docking)https://www.zebra.com/us/en/products/scanners/ultra-rugged-scanners/ds36x8-er.html
The USB-A connection of a RAM-HOL-ZE21PDU is intended to allow data transfer between the tablet and a peripheral (like the scanner gun) or to power the peripheral directly, there is not enough output to power a charger.
