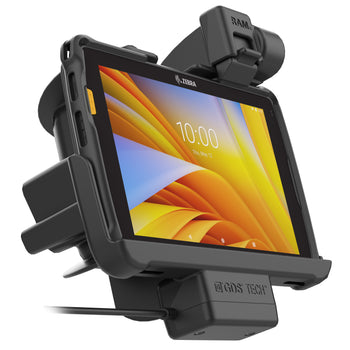

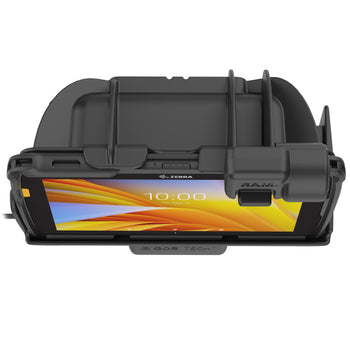

RAM® Tough-Dock™ with Latch for Zebra ET4x 8" Tablet
$154.99
Power, Latch Style
Features
- Form-fit dock designed specifically for the Zebra ET40 & ET45 8" tablets with Rugged Frame, including a top latch design for frequent docking and undocking of the tablet

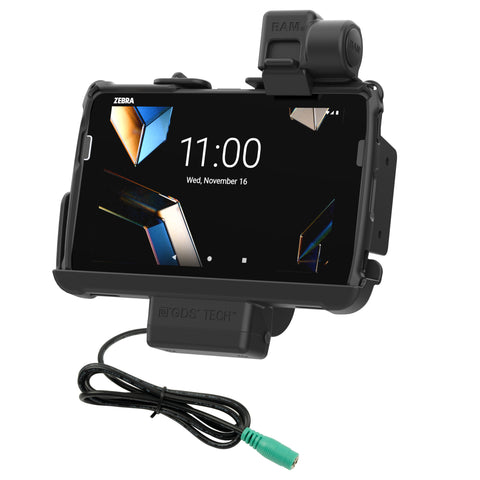

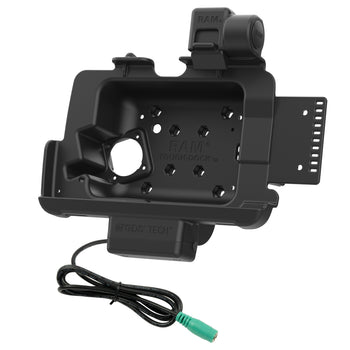

- When connected to a power source via DC 5.5mm power jack, integrated pogo pins provide power to the device while docked
- Space in the back of the dock to accommodate tablet add-ons such as the Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories

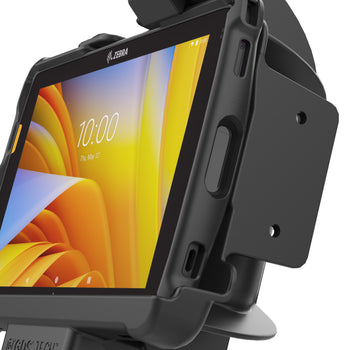

- Built-in 2-hole mounting plate for additional device mounting such as a phone, scanner, printer, and more
- Backed by a 3-year warranty

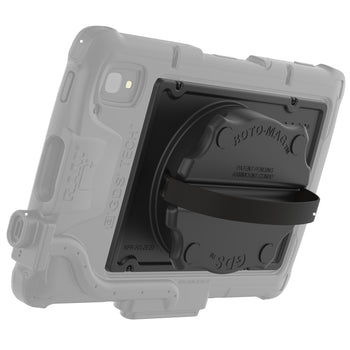

For frequent docking and undocking of the Zebra ET40 & ET45 8" tablets wrapped in a Rugged Frame, this form-fit RAM® Tough-Dock™(RAM-HOL-ZE20PNLLU) features a top latch design for securing the tablet without wear and tear on the dock itself. Power is provided via a 5.5mm DC barrel connector and allows you to keep the device charged through the pogo pin contacts when the device is docked. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories like the GDS® Roto-Mag™ and GDS® Hand-Stand™. To mount this dock, pair any C and D size RAM® 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device.
RAM® Tough-Dock™ with Latch for Zebra ET4x 8" Tablet
Overview
For frequent docking and undocking of the Zebra ET40 & ET45 8" tablets wrapped in a Rugged Frame, this form-fit RAM® Tough-Dock™(RAM-HOL-ZE20PNLLU) features a top latch design for securing the tablet without wear and tear on the dock itself. Power is provided via a 5.5mm DC barrel connector and allows you to keep the device charged through the pogo pin contacts when the device is docked. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories like the GDS® Roto-Mag™ and GDS® Hand-Stand™. To mount this dock, pair any C and D size RAM® 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device.
hardware included
(1) Side bracket for accessory mounting
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
(2) Small Cable Ties

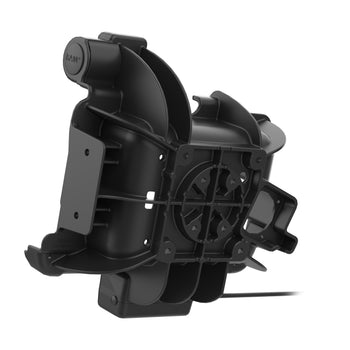

hole pattern
75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
input connector
5.5mm DC Connector
input cable length
1 Meter
certifications
RoHS
WEEE
CE
UKCA
Warranty
3 year warranty
Weight
1.45 lb
Additional Information
To support the tablet without the Rugged Frame, see RAP-INSERT-ZE20LU. This dock is not compatible with IntelliSkin®. For IntelliSkin® with GDS® Tech™, see RAM-GDS-DOCKL-ZE20PD2U.
