• Spring-loaded form-fit dock perfectly secures the Zebra TC53 and TC58 with or without rugged boot; provides power through 1.25-meter long DC connector
  • Compatible with the Zebra hand strap accessory
  • Compatible with B and C size RAM® 2-hole diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a 3-year warranty

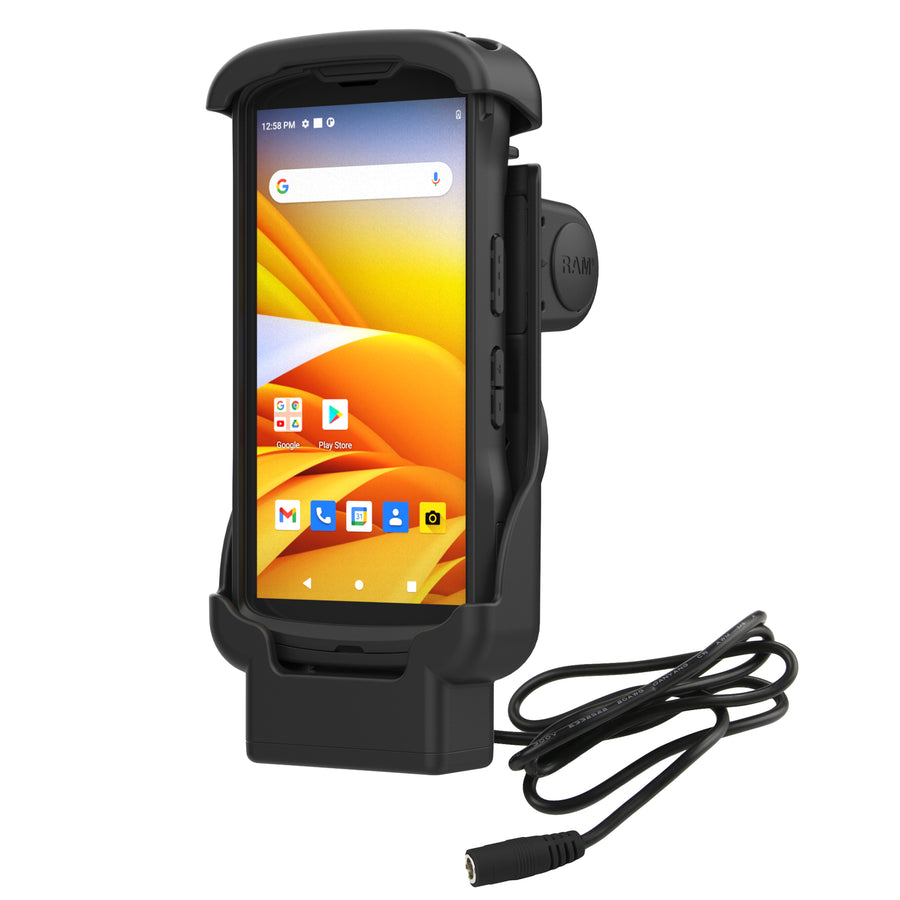

RAM® Form-Fit Powered Dock for Zebra TC53 & TC58
Part#:RAM-HOL-ZE17-2U UPC:793442935619 Patented
This spring-loaded, form-fit dock allows you to secure and charge the newest models of the Zebra TC5X line, the TC53, and the TC58 with or without the Zebra rugged boot. Features include an integrated stylus holder that snaps your stylus into place while not in use, as well as a standard 1.2m long DC Female cable that delivers charging capabilties. Speaker and mic are fully accessible while the device is docked, and will accommodate the Zebra hand strap. The dock is compatible with RAM® two-hole AMPS pattern diamond bases that will connect to B and C size ball mounts, allowing for a wide variety of mounting options (hardware included).

hardware included

(1) Top Cup Insert
(2) Bottom Cup Insert Options
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nylock Nuts

hole pattern

2-Hole AMPS: 1.912"


High strength composite

packaging type

Poly Bag

input connector

5.5mm DC Connector

input cable length

1.25 Meters


3 year warranty


0.77 lb

Additional Information

Chargers not included. See "Expand Your RAM®" tab to view compatible charging accessories.
