• Spring-loaded form-fit dock perfectly secures the Zebra TC73 and TC78 handheld PC; provides power through 1.25-meter long DC connector
  • Compatible with the Zebra hand strap accessory
  • Compatible with B and C size RAM® 2-hole diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a 3-year warranty

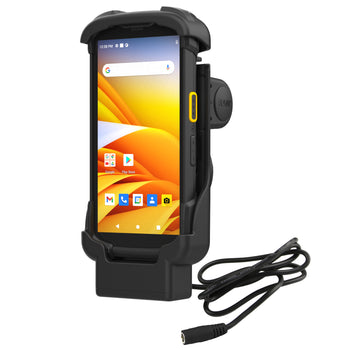

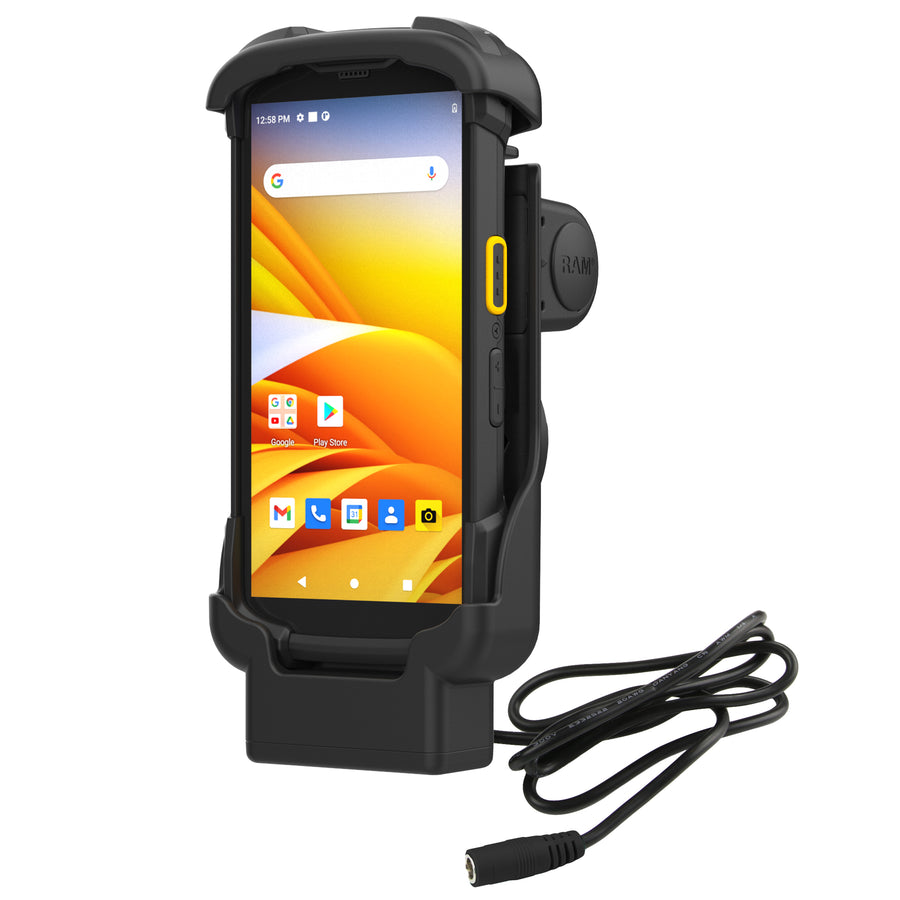

RAM® Form-Fit Powered Dock for Zebra TC73 & TC78
Part#:RAM-HOL-ZE17-1U UPC:793442922244 Patented

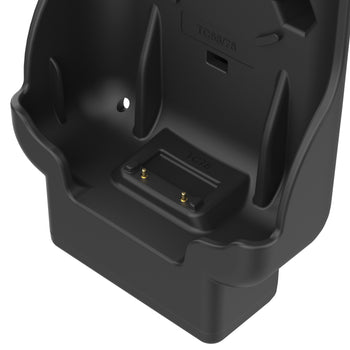

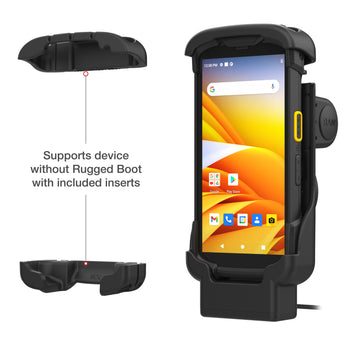

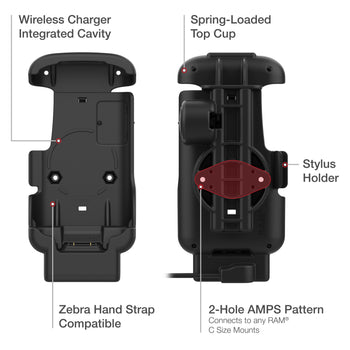

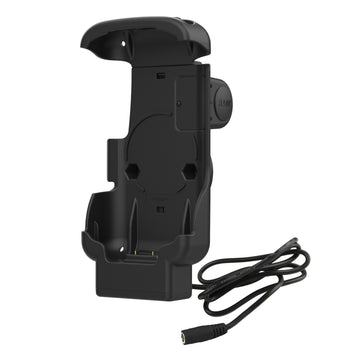

This spring-loaded, form-fit, powered dock (RAM-HOL-ZE17-1U) allows you to secure the Zebra TC73 and the TC78 rugged handheld PC. Power to the device is delivered via a 1.2m long female 5.5mm DC barrel connector. This dock includes an integrated stylus holder that snaps your stylus into place while not in use, and will accommodate the Zebra hand strap. Complete your solution by adding a compatible RAM® two-hole AMPS pattern diamond bases and a B or C size ball mount, allowing for a wide variety of mounting options (hardware included).

hardware included

(2) #8-32 x 3/4" Machine Screws
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nylock Nuts

hole pattern

2-Hole AMPS: 1.912"


High strength composite

packaging type

Poly Bag

input connector

5.5mm DC Connector

input cable length

1.25 Meters


3 year warranty


0.67 lb

Additional Information

Chargers not included. See "Complete Your Solution" tab to view compatible charging accessories.
