Overview

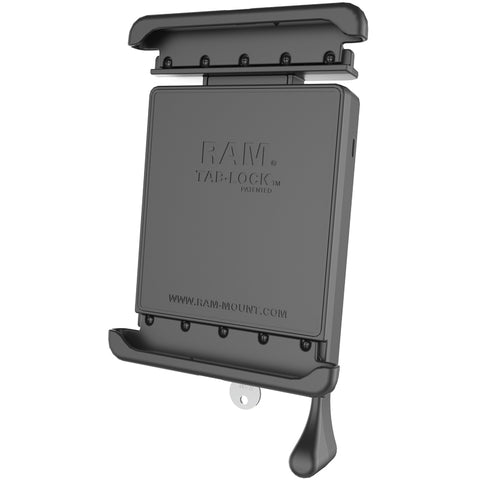

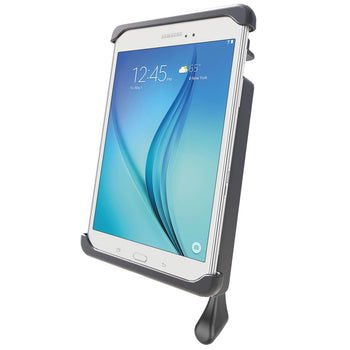

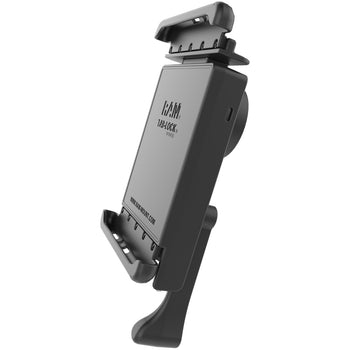

The RAM® Tab-Lock™ spring loaded, quick release cradle with a keyed lock offers a secure fit with easy access to the mounted tablet. The keyed lock offers theft deterrence and unwanted tampering in public settings. The interchangeable cup ends are designed specifically for the Samsung Galaxy Tab A 8.0 and 8.0 with S Pen. The spring loaded design makes it easy to insert and remove your tablet, along with keeping it secure in mobile applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all ports and tablet functions. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern. This RAM® Tab-Lock™ is not compatible with the Samsung Galaxy Tab A 8.0 (2017). For this tablet, see RAM-HOL-TAB24LU. The Tab-Lock™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
Features
- Locking mechanism for theft deterrence
- Support cups contain open slots to accommodate for tablets of various sizes
- Back plate can support various size support cups
- Spring loaded tension provides secure support and quick release for your tablet
- Backed by a lifetime warranty
hardware included:
Assembly Hardware
(2) #8 x 5/8" Sheet Metal Screws
(2) M4 x 32mm Machine Screws
(2) M4 Nylock Nuts
(2) Keys
holder dimensions:
Height Range: 7.88" - 10.38"
Width Range: 4.3" - 5.3"
Depth Range: .37" max
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
materials:
High strength composite
packaging type:
Poly Bag
Weight:
1.22 lb
