Overview

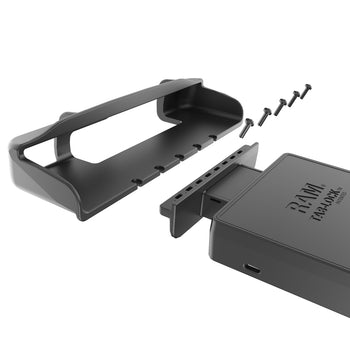

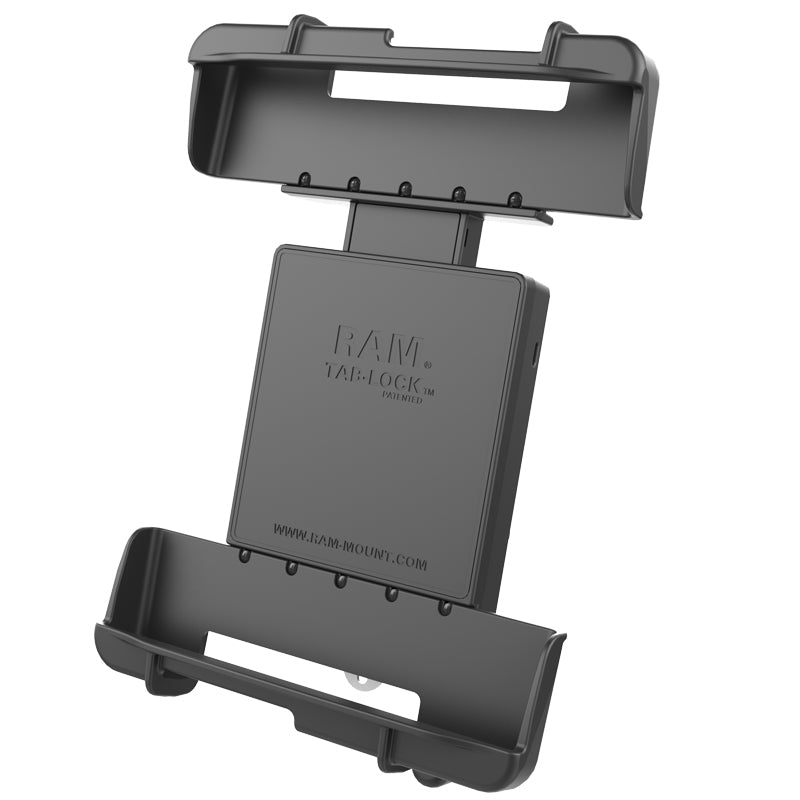

The RAM-HOL-TABL19U consists of a spring loaded back plate, custom support cups and locking mechanism. This spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. Quickly lock the cradle, keeping your tablet secure and safe from theft. The included back plate is interchangeable with various size support cups, making it compatible with numerous tablet models. New detachable support cups are the only components needed for purchase, attach to the back plate for support of your new tablet. If your tablet has an extended battery or handstrap integrated in the back, a set of risers may be required to offset the cups to accommodate the added thickness. The Tab-Lock™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
Features
- Locking mechanism for theft deterrence
- Support cups contain open slots to accommodate for tablets of various sizes
- Back plate can support various size support cups
- Spring loaded tension provides secure support and quick release for your tablet
- Backed by a lifetime warranty
hardware included:
Assembly Hardware
(2) #8 x 5/8" Sheet Metal Screws
(2) M4 x 32mm Machine Screws
(2) M4 Nylock Nuts
(2) Keys
holder dimensions:
Height Range: 10.75" - 13.375"
Width Range: 6.5" - 7.75"
Depth Range: .13" - .93"
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
materials:
High strength composite
packaging type:
Poly Bag
Weight:
1.43 lb
