Patent Pending
RAM® EZ-Roll'r Powered Dock for Samsung XCover6 Pro Without Case
Part#: RAM-HOL-SAM84PU
UPC: 793442901331
$71.99

Overview

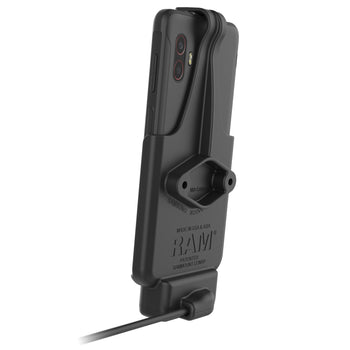

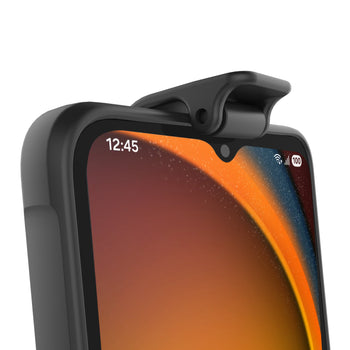

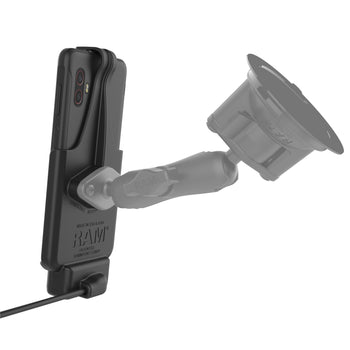

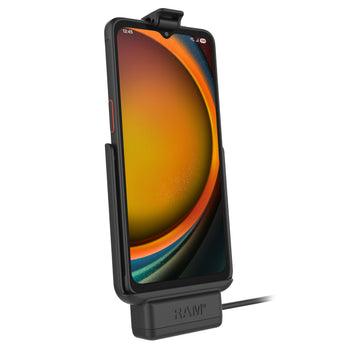

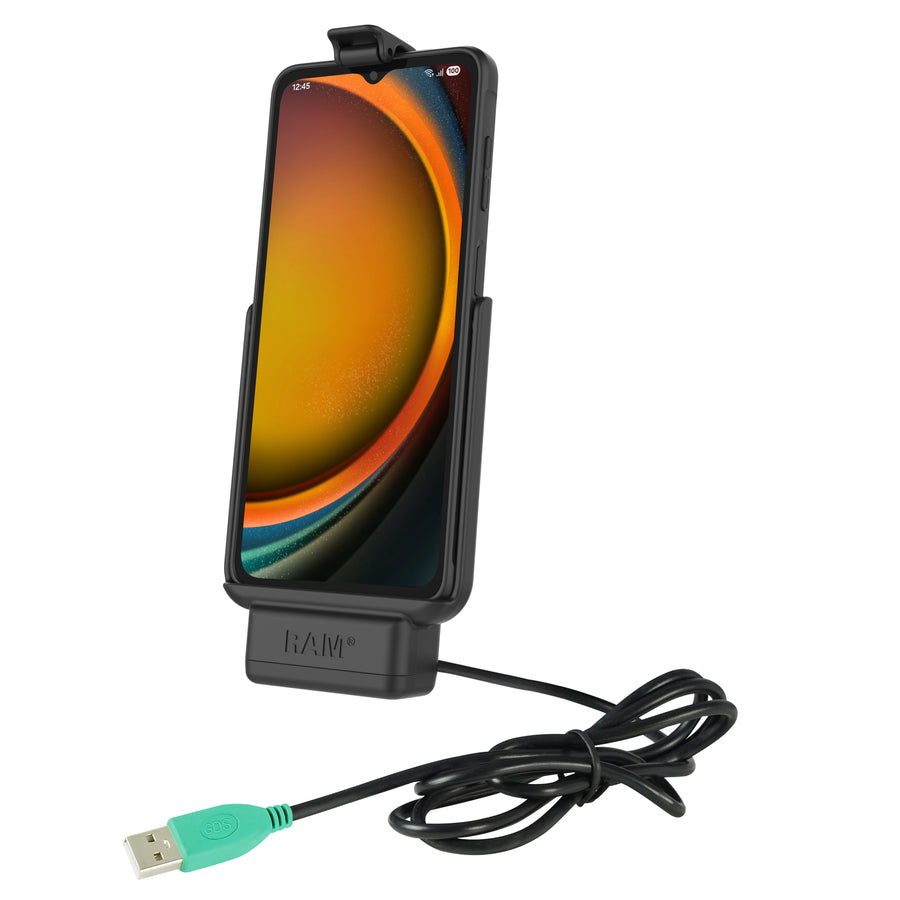

This RAM® EZ-Roll’r powered dock is designed specifically for the Samsung Galaxy XCover6 Pro without a case, and features two integrated pogo pins that provide charging capabilities to the device. While keeping the XCover6 Pro secure, the RAM® EZ-Roll’r powered dock also leaves the device’s buttons and cameras exposed and usable. For mounting, pair the dock with B or C size RAM® diamond ball bases. This powered dock receives power via USB Type-A male pigtail and is compatible with the GDS® 2-port USB cigarette charger as well as the GDS® modular hardwire charger with USB Type-A female connector.

Features

  • Powered dock designed specifically for the Samsung Galaxy XCover6 Pro without a protective case
  • Next gen charging with integrated pogo pin docking contacts that match the XCover6 Pro's pogo pads for a fumble-free charging experience and port-protection
  • 2-hole AMPS hole pattern on the back of the dock to install a B or C Size RAM® diamond ball base
  • Backed by a 3-year warranty

hardware included:

(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nylock Nuts

product dimensions:

Overall Height: 7.75"
Overall Width: 3.38"
Overall Depth: 1.38"

hole pattern:

2-Hole AMPS: 1.912"

materials:

High strength composite

packaging type:

Poly Bag

input connector:

USB Type A Male

input cable length:

1.25 Meters

Warranty:

3 year warranty

Weight:

0.29 lb

Print

Documents

Questions & Answers

Have a Question?

Ask a Question
  • Hello, can the green USB plug be connected to a 5V wall charger? I read elsewhere that input voltage has to be between 8V and 40V DC (I didn't see that here), but if so, a normal 5V charger would not work. I guess this is meant to be connected to a 12V or 24V battery. And in that case, the smartphone is then charged by 5V/2.4A? Please clarify this issue! As an owner of an XCover 6 Pro I need to be 100% sure about this before I buy this dock.

    Yes, a 5VDC wall charger will provide power for the RAM-HOL-SAM84PU.
