Patented & Pats. Pend.

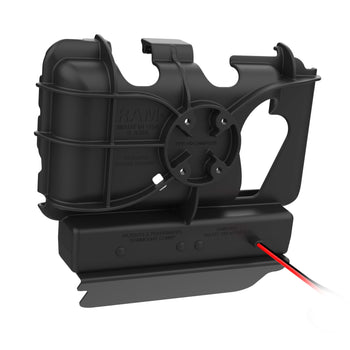

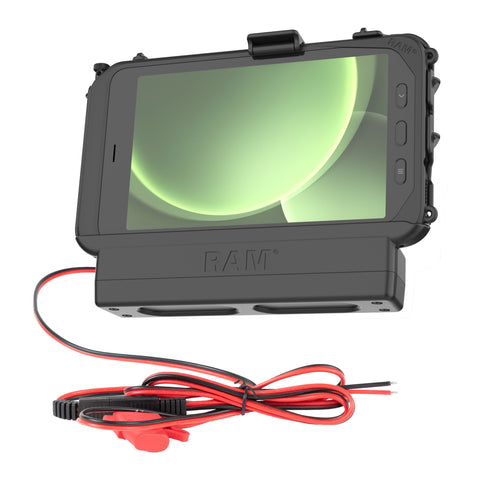

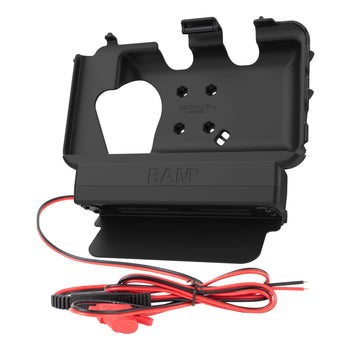

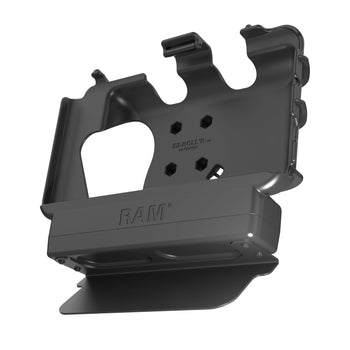

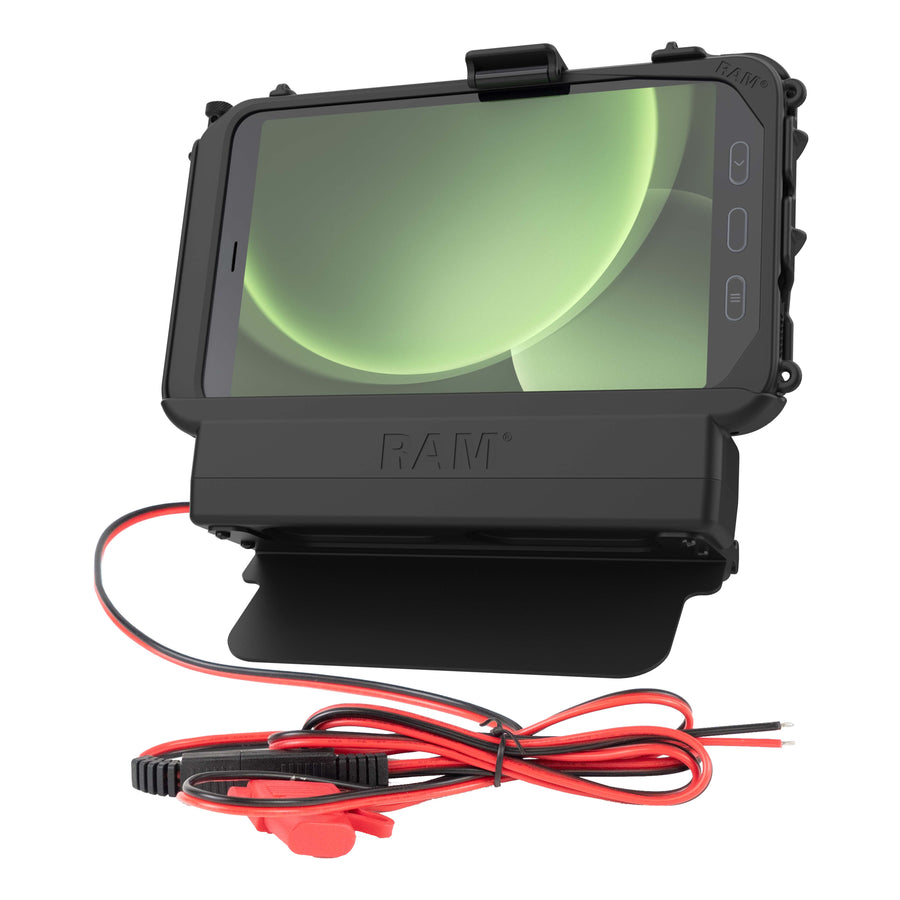

RAM® Powered Dock for Tab Active5 & 3 with Speaker Box
Part#: RAM-HOL-SAM61PU
UPC: 793442014352
$227.99

Overview

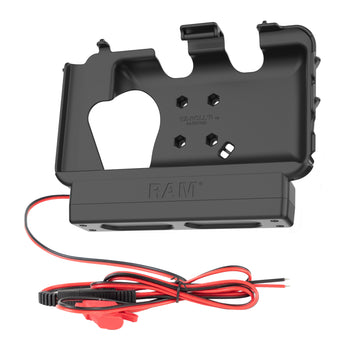

This powered dock for the Samsung Tab Active5, Tab Active3 and 2 retains all the same capabilities as the other RAM® EZ-Roll'r™ powered docks for the Tab Active5/3/2, with an added dual speaker integrated into the bottom of the dock for amplified audio while on the road. Power capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode. Additional cavity in the back of the dock allows room for the GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern.

Features

  • RAM® EZ-Roll'r™ Powered form-fit dock provides charging capabilities for the Samsung Galaxy Tab Active5, Tab Active3 and 2 through integrated pogo pin connector and built-in hardwire charger.

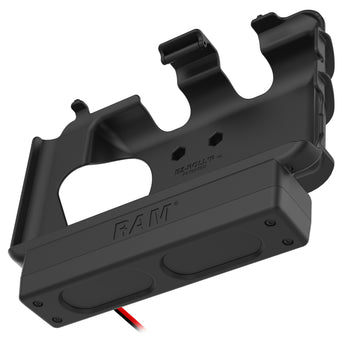

  • Integrated dual speakers on the bottom of the dock for amplified audio
  • Access to speakers, mics, NFC reader and headphone jack remain while device is docked

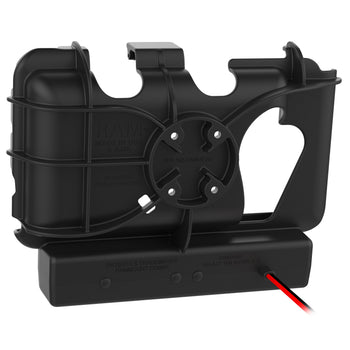

  • Compatible with RAM® 4-hole AMPS pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Backed by a 3-year warranty

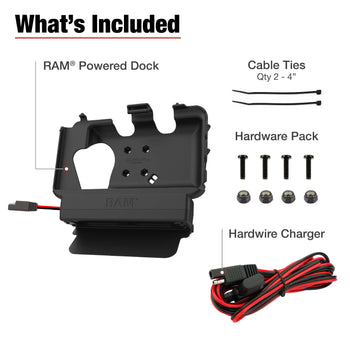

hardware included:

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(2) Small Cable Ties

speaker specifications:

Max volume level: 103dB @ 100mm

hole pattern:

4-Hole AMPS: 1.181" x 1.496"

materials:

High strength composite

packaging type:

Poly Bag

input voltage:

10-28VDC

input connector:

Hardwire Charger with SAE Connector

input cable length:

1.9 Meters

regulatory:

SAE J-1113, Integrated Short Circuit Protection

certifications:

FCC, CE, RoHS, WEEE, E-Mark

Warranty:

3 year warranty

Weight:

1.2 lb

Additional Information:

This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options here.
