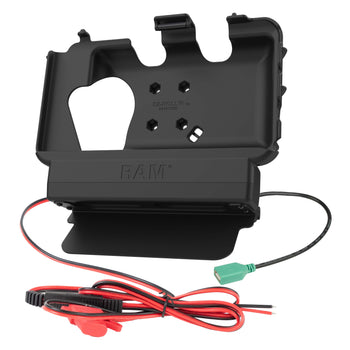

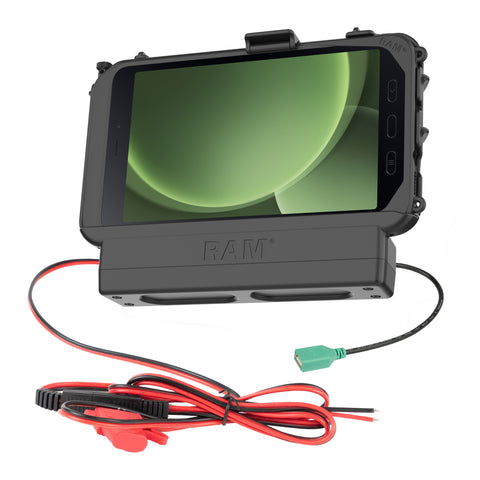

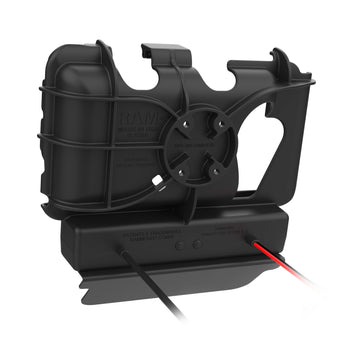

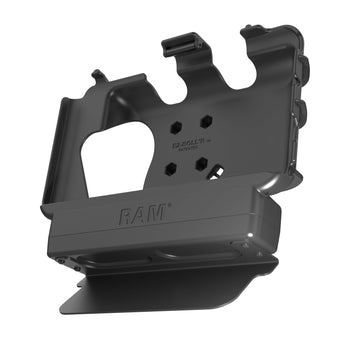

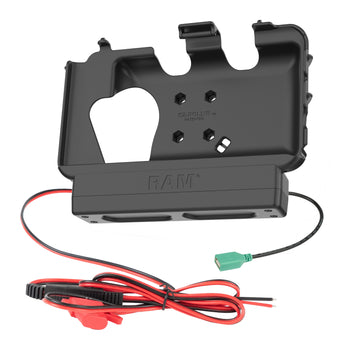

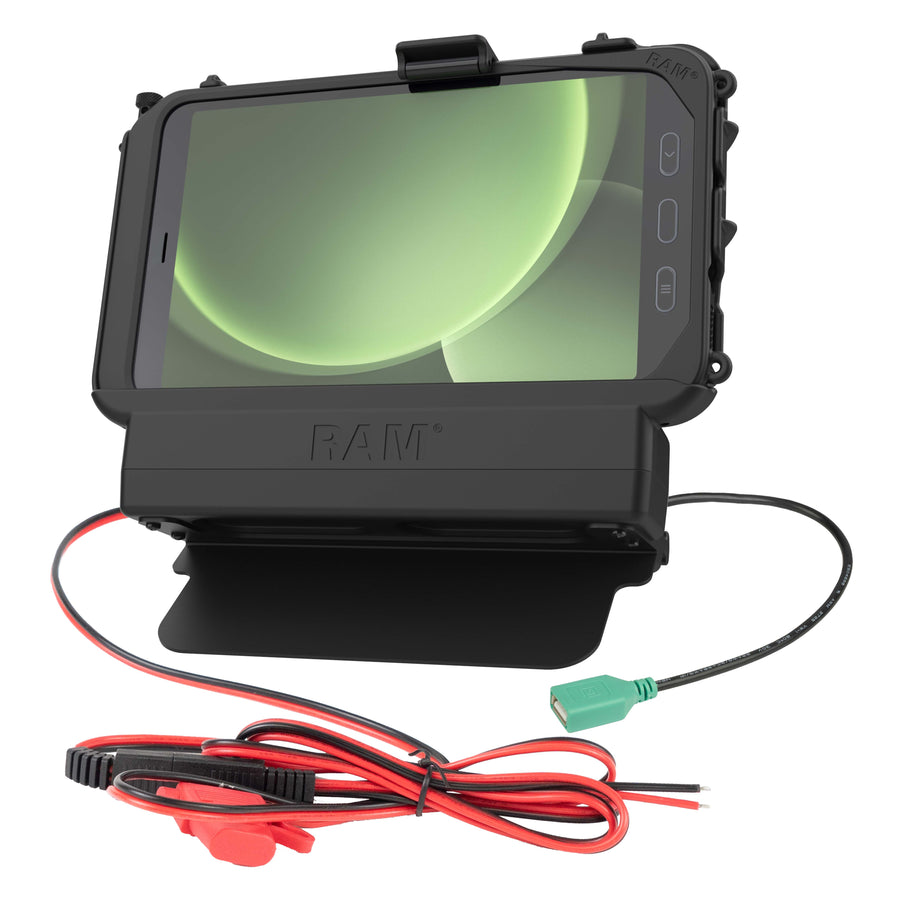

RAM® Power + Data Dock for Tab Active5 & 3 with Speaker Box
$236.49
Power + Single Peripheral
Features
- RAM® EZ-Roll'r™ form-fit powered dock for the Samsung Galaxy Tab Active5, Tab Active3 and 2 provides charging and connects one additional USB peripheral through an integrated pogo pin connector

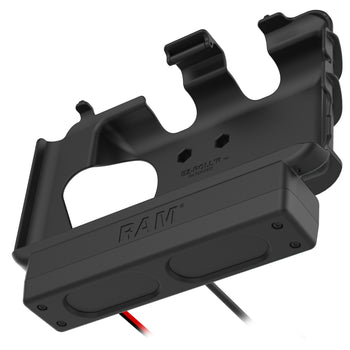

- Integrated dual speakers on the bottom of the dock for amplified audio
- Power delivered via mUSB connector; connect a single input device via USB-A connector

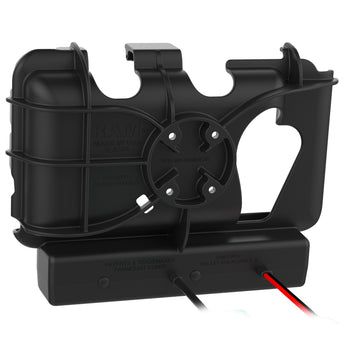

- Compatible with RAM® 4-hole AMPS pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Backed by a 3-year warranty
This powered dock for the Samsung Tab Active5, Tab Active3 and 2 retains all the same capabilities as the other RAM® EZ-Roll'r™ powered docks for the Tab Active5/3/2, with an added dual speaker integrated into the bottom of the dock for amplified audio while on the road. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's USB-A port to support an additional peripheral making this the ideal, compact mounting solution for your mobile workstation. Additional cavity in the back of the dock allows room for the GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern.
RAM® Power + Data Dock for Tab Active5 & 3 with Speaker Box
Overview
This powered dock for the Samsung Tab Active5, Tab Active3 and 2 retains all the same capabilities as the other RAM® EZ-Roll'r™ powered docks for the Tab Active5/3/2, with an added dual speaker integrated into the bottom of the dock for amplified audio while on the road. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's USB-A port to support an additional peripheral making this the ideal, compact mounting solution for your mobile workstation. Additional cavity in the back of the dock allows room for the GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern.

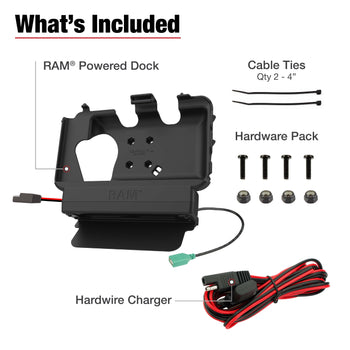

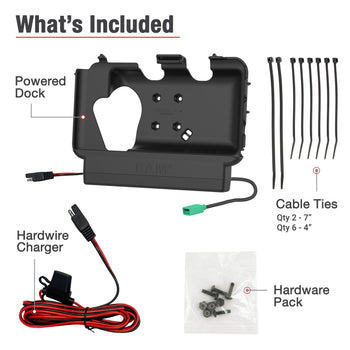

hardware included
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(2) Large Cable Ties
(6) Small Cable Ties
speaker specifications
Max volume level: 103dB @ 100mm
hole pattern
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
input voltage
10-28VDC
input connector
Power: Hardwire Charger with SAE Connector
Data: (1) USB Type A Female
input cable length
1.9 Meters
output connector
USB 1.1 Type A
output cable length
220mm
peripheral output
500mAh
transfer speed
12Mbps
regulatory
SAE J-1113, Integrated Short Circuit Protection
certifications
FCC, CE, RoHS, WEEE, E-Mark
Warranty
3 year warranty
Weight
0.94 lb
Additional Information
This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options here.
