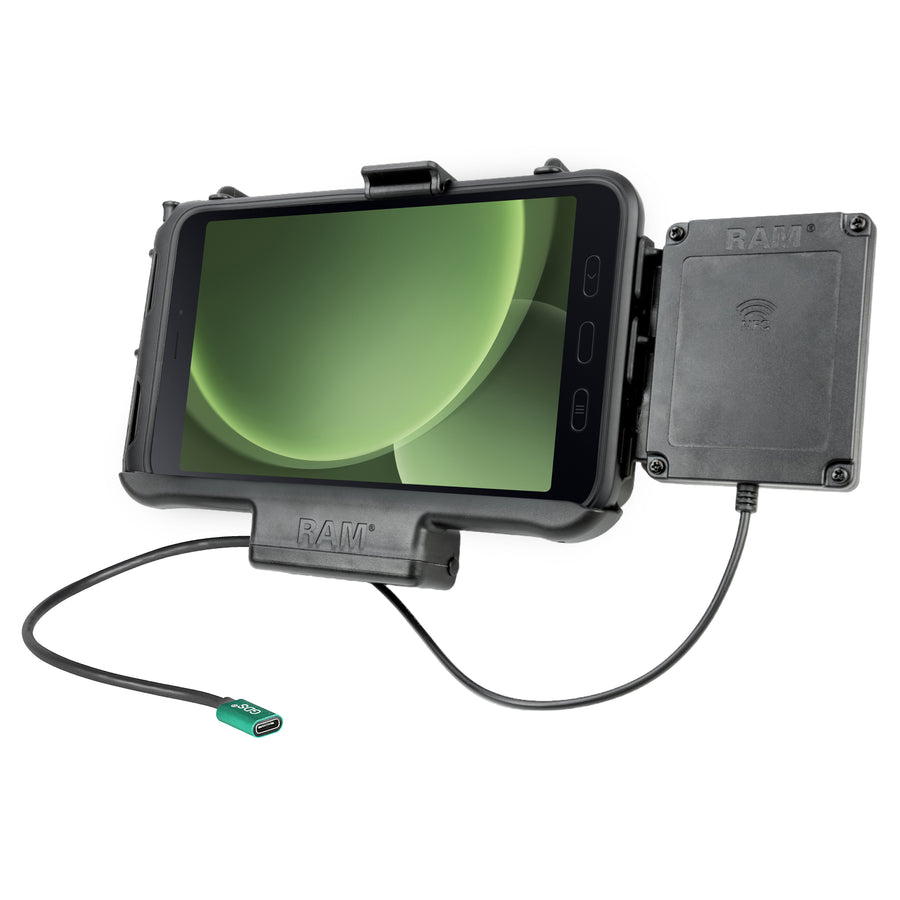

RAM® USB-C Powered Dock with NFC Extender for Samsung Tab Active5 & 3
$194.49
Non-Locking, USB-C
Features
- Form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3 providing power via USB Type-C cable
- Includes NFC repeater extending to 30cm of reach and attaches to the back of select RAM® and GDS® tablet docks
- Supports passage of data to a device from cards, tags, buttons, etc; supports Tap To Pay, asset tracking, time tracking, attendance, and much more
- Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
- Backed by a 3-year warranty
The RAM® USB-C Powered Dock with NFC Extender for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM60CP-NFCU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. The NFC repeater acts as an extension of the NFC reader on the back of the Tab Active5 & 3 giving end users easier access to the scanning function. With easier access to the NFC reader, tablet operators no longer need to remove the device from it's docking station to scan — simply install the repeater on your docking station and give easy access to programs like Tap To Pay, asset tracking, time management, and more. The repeater extends to 30cm in length and installs on the back of the dock, directly behind the device's NFC reader. Power capabilities through the dock are provided to the device through pogo pin technology, taking advantage of the Tab Active5 & 3's pogo pad docking contacts—simply dock the device and the pogo pins match the pattern of the pogo pads for a seamless charging experience. This dock is also compatible with the RAM® Skin™ or factory device skin, as well as GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. Cable clamps and zip ties are also included for cable rentention.
RAM® USB-C Powered Dock with NFC Extender for Samsung Tab Active5 & 3
Overview
The RAM® USB-C Powered Dock with NFC Extender for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM60CP-NFCU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. The NFC repeater acts as an extension of the NFC reader on the back of the Tab Active5 & 3 giving end users easier access to the scanning function. With easier access to the NFC reader, tablet operators no longer need to remove the device from it's docking station to scan — simply install the repeater on your docking station and give easy access to programs like Tap To Pay, asset tracking, time management, and more. The repeater extends to 30cm in length and installs on the back of the dock, directly behind the device's NFC reader. Power capabilities through the dock are provided to the device through pogo pin technology, taking advantage of the Tab Active5 & 3's pogo pad docking contacts—simply dock the device and the pogo pins match the pattern of the pogo pads for a seamless charging experience. This dock is also compatible with the RAM® Skin™ or factory device skin, as well as GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. Cable clamps and zip ties are also included for cable rentention.
hardware included
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Cable Clamp
(2) Large Cable Ties
(5) Small Cable Ties
(1) NFC Repeater Extension Kit
product dimensions
Width: 9.24"
Height: 6.34"
Depth: 2.57"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
input voltage
5.3-5.4VDC
output voltage
5VDC
power output
500mA
input connector
USB Type-C Female
input cable length
215mm
Warranty
3 year warranty
Weight
1.14 lb
