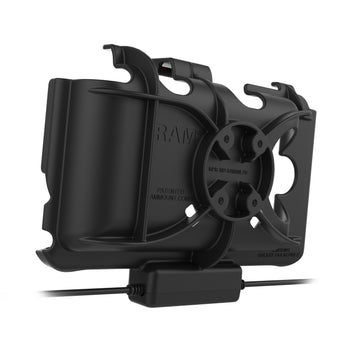

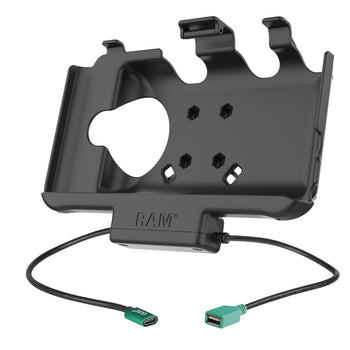

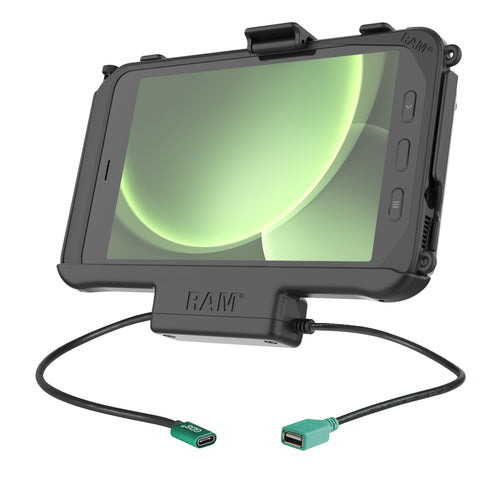

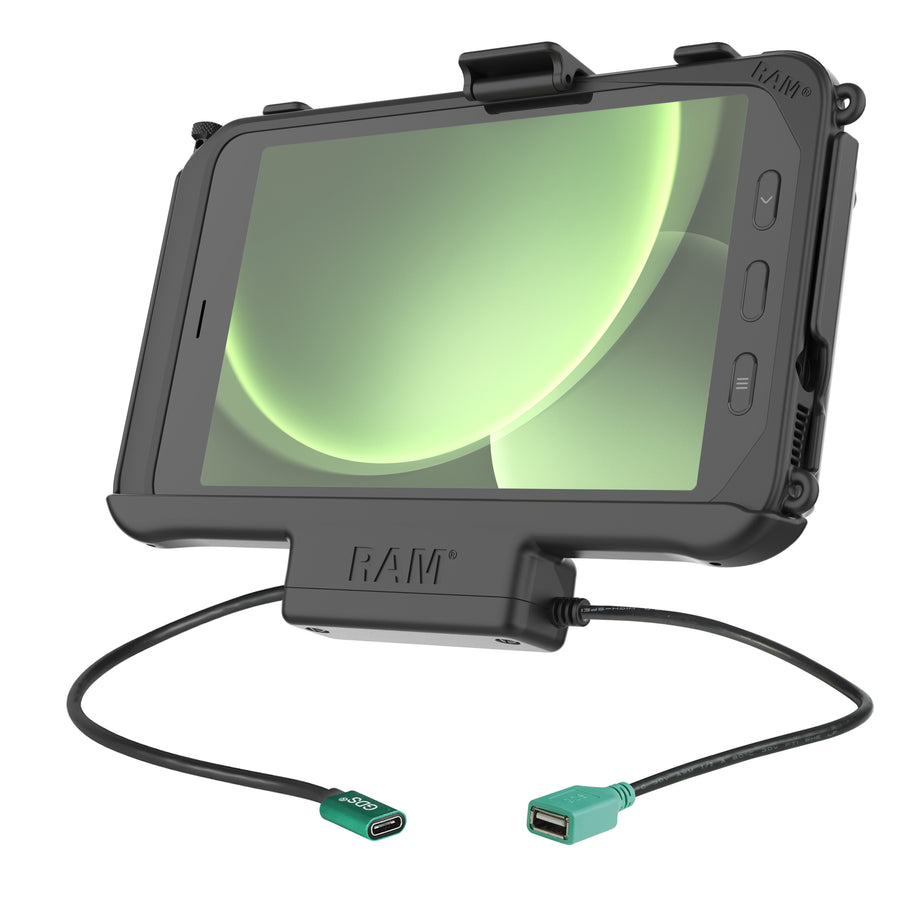

RAM® EZ-Roll'r™ Power + Data Dock Samsung Tab Active5 & 3
$87.99
USB-C Power, USB-A Peripheral
Features
- RAM® EZ-Roll'r™ form-fit powered dock for the Samsung Galaxy Tab Active5, Tab Active3 and 2 provides charging and connects one additional USB peripheral through an integrated pogo pin connector
- Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
- Power delivered via USB-C connector; connect a single input device via USB-A connector
- Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
- Backed by a 3-year warranty
This RAM® EZ-Roll’r™ power cradle for the Samsung Tab Active5, Tab Active3 and 2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's USB-A port to support an additional peripheral making this the ideal, compact mounting solution for your mobile workstation. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal 4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS® Hand-Stand™ attachment so you can easily take your Tab Active5, 3 & 2 from your vehicle, to your person, to your desk with zero hassle.
RAM® EZ-Roll'r™ Power + Data Dock Samsung Tab Active5 & 3
Overview
This RAM® EZ-Roll’r™ power cradle for the Samsung Tab Active5, Tab Active3 and 2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's USB-A port to support an additional peripheral making this the ideal, compact mounting solution for your mobile workstation. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal 4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS® Hand-Stand™ attachment so you can easily take your Tab Active5, 3 & 2 from your vehicle, to your person, to your desk with zero hassle.

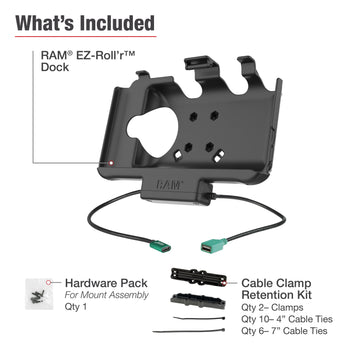

hardware included
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(2) Optional Cable Clamp Housings
(6) Large Cable Ties
(10) Small Cable Ties
product dimensions
Width: 9.24"
Height: 6.34"
Depth: 2.57"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
input voltage
5.3-5.4VDC
output voltage
5VDC
power output
500mA
input connector
USB Type-C Female
input cable length
250mm
output connector
USB 1.1 Type A
output cable length
250mm
peripheral output
500mAh
transfer speed
12Mbps
Warranty
3 year warranty
Weight
0.71 lb
Additional Information
This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options here.
