Patented & Pats. Pend.

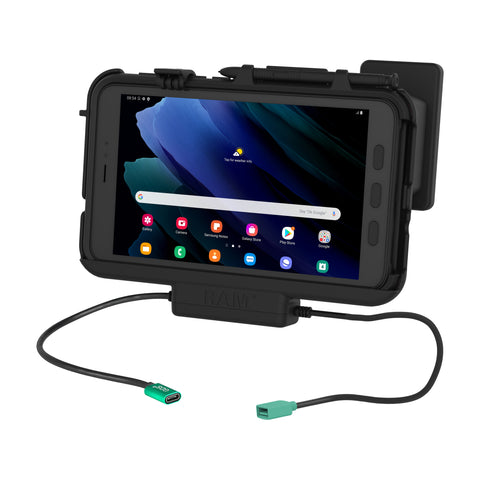

RAM® Power + Data Dock for Tab Active3 with OtterBox uniVERSE
Part#: RAM-HOL-SAM60CP-1A-OT1U
UPC: 793442021909
$107.99

Overview

This powered dock for the Samsung Tab Active3 wrapped in an OtterBox uniVERSE case has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this dock's USB-A port to support an additional peripheral making this the ideal, compact mounting solution for your mobile workstation. This dock also includes and integrated OtterBox uniVERSE accessory holder on the back of the holder to accommodate any accessory with a uniVERSE module. Additional cavity in the back of the dock allows room for the GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. Also included is the USB-C female pigtail, cable clamp, and zip ties.

Features

  • RAM® EZ-Roll'r™ form-fit powered dock for the Samsung Galaxy Tab Active3 wrapped in an OtterBox uniVERSE case provides charging and connects one additional USB peripheral through an integrated pogo pin connector
  • Power delivered via USB-C connector; connect a single input device via USB-A connector
  • Accommodates OtterBox uniVERSE Module Hand & Neck Strap attachments and NFC reader while devices are docked
  • Compatible with B and C size RAM® 4-hole AMPS pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Backed by a 3-year warranty

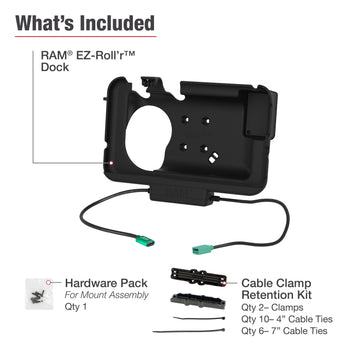

hardware included:

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(5) Small Cable Ties

hole pattern:

4-Hole AMPS: 1.181" x 1.496"

materials:

High strength composite

packaging type:

Poly Bag

input voltage:

5.3-5.4VDC

output voltage:

5VDC

power output:

500mA

input connector:

USB Type-C Female

input cable length:

250mm

output connector:

USB 1.1 Type A

output cable length:

250mm

peripheral output:

500mAh

transfer speed:

12Mbps

Warranty:

3 year warranty

Weight:

0.77 lb

Additional Information:

This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options here.
