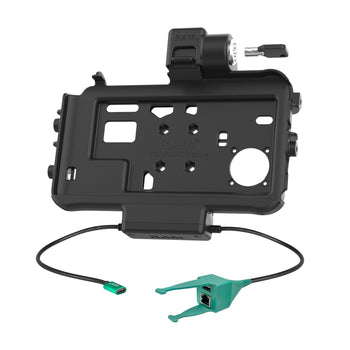

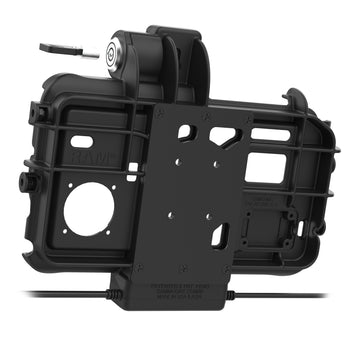

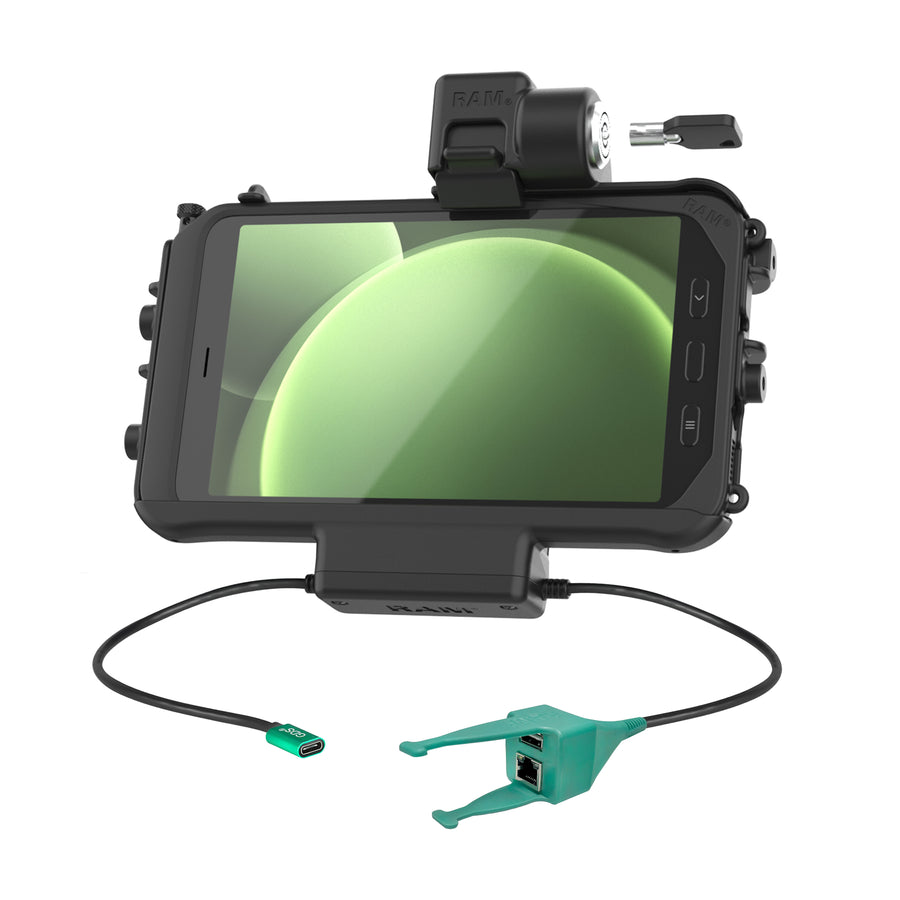

RAM® USB-C Low-Profile Dock + USB-A & RJ45 Data for Tab Active5 & 3 | |
---|---|
Part #:
RAM-HOL-SAM58CPKLT-RJ45AU
UPC:
793442019661
Patented & Pats. Pend.
Features
|
![]() |
Product Information | |
---|---|

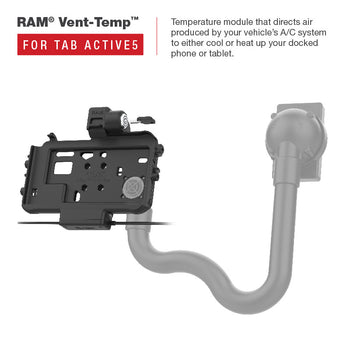

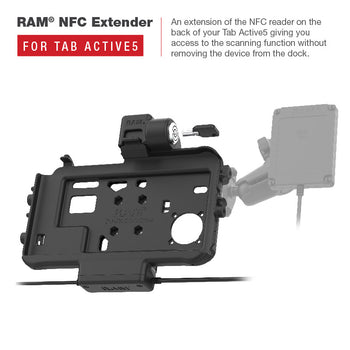

Overview | The RAM® USB-C Low-Profile Dock + USB-A & RJ45 Data for Tab Active5 & 3 (RAM-HOL-SAM58CPKLT-RJ45AU) offers a slim profile at 2.28" in depth with a metal reinforcement plate for a smaller footprint. Power capabilities from the dock are provided to the device through pogo pin technology and integrated USB-C cable, taking advantage of the Tab Active5 & 3's pogo pad docking contacts—simply dock the device for a seamless charging experience. Add one peripheral and maintain a secure inernet connection with the built-in dual USB Type-A and RJ45 (ethernet) cord. This modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: RAM® Vent-Temp™, RAM® NFC Extender, and side accessory attachments such as a phone mount or barcode scanner. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern and one cable clamp with zip ties for cable management. |
Specifications | |
---|---|
hardware included | (2) Keys (4) #8-32 x 5/8" Machine Screws (4) #8-32 Nylock Nuts (1) Optional Cable Clamp Housing (2) Large Cable Ties (6) Small Cable Ties |
hole pattern | 4-Hole AMPS: 1.181" x 1.496" |
materials | High strength composite |
packaging type | Poly Bag |
input voltage | 5.3-5.4VDC |
output voltage | 5VDC |
power output | 500mA |
input connector | USB Type-C Female |
input cable length | 215mm |
output connector | (1) USB-A Female (1) RJ45 |
output cable length | 215mm |
peripheral output | 900mAh |
transfer speed | 480Mbps |
Warranty | 3 year warranty |
Weight | 1.44 lb |
Additional Information | This dock is not compatible with the GDS® Hand-Stand™, RAM® Temp-Right™, or GDS® Roto-Mag™. |
Compatible Devices
Samsung
Tab Active3
Tab Active5
Compatible Devices
Samsung
Tab Active3
Tab Active5

Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAM-HOL-SAM58CPKLT-RJ45AU!
We'll email you once the item is available.
Overview
The RAM® USB-C Low-Profile Dock + USB-A & RJ45 Data for Tab Active5 & 3 (RAM-HOL-SAM58CPKLT-RJ45AU) offers a slim profile at 2.28" in depth with a metal reinforcement plate for a smaller footprint. Power capabilities from the dock are provided to the device through pogo pin technology and integrated USB-C cable, taking advantage of the Tab Active5 & 3's pogo pad docking contacts—simply dock the device for a seamless charging experience. Add one peripheral and maintain a secure inernet connection with the built-in dual USB Type-A and RJ45 (ethernet) cord. This modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: RAM® Vent-Temp™, RAM® NFC Extender, and side accessory attachments such as a phone mount or barcode scanner. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern and one cable clamp with zip ties for cable management.
Features

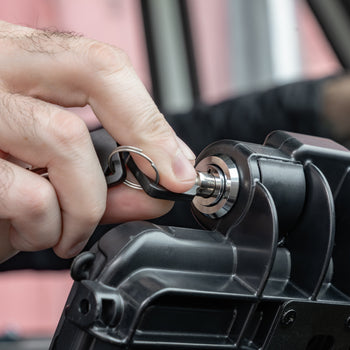

- Key-locking form-fit power + data sync dock designed specifically for the Samsung Galaxy Tab Active5 & 3 wrapped in a Samsung OEM protective case or RAM® Skin™
- Slim-profile design at 2.28" depth with metal reinforcement plate

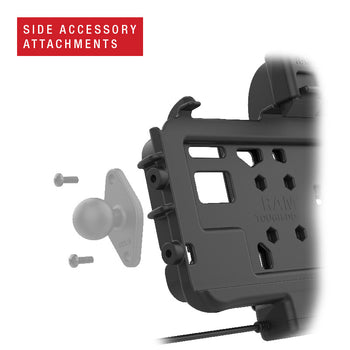

- Compatible with most RAM® dock accessories including RAM® Vent-Temp™, RAM® NFC Extender, and side accessory attachments
- Power delivered via USB-C connector; connect up to one input device and ethernet via dual USB-A and RJ45 connector
- Backed by a 3-year warranty
hardware included:
(2) Keys
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(6) Small Cable Ties
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
materials:
High strength composite
packaging type:
Poly Bag
input voltage:
5.3-5.4VDC
output voltage:
5VDC
power output:
500mA
input connector:
USB Type-C Female
input cable length:
215mm
output connector:
(1) USB-A Female
(1) RJ45
output cable length:
215mm
peripheral output:
900mAh
transfer speed:
480Mbps
Warranty:
3 year warranty
Weight:
1.44 lb
Additional Information:
This dock is not compatible with the GDS® Hand-Stand™, RAM® Temp-Right™, or GDS® Roto-Mag™.
