RAM® Low-Profile Locking Power + Single USB Dock for Tab Active5 & 3 | |
---|---|
Part #:
RAM-HOL-SAM58CPKLT-AU
UPC:
793442019524
Patented & Pats. Pend.
Features
|
![]() |
Product Information | |
---|---|

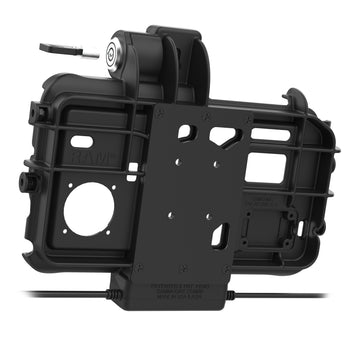

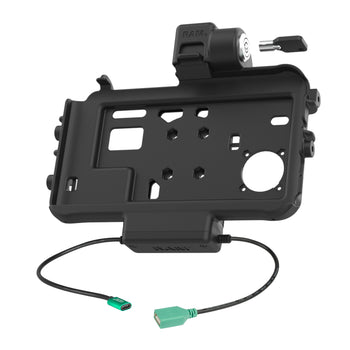

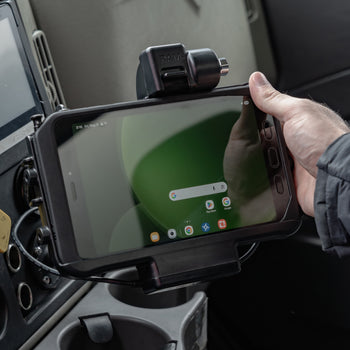

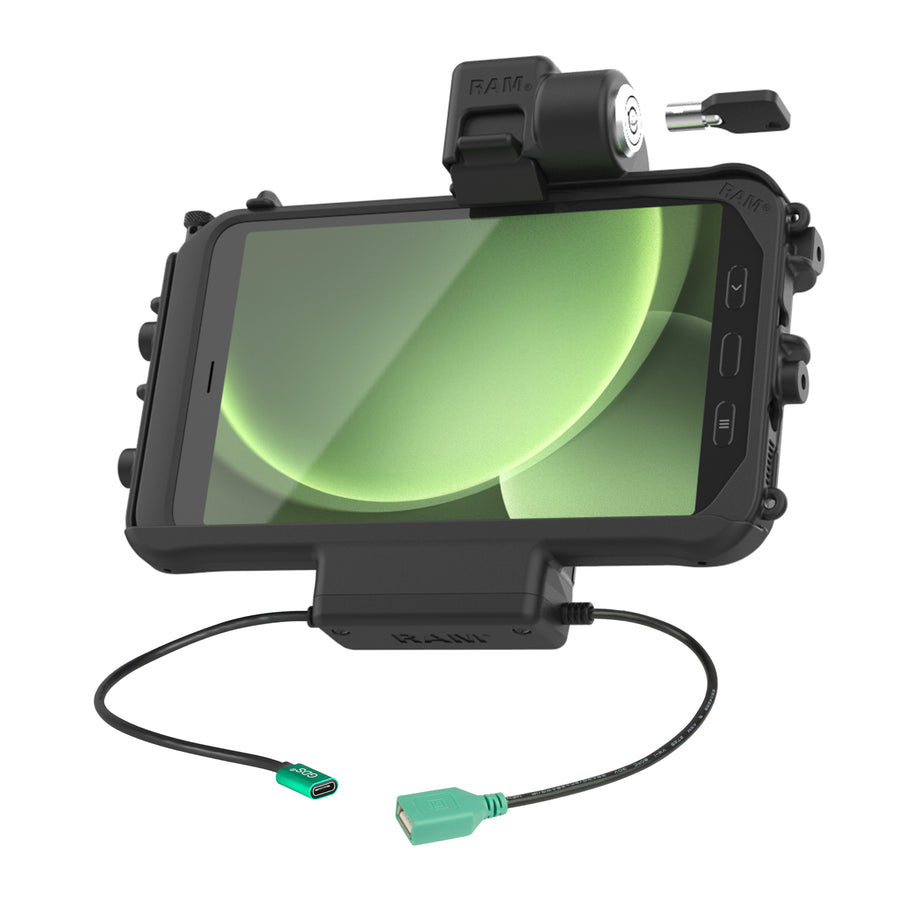

Overview | The low-profile RAM® Power + Data Dock for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM58CPKLT-AU) offers a slim profile at 2.28" in depth with a metal reinforcement plate for a smaller footprint. Power capabilities from the dock are provided to the device through pogo pin technology and integrated USB-C cable, taking advantage of the Tab Active5 & 3's pogo pad docking contacts—simply dock the device for a seamless charging experience. Add a peripheral with the built-in USB Type-A cord and connect a keyboard, barcode scanner, printer, and more. This modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: RAM® Vent-Temp™, RAM® NFC Extender, and side accessory attachments such as a phone mount or barcode scanner. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. Also included is a cable clamp and zip ties for cable management. |
Specifications | |
---|---|
hardware included | (2) Keys (4) #8-32 x 5/8" Machine Screws (4) #8-32 Nylock Nuts (2) Optional Cable Clamp Housings (4) Large Cable Ties (10) Small Cable Ties |
hole pattern | 4-Hole AMPS: 1.181" x 1.496" |
materials | High strength composite |
packaging type | Poly Bag |
input voltage | 5.3-5.4VDC |
output voltage | 5VDC |
power output | 500mA |
input connector | USB Type-C Female |
input cable length | 250mm |
output connector | USB 1.1 Type A |
output cable length | 250mm |
peripheral output | 500mAh |
transfer speed | 12Mbps |
Warranty | 3 year warranty |
Weight | 1.39 lb |
Additional Information | This dock is not compatible with the GDS® Hand-Stand™, RAM® Temp-Right™, or GDS® Roto-Mag™. |
Compatible Devices
Samsung
Tab Active3
Tab Active5
Compatible Devices
Samsung
Tab Active3
Tab Active5

Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAM-HOL-SAM58CPKLT-AU!
We'll email you once the item is available.
Overview
The low-profile RAM® Power + Data Dock for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM58CPKLT-AU) offers a slim profile at 2.28" in depth with a metal reinforcement plate for a smaller footprint. Power capabilities from the dock are provided to the device through pogo pin technology and integrated USB-C cable, taking advantage of the Tab Active5 & 3's pogo pad docking contacts—simply dock the device for a seamless charging experience. Add a peripheral with the built-in USB Type-A cord and connect a keyboard, barcode scanner, printer, and more. This modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: RAM® Vent-Temp™, RAM® NFC Extender, and side accessory attachments such as a phone mount or barcode scanner. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. Also included is a cable clamp and zip ties for cable management.
Features

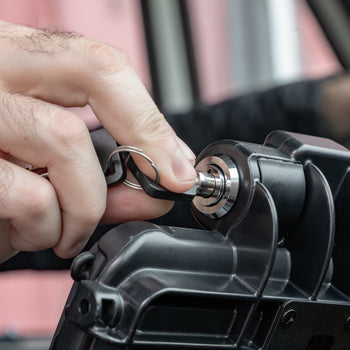

- Key-locking form-fit power + data sync dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3 wrapped in a Samsung OEM protective case or RAM® Skin™
- Slim-profile design at 2.28" depth with metal reinforcement plate

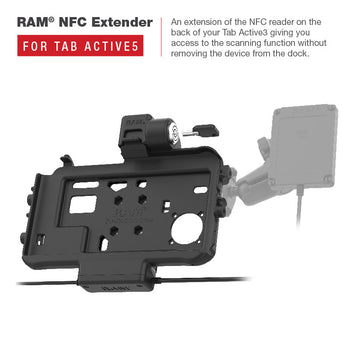

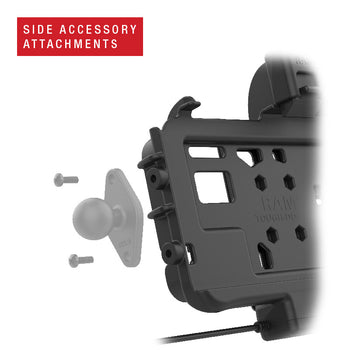

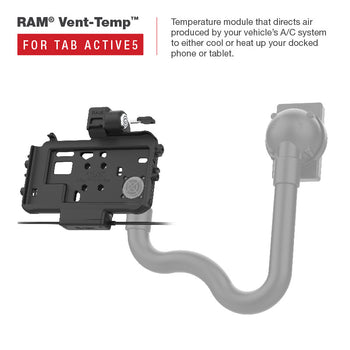

- Compatible with most RAM® dock accessories including RAM® Vent-Temp™, RAM® NFC Extender, and side accessory attachments
- Power delivered via USB-C connector; connect a single input device via USB-A connector
- Backed by a 3-year warranty
hardware included:
(2) Keys
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(2) Optional Cable Clamp Housings
(4) Large Cable Ties
(10) Small Cable Ties
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
materials:
High strength composite
packaging type:
Poly Bag
input voltage:
5.3-5.4VDC
output voltage:
5VDC
power output:
500mA
input connector:
USB Type-C Female
input cable length:
250mm
output connector:
USB 1.1 Type A
output cable length:
250mm
peripheral output:
500mAh
transfer speed:
12Mbps
Warranty:
3 year warranty
Weight:
1.39 lb
Additional Information:
This dock is not compatible with the GDS® Hand-Stand™, RAM® Temp-Right™, or GDS® Roto-Mag™.
