Overview

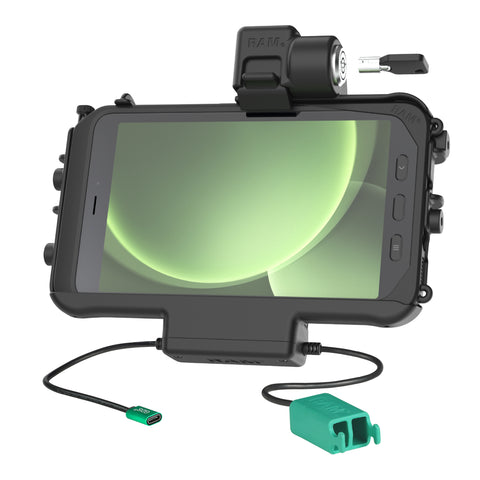

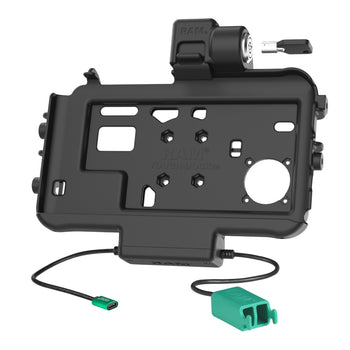

The RAM® Thin-Dock™ Power + Data Dock for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM58CPKLT-2AU) offers a slim profile at 2.28" in depth with a metal reinforcement plate for a smaller footprint. Power capabilities from the dock are provided to the device through pogo pin technology and integrated USB-C cable, taking advantage of the Tab Active5 & 3's pogo pad docking contacts—simply dock the device for a seamless charging experience. Add up to two peripherals with the built-in dual USB Type-A cord and connect a keyboard, barcode scanner, printer, and more. This modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: RAM® Vent-Temp™, RAM® NFC Extender, and side accessory attachments such as a phone mount or barcode scanner. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. Also included is an USB-C to USB Type-A extension cord, cable clamp, and zip ties for cable management.
Features
- Key-locking form-fit power + data sync dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3 wrapped in a Samsung OEM protective case or RAM® Skin™

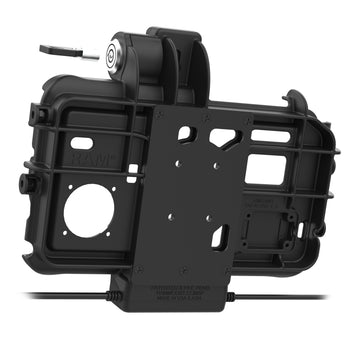

- Slim-profile design at 2.28" depth with metal reinforcement plate

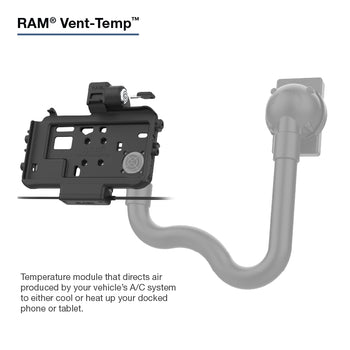

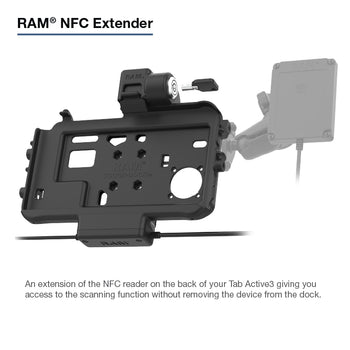

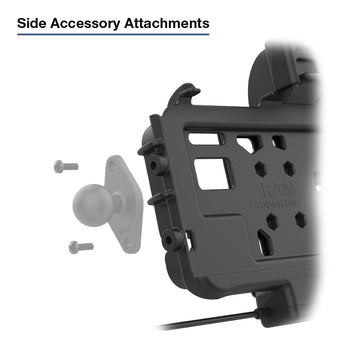

- Compatible with most RAM® dock accessories including RAM® Vent-Temp™, RAM® NFC Extender, and side accessory attachments
- Power delivered via USB-C connector; connect up to 2 input devices via dual USB-A connector
- Backed by a 3-year warranty
hardware included:
(2) Keys
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nyloc Nuts
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(8) Small Cable Ties
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
materials:
High strength composite
packaging type:
Poly Bag
input voltage:
5.3-5.4VDC
output voltage:
5VDC
power output:
500mA
input connector:
USB Type-C Female
input cable length:
220mm
output connector:
(2) USB 1.1 Type A
output cable length:
190mm
peripheral output:
500mA
transfer speed:
12Mbps
Warranty:
3 year warranty
Weight:
1.45 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
