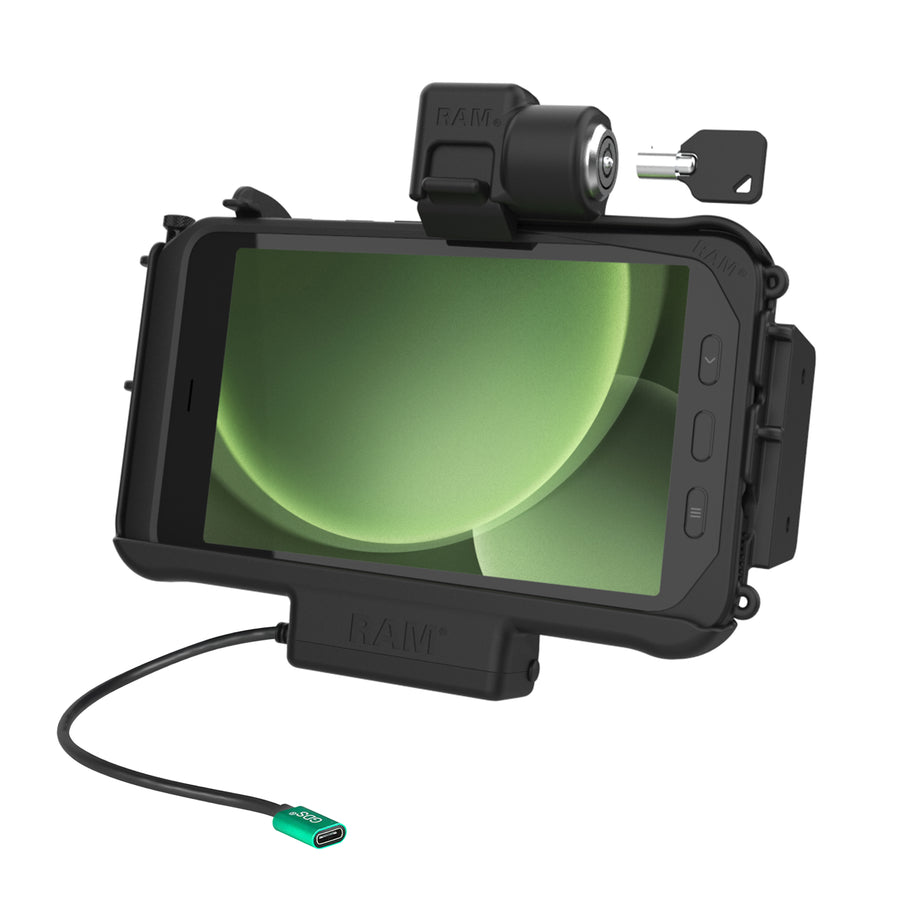

RAM® Locking Modular USB-C Powered Dock for Samsung Tab Active5 & 3 | |
---|---|
Part #:
RAM-HOL-SAM58CPKLNU
UPC:
793442021602
Patent Pending
Features
|
![]() |
Product Information | |
---|---|

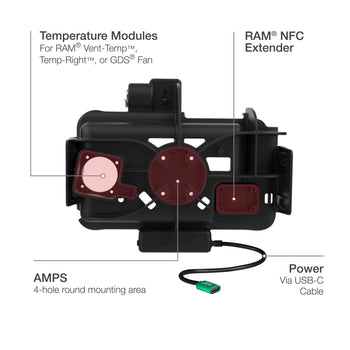

Overview | The RAM® Locking Modular Powered Dock for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM58CPKLNU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power capabilities through the dock are provided to the device through pogo pin technology, taking advantage of the Tab Active5 & 3's pogo pad docking contacts—simply dock the device for a seamless charging experience. This key-locking modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: Temperature Control Accessories, RAM® NFC Extender, and side bracket accessory attachments. Modular docks are not compatible with the GDS® Hand-Stand™ but are compatible with the GDS® Roto-Mag™. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. |
Specifications | |
---|---|

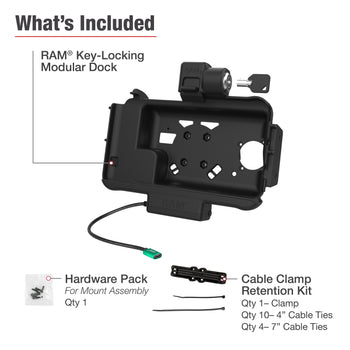

hardware included | (2) Keys (4) #8-32 x 5/8" Machine Screws (4) #8-32 Nylock Nuts (1) Optional Cable Clamp Housing (2) Large Cable Ties (6) Small Cable Ties |
hole pattern | 4-Hole AMPS: 1.181" x 1.496" |
materials | High strength composite |
packaging type | Poly Bag |
input voltage | 5.3-5.4VDC |
output voltage | 5VDC |
power output | 500mA |
input connector | USB Type-C Female |
input cable length | 215mm |
Warranty | 3 year warranty |
Weight | 1.04 lb |
Additional Information | This dock is not compatible with the GDS® Hand-Stand™. |
Compatible Devices
Samsung
Tab Active3
Tab Active5
Compatible Devices
Samsung
Tab Active3
Tab Active5

Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAM-HOL-SAM58CPKLNU!
We'll email you once the item is available.
Overview
The RAM® Locking Modular Powered Dock for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM58CPKLNU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power capabilities through the dock are provided to the device through pogo pin technology, taking advantage of the Tab Active5 & 3's pogo pad docking contacts—simply dock the device for a seamless charging experience. This key-locking modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: Temperature Control Accessories, RAM® NFC Extender, and side bracket accessory attachments. Modular docks are not compatible with the GDS® Hand-Stand™ but are compatible with the GDS® Roto-Mag™. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern.
Features
- Key-locking form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3; provides charging through an integrated pogo pin connection and USB-C cable
- Compatible with most RAM® dock accessories including Temperature Control Accessories, RAM® NFC Extender, GDS® Roto-Mag™, and side accessory attachments
- Compatible with the Samsung OEM skin as well as the RAM® Skin™
- Backed by a 3-year warranty
hardware included:
(2) Keys
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(6) Small Cable Ties
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
materials:
High strength composite
packaging type:
Poly Bag
input voltage:
5.3-5.4VDC
output voltage:
5VDC
power output:
500mA
input connector:
USB Type-C Female
input cable length:
215mm
Warranty:
3 year warranty
Weight:
1.04 lb
Additional Information:
This dock is not compatible with the GDS® Hand-Stand™.
