RAM® Locking USB-C Modular Dock + USB-C & USB-A Data for Tab Active5 & 3 | |
---|---|
Part #:
RAM-HOL-SAM58CPKLN-CAU
UPC:
793442018794
Patented & Pats. Pend.
Features
|
![]() |
Product Information | |
---|---|
Overview | The RAM® Locking USB-C Modular Dock + USB-C & USB-A Data for Tab Active5 & Tab Active3 (RAM-HOL-SAM58CPKLN-CAU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's dual USB port to support up to two additional peripherals, making this the ideal, compact mounting solution for your mobile workstation. This key-locking modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: Temperature Control Accessories, RAM® NFC Extender, and side bracket accessory attachments. Modular docks are not compatible with the GDS® Hand-Stand™ but are compatible with the GDS® Roto-Mag™. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. Also included is the USB Type-C female pigtail, cable clamp, and zip ties. |
Specifications | |
---|---|
hardware included | (4) #8-32 x 5/8" Machine Screws (4) #8-32 Nylock Nuts (1) Cable Clamp (2) Large Cable Ties (8) Small Cable Ties |
hole pattern | 4-Hole AMPS: 1.181" x 1.496" |
materials | High strength composite |
packaging type | Poly Bag |
input voltage | 5.3-5.4VDC |
output voltage | 5VDC |
power output | 500mA |
input connector | USB Type-C Female |
input cable length | 215mm |
output connector | (1) USB-C Female (1)USB-A Female |
output cable length | 215mm |
peripheral output | 900mAh (per port) |
transfer speed | 480Mbps |
Warranty | 3 year warranty |
Weight | 1.33 lb |
Additional Information | This dock is not compatible with the GDS® Hand-Stand™. |
Compatible Devices
Samsung
Tab Active3
Tab Active5
Compatible Devices
Samsung
Tab Active3
Tab Active5

Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAM-HOL-SAM58CPKLN-CAU!
We'll email you once the item is available.
Overview
The RAM® Locking USB-C Modular Dock + USB-C & USB-A Data for Tab Active5 & Tab Active3 (RAM-HOL-SAM58CPKLN-CAU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's dual USB port to support up to two additional peripherals, making this the ideal, compact mounting solution for your mobile workstation. This key-locking modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: Temperature Control Accessories, RAM® NFC Extender, and side bracket accessory attachments. Modular docks are not compatible with the GDS® Hand-Stand™ but are compatible with the GDS® Roto-Mag™. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. Also included is the USB Type-C female pigtail, cable clamp, and zip ties.
Features

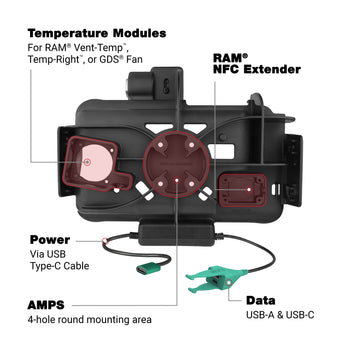

- Key-locking form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3; provides charging through an integrated pogo pin connection and USB Type-C cable
- Compatible with most RAM® dock accessories including Temperature Control Accessories, RAM® NFC Extender, GDS® Roto-Mag™, and side accessory attachments
- Power delivered via USB-C connector; connect up to 2 input devices via dual USB-A and USB-C connector
- Compatible with the Samsung OEM skin as well as the RAM® Skin™
- Backed by a 3-year warranty
hardware included:
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Cable Clamp
(2) Large Cable Ties
(8) Small Cable Ties
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
materials:
High strength composite
packaging type:
Poly Bag
input voltage:
5.3-5.4VDC
output voltage:
5VDC
power output:
500mA
input connector:
USB Type-C Female
input cable length:
215mm
output connector:
(1) USB-C Female
(1)USB-A Female
output cable length:
215mm
peripheral output:
900mAh (per port)
transfer speed:
480Mbps
Warranty:
3 year warranty
Weight:
1.33 lb
Additional Information:
This dock is not compatible with the GDS® Hand-Stand™.
