Overview

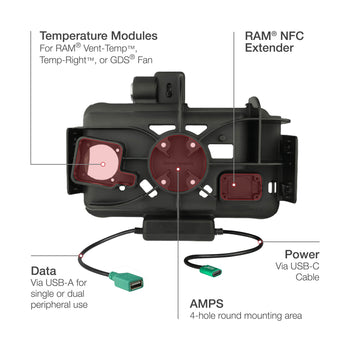

The RAM® Locking Modular Power + Single USB Dock for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM58CPKLN-1AU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's USB port to support one additional peripheral, making this the ideal, compact mounting solution for your mobile workstation. This key-locking modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: Temperature Control Accessories, RAM® NFC Extender, and side bracket accessory attachments. Modular docks are not compatible with the GDS® Hand-Stand™ but are compatible with the GDS® Roto-Mag™. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. Also included is the mUSB female pigtail, cable clamp, and zip ties.

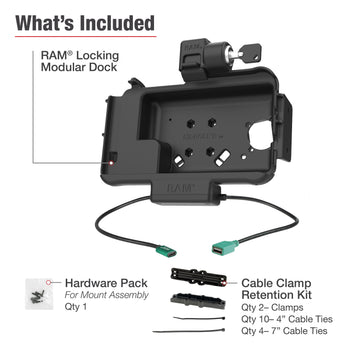

hardware included:
(2) Keys
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(2) Optional Cable Clamp Housings
(4) Large Cable Ties
(10) Small Cable Ties
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
materials:
High strength composite
packaging type:
Poly Bag
input voltage:
5.3-5.4VDC
output voltage:
5VDC
power output:
500mA
input connector:
USB Type-C Female
input cable length:
250mm
output connector:
USB 1.1 Type A
output cable length:
250mm
peripheral output:
500mAh
transfer speed:
12Mbps
Warranty:
3 year warranty
Weight:
1.35 lb
Additional Information:
This dock is not compatible with the GDS® Hand-Stand™.
