$245.99

Features

  • Key-locking form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3 providing power via USB-C cable
  • Includes NFC repeater extending to 30cm of reach and attaches to the back of select RAM® and GDS® tablet docks
  • Supports passage of data to a device from cards, tags, buttons, etc; supports Tap To Pay, asset tracking, time tracking, attendance, and much more
  • Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
  • Backed by a 3-year warranty

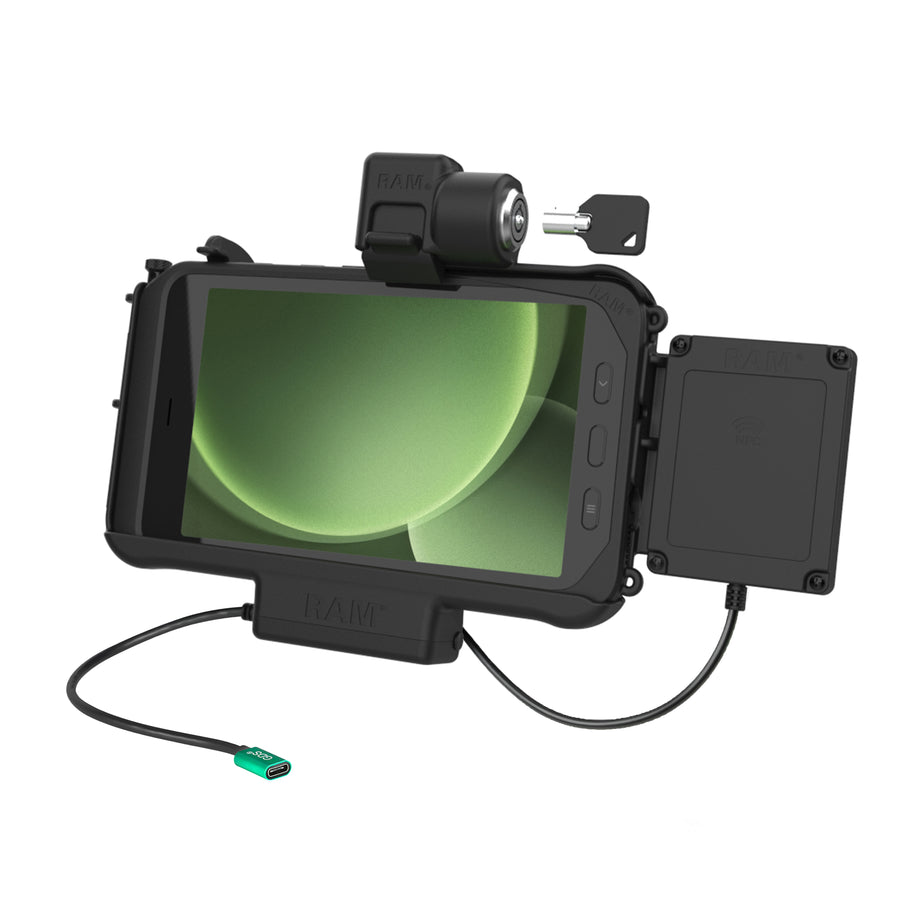

RAM® Locking USB-C Powered Dock for Tab Active5 & 3 with NFC Extender
Part#:RAM-HOL-SAM58CPKL-NFCU UPC:793442021992 Patented & Pats. Pend.
This key-locking powered vehicle dock (RAM-HOL-SAM58CPKL-NFCU) for the Samsung Tab Active5 & Tab Active3 comes with a RAM® NFC Extender. The NFC extender acts as an extension of the NFC reader on the back of the Tab Active5 & 3 giving end users easier access to the scanning function. With easier access to the NFC reader, tablet operators no longer need to remove the device from its docking station to scan — simply install the repeater on your docking station and give easy access to programs like Tap To Pay, asset tracking, time management, and more. The repeater extends to 30cm in length and installs on the back of the dock, directly behind the device's NFC reader. This charging vehicle dock has been designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power capabilities through the dock are provided to the device through pogo pin technology, taking advantage of the Tab Active5 & 3's pogo pad docking contacts—simply dock the device and the pogo pins match the pattern of the pogo pads for a seamless charging experience. This dock is also compatible with the RAM® Skin™ or factory device skin, as well as GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern.

hardware included

(2) Keys
(6) #8-32 x 5/8" Machine Screws
(6) #8-32 Nylock Nuts
(2) #8-32 x 1/2"
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(5) Small Cable Ties
(1) NFC Repeater Extension Kit

hole pattern

4-Hole AMPS: 1.181" x 1.496"

materials

High strength composite

packaging type

Poly Bag

input voltage

5.3-5.4VDC

output voltage

5VDC

power output

500mA

input connector

USB Type-C Female

input cable length

215mm

Warranty

3 year warranty

Weight

1.43 lb

Additional Information

This product will not support any NFC functionality of the Tab Active2

Potential interference of NFC functionality may occur when positioned close to strong magnets.

This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options here.

Components

RAM® NFC Extender RAM-GDS-CAB-NFCU $79.49
