RAM® Combo Locking Power + Data Dock for Samsung Tab Active5 & 3 | |
---|---|
Part #:
RAM-HOL-SAM58CPCL-1AU
UPC:
793442022050
Patented & Pats. Pend.
Features
|
![]() |
Product Information | |
---|---|

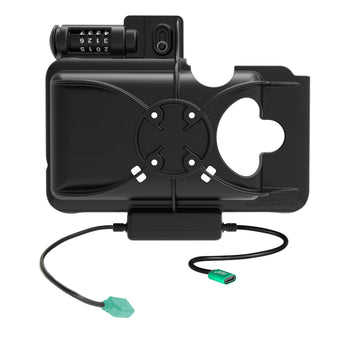

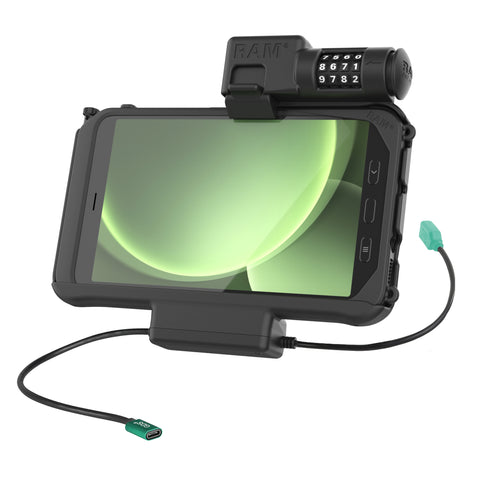

Overview | This combination locking RAM® EZ-Roll’r™ power cradle for the Samsung Tab Active5, Tab Active3 and 2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's USB-A port for an additional peripheral making this the ideal, compact mounting solution for your mobile workstation. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any B or C size RAM® components containing the universal 4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS® Hand-Stand™ attachment so you can easily take your Tab Active5, 3 or 2 from your vehicle, to your person, to your desk with zero hassle. |
Specifications | |
---|---|
hardware included | (4) #8-32 x 5/8" Machine Screws (4) #8-32 Nylock Nuts (1) Optional Cable Clamp Housing (2) Large Cable Ties (7) Small Cable Ties |
product dimensions | Width: 9.25" Height: 7.75" Depth: 3" |
hole pattern | 4-Hole AMPS: 1.181" x 1.496" |
materials | High strength composite |
packaging type | Poly Bag |
input voltage | 5.3-5.4VDC |
output voltage | 5VDC |
power output | 500mA |
input connector | USB Type-C Female |
input cable length | 250mm |
output connector | USB 1.1 Type A |
output cable length | 250mm |
peripheral output | 500mAh |
transfer speed | 12Mbps |
Warranty | 3 year warranty |
Weight | 1.03 lb |
Additional Information | This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options here. |
Compatible Devices
Samsung
Tab Active5
Tab Active3
Tab Active2
Compatible Devices
Samsung
Tab Active5
Tab Active3
Tab Active2

Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAM-HOL-SAM58CPCL-1AU!
We'll email you once the item is available.
Overview
This combination locking RAM® EZ-Roll’r™ power cradle for the Samsung Tab Active5, Tab Active3 and 2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's USB-A port for an additional peripheral making this the ideal, compact mounting solution for your mobile workstation. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any B or C size RAM® components containing the universal 4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS® Hand-Stand™ attachment so you can easily take your Tab Active5, 3 or 2 from your vehicle, to your person, to your desk with zero hassle.
Features
- Combination locking powered cradle provides charging and data transfer capabilities for the Samsung Galaxy Tab Active5, Tab Active3 and 2 through integrated pogo pin connector
- Power delivered via USB-C connector; connect a single input device via USB-A connector
- Contains 4-hole AMPS hole pattern for RAM® ball components
- Access to speakers, mics, headphone jack, and NFC reader remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
- Backed by a 3-year warranty

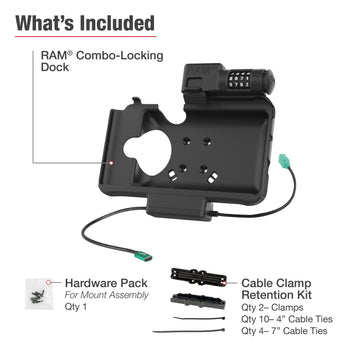

hardware included:
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(7) Small Cable Ties
product dimensions:
Width: 9.25"
Height: 7.75"
Depth: 3"
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
materials:
High strength composite
packaging type:
Poly Bag
input voltage:
5.3-5.4VDC
output voltage:
5VDC
power output:
500mA
input connector:
USB Type-C Female
input cable length:
250mm
output connector:
USB 1.1 Type A
output cable length:
250mm
peripheral output:
500mAh
transfer speed:
12Mbps
Warranty:
3 year warranty
Weight:
1.03 lb
Additional Information:
This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options here.
