Patent Pending

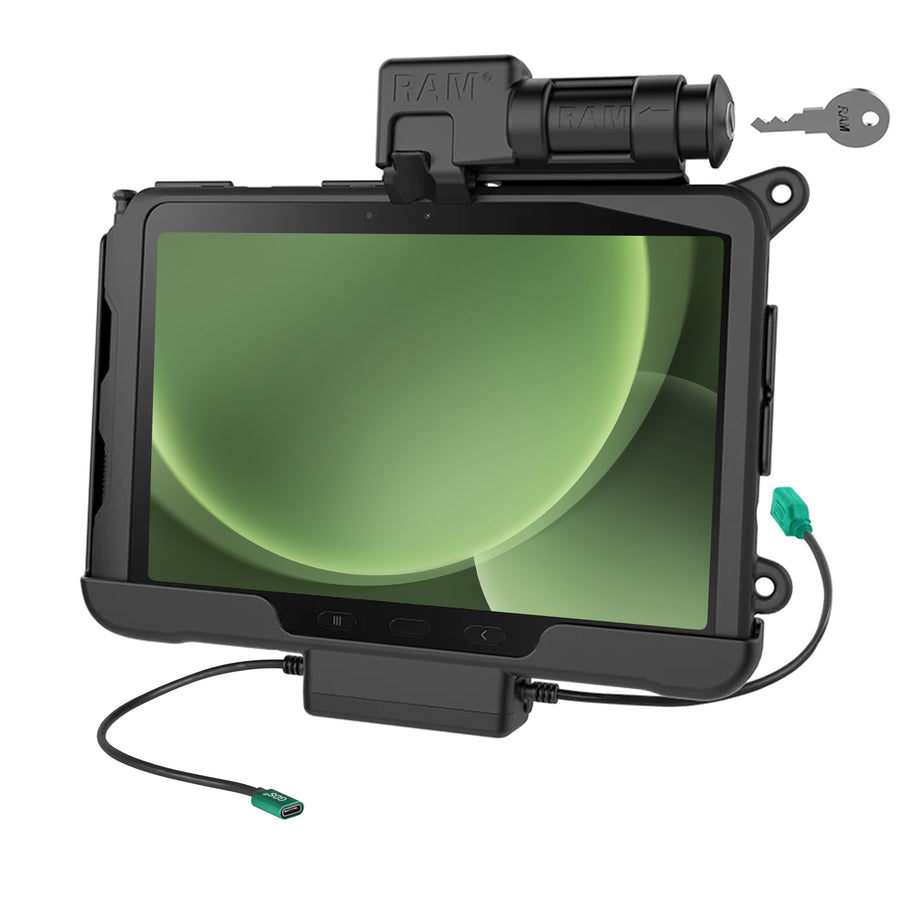

RAM® Key-Locking Power + Data Dock for Tab Active5 Pro & 4 Pro

Part#: RAM-HOL-SAM57CPKL-1AU
UPC: 793442022098
$188.99

Overview

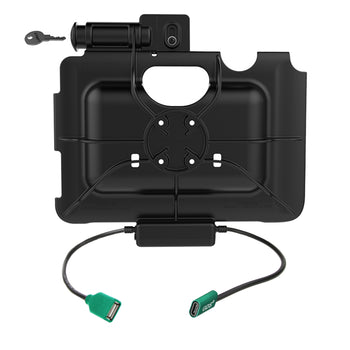

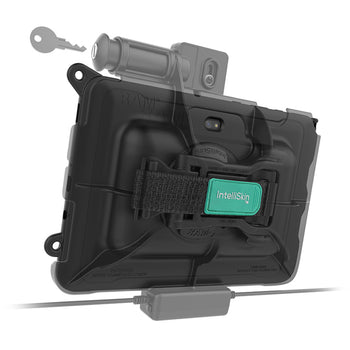

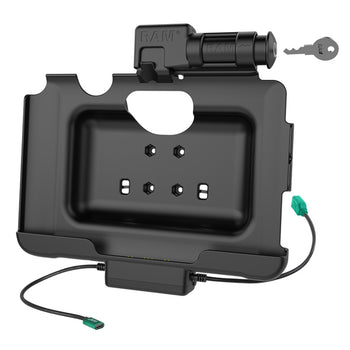

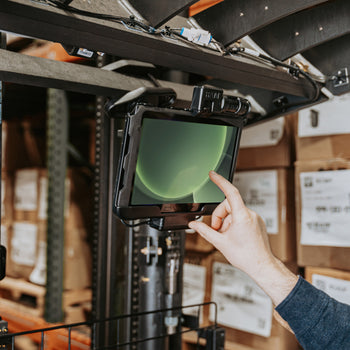

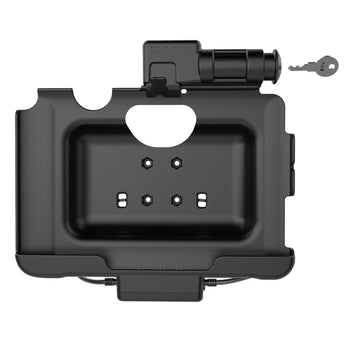

This power and data cradle for the Samsung Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode. For security and theft deterrence, this powered cradle features a keyed lock that’s compatible with the RAM® Skin™ or factory device skin, as well as GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal AMPS hole pattern. Also included is the USB Type-A female pigtail, cable clamp, and zip ties.

Features

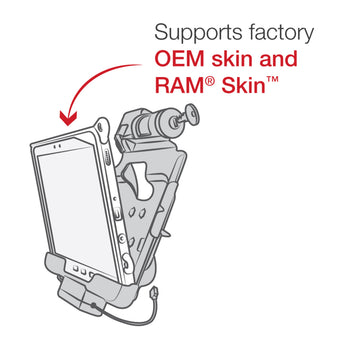

  • Key locking powered dock supports the Samsung Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro with factory Samsung case or with RAM® Skin™; powered through integrated pogo pin connector

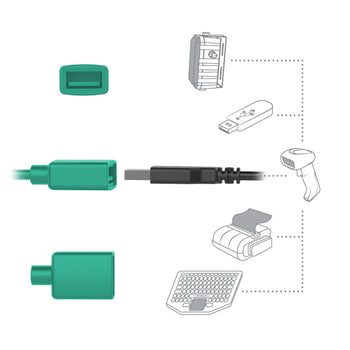

  • Powered via USB-C connector (Non-Power Delivery charger required); connect a single input device via USB-A connector
  • RAM® Mounts Compatible™ with AMPS hole pattern components
  • Made of high-strength composite materials for durability and reliability in the most demanding environments
  • Backed by a 3-year warranty

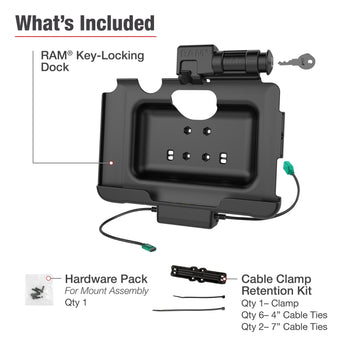

hardware included:

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(7) Small Cable Ties

hole pattern:

4-Hole AMPS: 1.181" x 1.496"

materials:

High strength composite

packaging type:

Poly Bag

input voltage:

5.3-5.4VDC

output voltage:

5VDC

power output:

500mA

input connector:

USB Type-C Female

input cable length:

250mm

output connector:

USB 1.1 Type A

output cable length:

250mm

peripheral output:

500mAh

transfer speed:

12Mbps

Warranty:

3 year warranty

Weight:

1.3 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
