Overview
This powered cradle for the Samsung Galaxy Tab Active4 Pro and Tab Active Pro has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode. For security and theft deterrence, this powered cradle features a combination lock that’s compatible with the RAM® Skin™ or factory device skin, as well as GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal AMPS hole pattern.
Features
- Combination locking powered dock supports the Samsung Galaxy Tab Active4 Pro and Tab Active Pro with factory Samsung case or with RAM® Skin™; powered through integrated pogo pin connector
- RAM® Mounts Compatible™ with AMPS hole pattern components
- Made of high-strength composite materials for durability and reliability in the most demanding environments
- Backed by a 3-year warranty

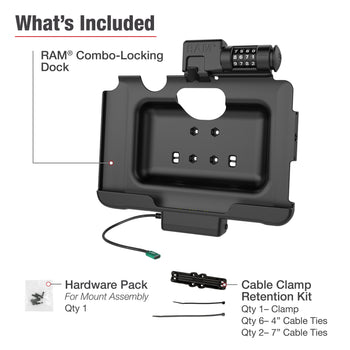

hardware included:
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(7) Small Cable Ties
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
materials:
High strength composite
packaging type:
Poly Bag
input voltage:
5.3-5.4VDC
output voltage:
5VDC
power output:
500mA
input connector:
USB Type-C Female
input cable length:
215mm
Warranty:
3 year warranty
Weight:
1.12 lb
Additional Information:
This product will not support the "No Battery Mode" function of the Tab Active4 Pro. To support "No Battery Mode", see RAM® Tough-Case™ options here.
