Overview

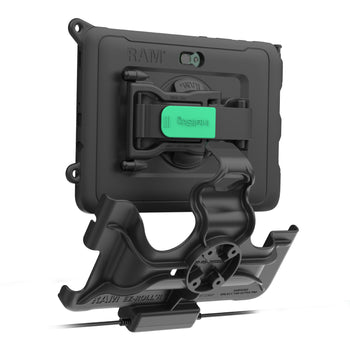

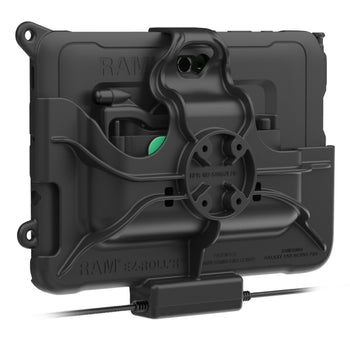

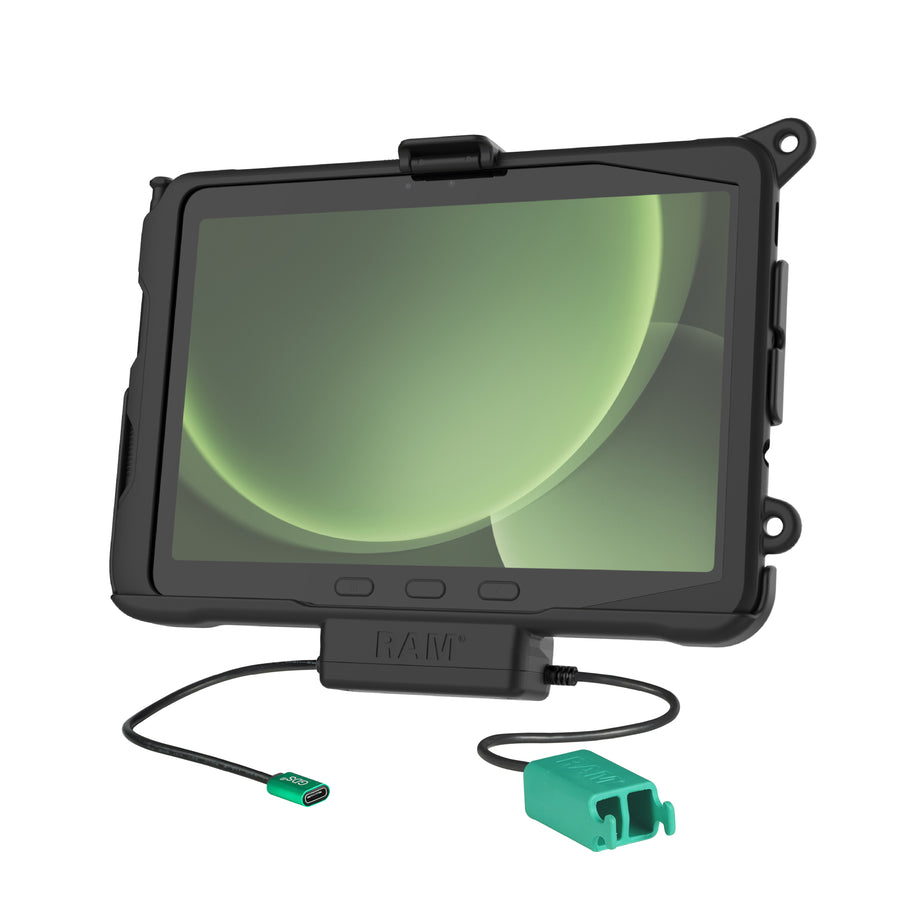

This RAM® Power & Dual USB Data Dock for Tab Active5 Pro & 4 Pro (RAM-HOL-SAM52CP-2AU) is a form-fit, powered cradle that has been designed to meet the demands of field workers in a variety of applications, including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided through GDS® pogo pins, while the cradle's dual USB-A ports support up to two peripherals, making it the ideal compact mounting solution for your mobile workstation. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal 4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS® Hand-Stand™ attachment so you can easily take your Galaxy Tab Active5 Pro, Tab Active4 Pro, or Tab Active Pro from your vehicle, to your person, to your desk with zero hassle.
Features
- Powered dock provides charging and data transfer capabilities for Samsung Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro through integrated pogo pin connector; for light-duty use and landscape mode only
- Power delivered via USB-C connector; connect up to 2 input devices via dual USB-A connector
- Extra space in the back of the cradle allows for GDS® Hand-Stand™ compatibility; contains 4-hole AMPS hole pattern for RAM® ball components
- Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
- Backed by a 3-year warranty
hardware included:
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nyloc Nuts
(1) Optional Cable Clamp Housing
(4) Large Cable Ties
(6) Small Cable Ties
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
materials:
High strength composite
packaging type:
Poly Bag
input voltage:
5.3-5.4VDC
output voltage:
5VDC
power output:
500mA
input connector:
USB Type-C Female
input cable length:
220mm
output connector:
(2) USB 1.1 Type A
output cable length:
190mm
peripheral output:
500mA
transfer speed:
12Mbps
Warranty:
3 year warranty
Weight:
0.8 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
