Overview

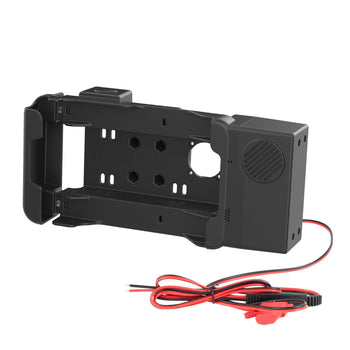

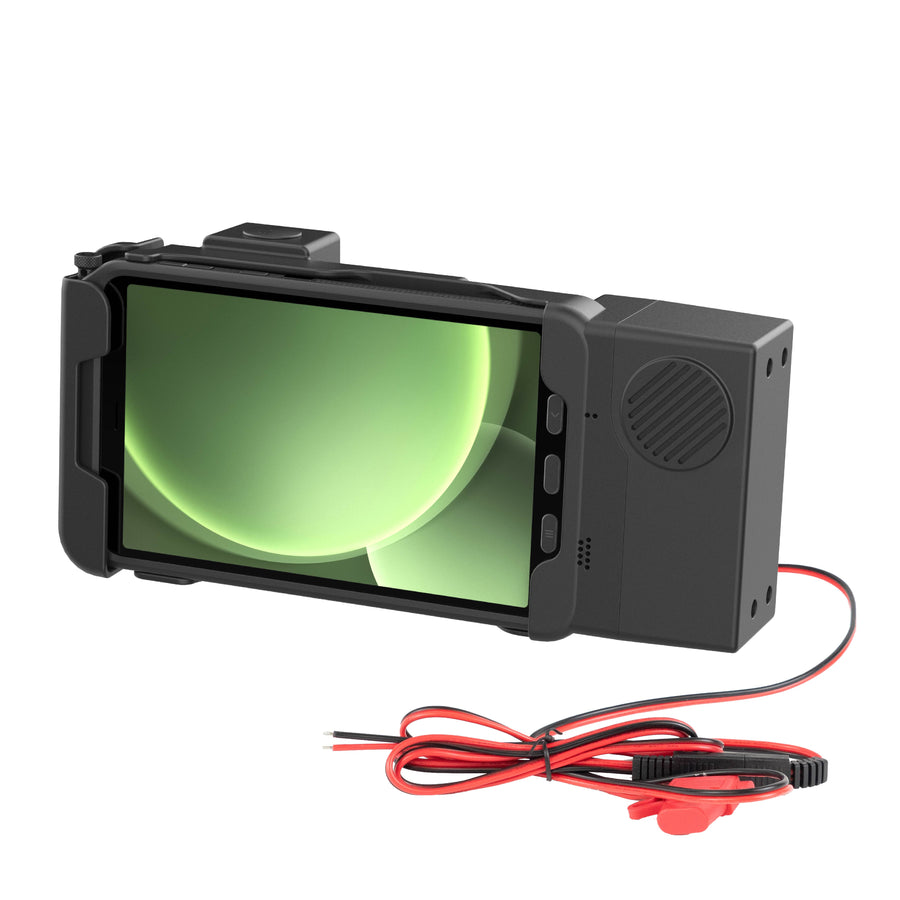

The RAM® Speaker Dock for Tab Active5 & 3 - SAE Power (RAM-HOL-SAM105-PAU) is a rugged tablet dock with a direct-to-USB-C connection and an integrated speaker, designed specifically for the Samsung Tab Active5 & 3. The spring-loaded design of this dock allows for a quick one-handed insertion or removal of your device, while the precise design of the dock body minimizes human error and port damage when docking the device onto the USB-C male connector. An added speaker integrated into the bottom of the dock adds amplified audio while on the road. Access to the stylus remains while the device is docked. This dock features an integrated SAE cable for easy power connection. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. This dock is compatible with the Tab Active5 in the RAM® Skin™ or factory device skin, and the Tab Active3 in the factory device screen. Please note: this dock is not compatible with the bare device.
Features
- Spring-loaded powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3; Provides charging through an integrated USB-C male connection and SAE cable

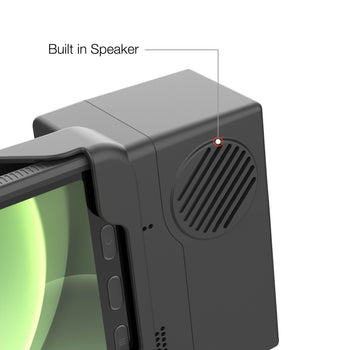

- Integrated speaker on the bottom of the dock for amplified audio
- Compatible with the Samsung OEM skin as well as the RAM® Skin™; Access to the stylus remains while device is docked
- Spring-loaded design allows for easy insertion & removal
- Backed by a 3-year warranty
hardware included:
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nyloc Nuts
speaker specifications:
8Ω Impedance
2W Power
90.0+/- 3dB SPL
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
materials:
High strength composite
packaging type:
Poly Bag
input voltage:
10V-28VDC
output voltage:
5V @ 1.5A
5V @ 3A
9V @ 3A
12V @ 3A
15V @ 3A
3.3V – 11V @ 3A
Warranty:
3 year warranty
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
