Overview

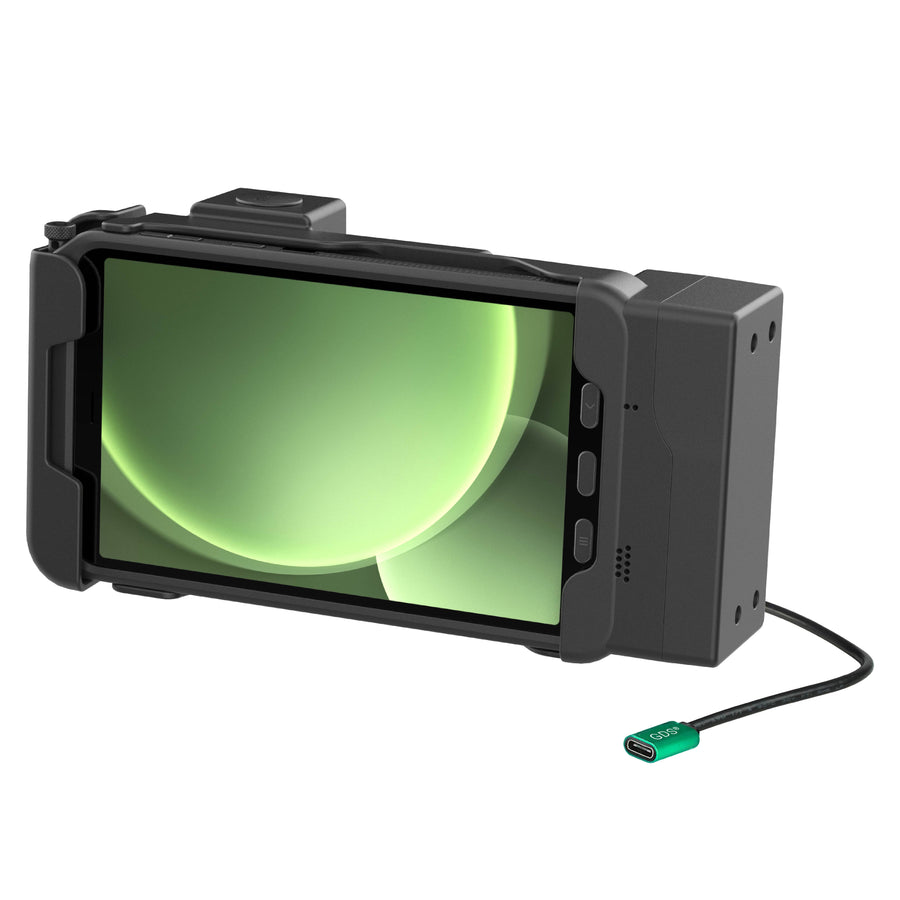

The RAM® Spring-Loaded Dock for Tab Active5 & 3 - USB-C Female (RAM-HOL-SAM105-CU) is a rugged tablet dock with a direct-to-USB-C connection, designed specifically for the Samsung Tab Active5 & 3. The spring-loaded design of this dock allows for a quick one-handed insertion or removal of your device, while the precise design of the dock body minimizes human error and port damage when docking the device onto the USB-C male connector. Access to the stylus remains while the device is docked. This dock features an integrated USB-C female cable for easy power connection. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. This dock is compatible with the Tab Active5 in the RAM® Skin™ or factory device skin, and the Tab Active3 in the factory device screen. Please note: this dock is not compatible with the bare device.
Features
- Spring-loaded powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3; Provides charging through an integrated USB-C male connection and USB-C female cable
- Compatible with the Samsung OEM skin as well as the RAM® Skin™; Access to the stylus remains while device is docked
- Spring-loaded design allows for easy insertion & removal
- Backed by a 3-year warranty
hardware included:
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nyloc Nuts
(1) Cable Clamp
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
materials:
High strength composite
packaging type:
Poly Bag
input voltage:
10V-28VDC
output voltage:
5V @ 1.5A
5V @ 3A
9V @ 3A
12V @ 3A
15V @ 3A
3.3V – 11V @ 3A
Warranty:
3 year warranty
