Overview

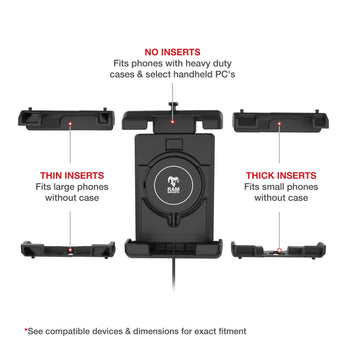

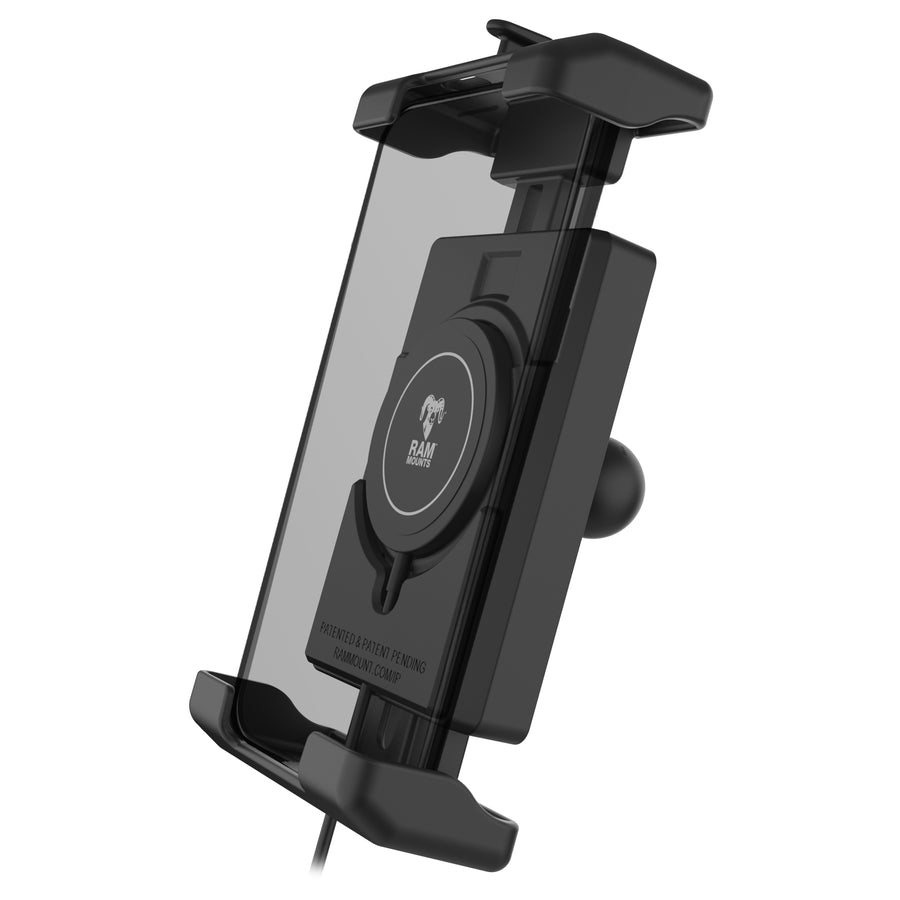

The RAM® Quick-Grip™ Pro XL with Ball & Qi2 15W Wireless Charger (RAM-HOL-PD7B-W2MU) is the next evolution of the RAM® Quick-Grip™ series, re-designed to be the most rugged universal phone holder that fits a wide range of phones and handheld devices. This phone holder comes with the RAM® Qi2 wireless charger and features an integrated cavity to secure it in place. This phone holder comes with an anti-slip cover ensuring a flush fit when the wireless charging puck is not installed. The RAM® Quick-Grip™ Pro XL features a spring-loaded design that allows easy one-handed insertion and removal of your device. Large and small shims are included to provide a snug, secure fit for large and small phones without a case. Complete the solution by building your mount—this holder is RAM® Compatible™ and includes a B size diamond ball to be installed on the 2-hole AMPS pattern. RAM® recommends installing the provided device tether when this holder is used in a vehicle with an open cockpit. It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.
Features

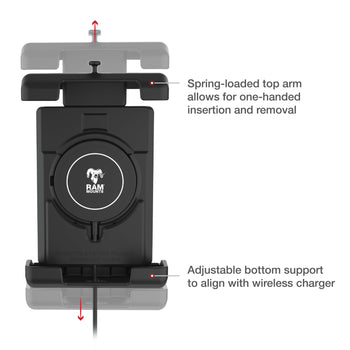

- Spring-loaded holder provides a secure hold for phones and handheld devices; easily insert and remove your phone with one hand

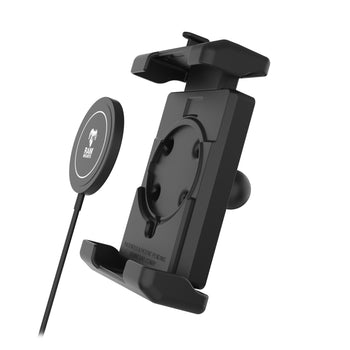

- Includes RAM® Qi2 wireless charger that fits seamlessly in the integrated center cavity
- Comes with an optional device tether for open cockpit environments
- Made of high-strength composite for durability and reliability in the most demanding environments
- Mounting components backed by a lifetime warranty; electronics backed by a 3-year warranty

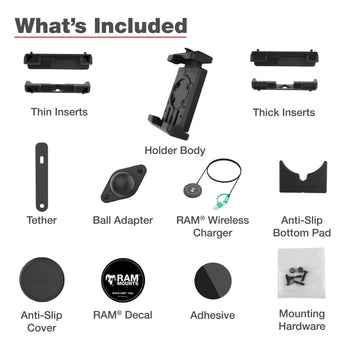

hardware included:
Assembly Hardware
holder dimensions:
Height Range: 5.375" - 7"
Width Range: 2.75" - 3.5"
Max Depth: .75"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
High strength composite
packaging type:
Poly Bag
power specifications:
Operating Frequency: 360KHZ
Stand-by Consumption ~ 0.008A / 8mA @5VDC
80% Wireless Power Transfer Efficiency or Greater
Supports USB 2.0 BC1.2 Power Supply (5V)
Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0
input voltage:
USB 5V @ 3A
QC2.0 9V @ 2.22A
USB PD 2.0 5-15V @ 2A
power output:
BPP - 5W
EPP - 7.5W
MPP - 15W
output connector:
USB Type-C Male with USB-A Adapter
output cable length:
1 Meter
operating temperature:
0°C to +40°C
storage temperature:
-20°C to +80°C
regulatory:
Over Current Protection
Short circuit Protection
Over Temperature Protection
RoHS Compliance
WEEE Compliance
certifications:
IP67
SAE J1455
FCC Certification
CE Certification
E-Mark Certification
RCM Certification
Weight:
0.88 lb
