RAM® Powered Dock for Panasonic FZ-A3 | |
---|---|
Part #:
RAM-HOL-PAN16PU
UPC:
793442585074
Patent Pending
Features
|
![]() |
Product Information | |
---|---|

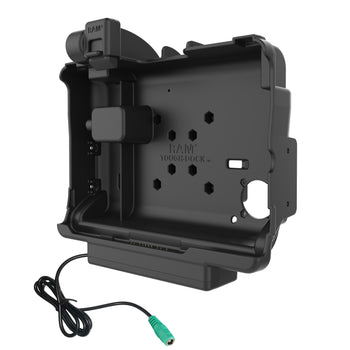

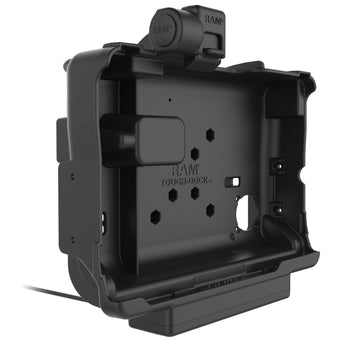

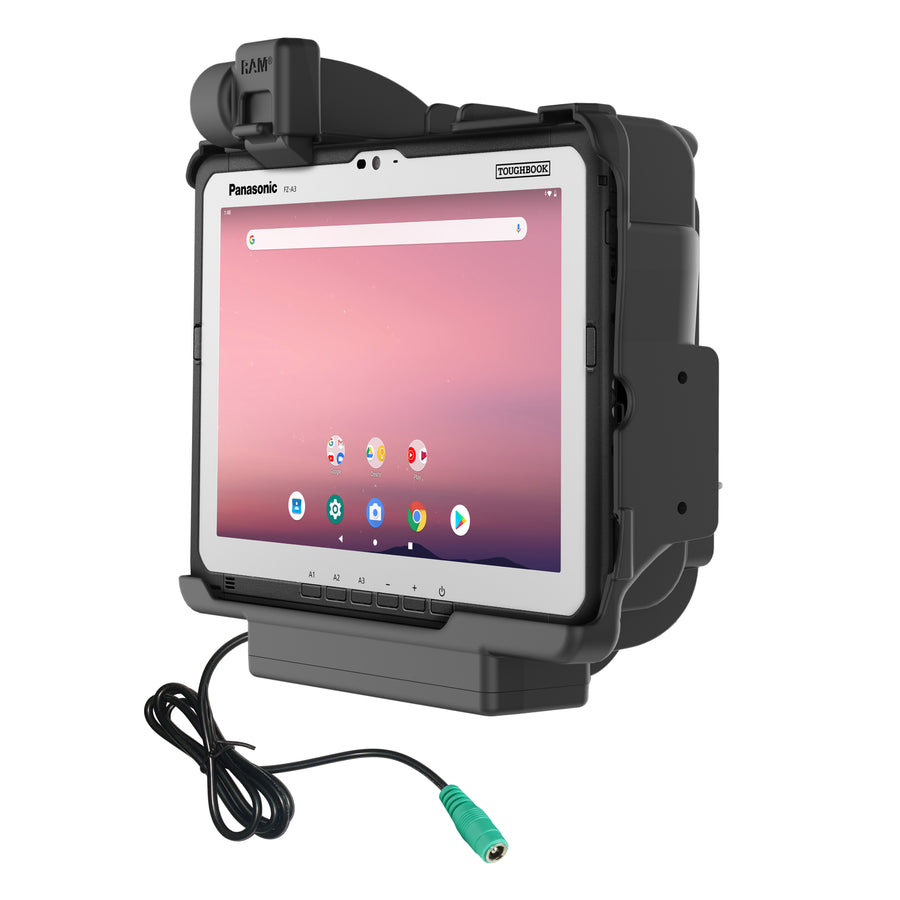

Overview | The RAM® powered dock for the Panasonic FZ-A3 allows you to keep the device charged through the pogo pin contacts when the device is docked—power is provided by connecting to the dock's 5.5mm DC power jack. This dock features cutouts that leave all buttons and ports exposed and accessible while also supporting the Panasonic extended battery, as well as RAM® Mounting & Accessory Plate. A 2-Hole AMPS Accessory bracket can easily be attached to the dock to add an additional mounting location for another device such as a phone. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. |
Specifications | |
---|---|
hardware included | (4) #8-32 x 5/8" Machine Screws (4) #8-32 Nylock Nuts |
product dimensions | Overall Height: 10.5" Overall Width: 11.19" Overall Depth: 4.16" |
hole pattern | 4-Hole AMPS: 1.181" x 1.496" 75 x 75mm VESA |
materials | High strength composite |
packaging type | Poly Bag |
regulatory | FCC, IC, E-Mark |
certifications | CE, RoHS |
Weight | 2.07 lb |
Additional Information | This dock will not support the factory OEM hand strap. For hand strap and other accessory capabilities that are compatible with this dock, see RAM-202-PAN16U. |
Compatible Devices
Panasonic
FZ-A3
Compatible Devices
Panasonic
FZ-A3

Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAM-HOL-PAN16PU!
We'll email you once the item is available.
Overview
The RAM® powered dock for the Panasonic FZ-A3 allows you to keep the device charged through the pogo pin contacts when the device is docked—power is provided by connecting to the dock's 5.5mm DC power jack. This dock features cutouts that leave all buttons and ports exposed and accessible while also supporting the Panasonic extended battery, as well as RAM® Mounting & Accessory Plate. A 2-Hole AMPS Accessory bracket can easily be attached to the dock to add an additional mounting location for another device such as a phone. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution.
Features

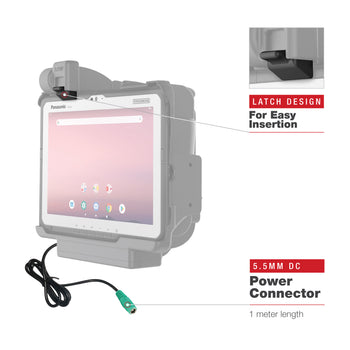

- Spring-loaded powered dock provides charging capabilities for the Panasonic FZ-A3 tablet via DC 5.5mm power jack

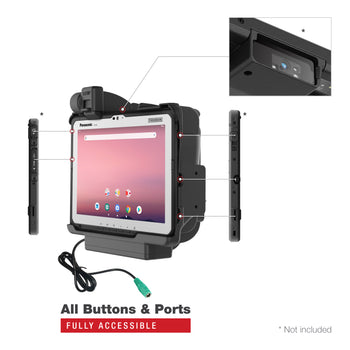

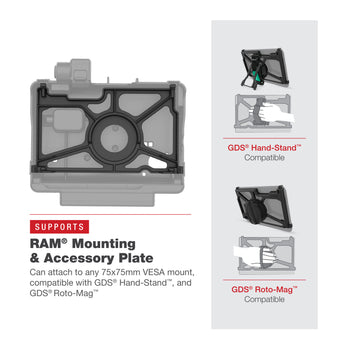

- All buttons and ports on device are exposed and fully accessible; supports Panasonic extended battery and the RAM® Mounting & Accessory Plate

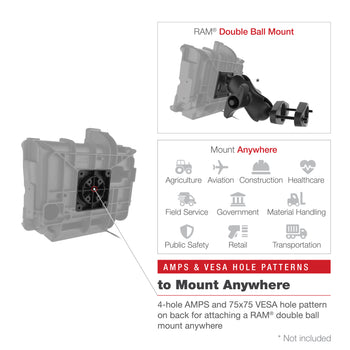

- Compatible with RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Backed by a 3-year warranty
hardware included:
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
product dimensions:
Overall Height: 10.5"
Overall Width: 11.19"
Overall Depth: 4.16"
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
75 x 75mm VESA
materials:
High strength composite
packaging type:
Poly Bag
regulatory:
FCC, IC, E-Mark
certifications:
CE, RoHS
Weight:
2.07 lb
Additional Information:
This dock will not support the factory OEM hand strap. For hand strap and other accessory capabilities that are compatible with this dock, see RAM-202-PAN16U.
