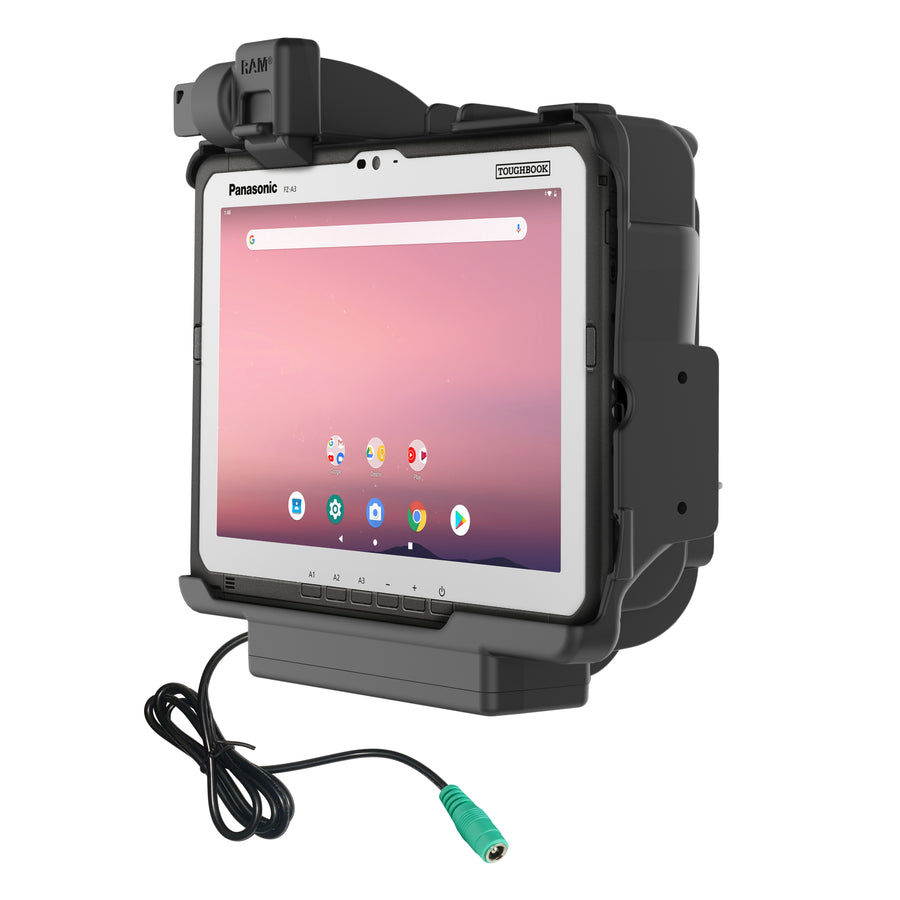

RAM® Locking Powered Dock for Panasonic FZ-A3
$209.99
Locking
Features

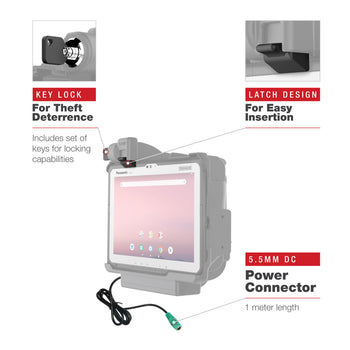

- Spring-loaded, key-locking powered dock provides charging capabilities for the Panasonic FZ-A3 tablet via DC 5.5mm power jack

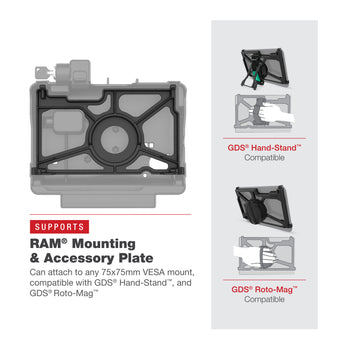

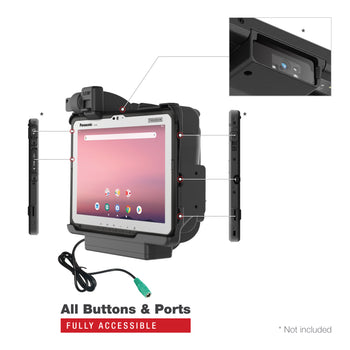

- All buttons and ports on device are exposed and fully accessible; supports Panasonic extended battery and the RAM® Mounting & Accessory Plate

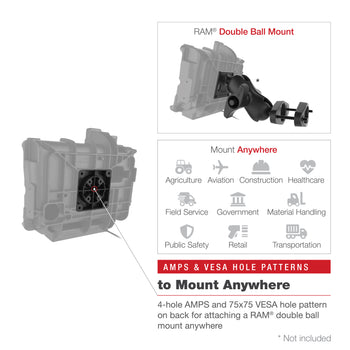

- Compatible with RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Backed by a 3-year warranty

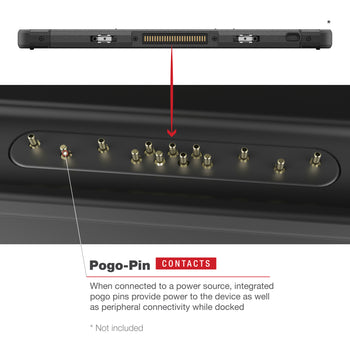

The RAM® key-locking, powered dock for the Panasonic FZ-A3 allows you to keep the device charged through the pogo pin contacts when the device is docked—power is provided by connecting to the dock's 5.5mm DC power jack. This dock features cutouts that leave all buttons and ports exposed and accessible while also supporting the Panasonic extended battery, as well as RAM® Mounting & Accessory Plate. A 2-Hole AMPS Accessory bracket can easily be attached to the dock to add an additional mounting location for another device such as a phone. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution.
RAM® Locking Powered Dock for Panasonic FZ-A3
Overview
The RAM® key-locking, powered dock for the Panasonic FZ-A3 allows you to keep the device charged through the pogo pin contacts when the device is docked—power is provided by connecting to the dock's 5.5mm DC power jack. This dock features cutouts that leave all buttons and ports exposed and accessible while also supporting the Panasonic extended battery, as well as RAM® Mounting & Accessory Plate. A 2-Hole AMPS Accessory bracket can easily be attached to the dock to add an additional mounting location for another device such as a phone. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution.
hardware included
(2) Keys
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
product dimensions
Overall Height: 10.5"
Overall Width: 11.19"
Overall Depth: 4.16"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
75 x 75mm VESA
materials
High strength composite
packaging type
Poly Bag
regulatory
FCC, IC, E-Mark
certifications
CE, RoHS
Weight
2.43 lb
Additional Information
This dock will not support the factory OEM hand strap. For hand strap and other accessory capabilities that are compatible with this dock, see RAM-202-PAN16U.
