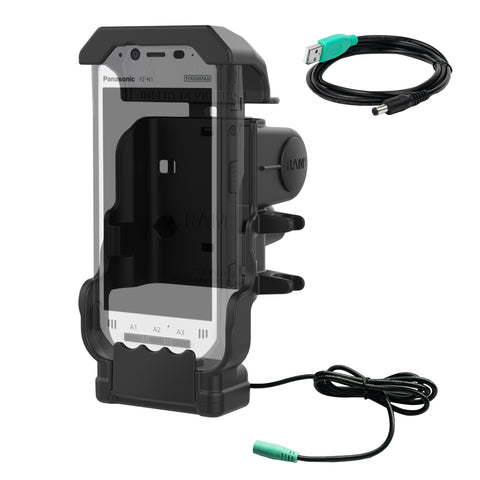

RAM® Powered Dock for Panasonic Toughbook FZ-N1 & FZ-F1
Part#: RAM-HOL-PAN11PU
UPC: 793442008429
$113.99

Overview

Secure and charge the Panasonic Toughbook® FZ-N1, or FZ-F1, with this RAM® powered cradle featuring an integrated stylus holder. This powered cradle allows for one-handed docking and removal of device and works with Panasonic hand straps, regular and extended batteries, and leaves all buttons, microphones, speakers, and the headphone jack exposed. For attaching to a wide range of RAM® arms and mounting accessories, the cradle is RAM® Mounts Compatible™ with RAM® B and C size diamond ball bases. For faster charging requirements use a Panasonic factory charger.

Features

  • Form-fit cradle designed specifically for the Panasonic Toughpad FZ-N1 and FZ-F1 with one-handed docking and removal capabilities
  • Compatible with Panasonic handstrap, Passive Stylus, Active Stylus and extended battery pack
  • Integrated pogo pin contacts provide charging power to the device; DC power cable for power
  • Compatible with B and C size RAM® diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Backed by a 3-year warranty

hardware included:

(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nylock Nuts
Genuine USB Type A with 90-Degree DC Cable

hole pattern:

2-Hole AMPS: 1.912"

materials:

High strength composite

packaging type:

Poly Bag

input connector:

DC power jack

input cable length:

1 Meter

Weight:

0.56 lb

Additional Information:

For faster charging requirements use a Panasonic factory charger. Chargers not included. See "Complete Your Solution" tab to view compatible charging accessories.

Print

Instructions

Instructions for Panasonic FZ-N1 & FZ-F1 Powered Dock
