Patented & Pats. Pend.

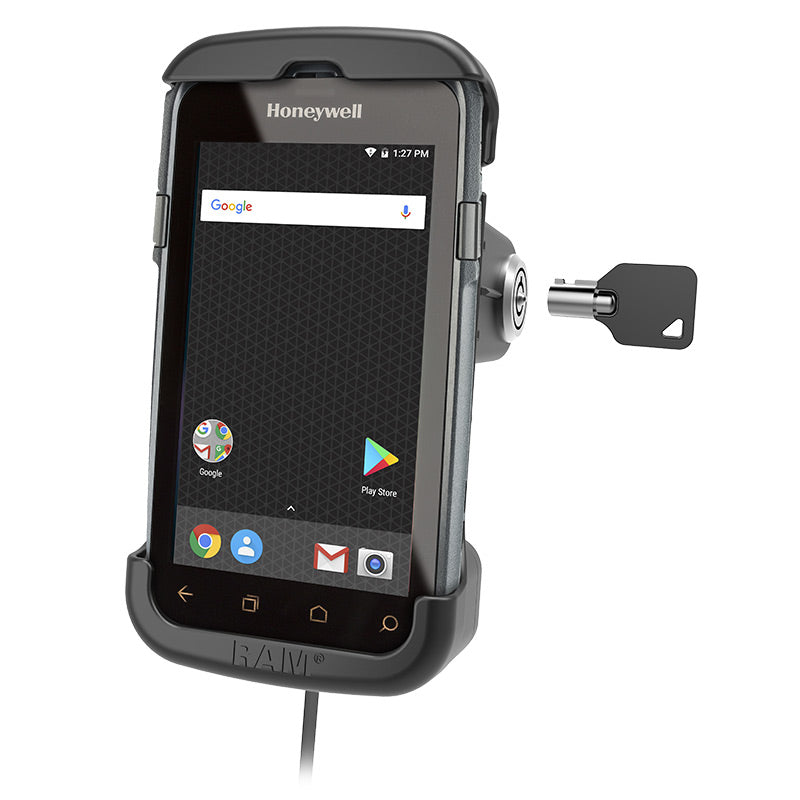

RAM® Key-Locking Form-Fit Powered Dock for Honeywell CT50, CT60 Series

Part#: RAM-HOL-HON7KLU
UPC: 793442009822
$163.99

Overview

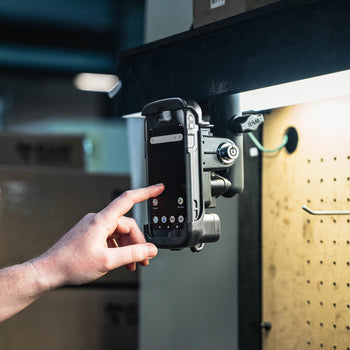

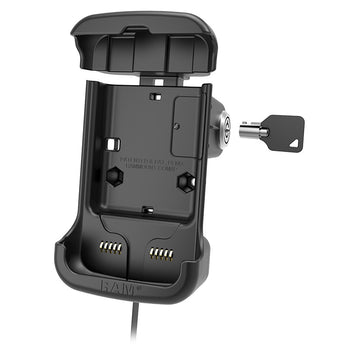

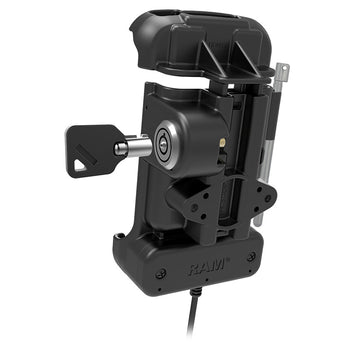

This key locking, spring-loaded cradle with stylus holder allows you to secure your Honeywell CT50, CT60 & CT60 XP. To lock, simply insert the device and push the button. The cradle is compatible with RAM® two-hole AMPS pattern diamond bases that will connect to any RAM® ball and socket mounts, allowing for a wide variety of mounting options (hardware included). For charging capabilities, cradle includes a 1.25 meter USB Type-A Male cable; compatible with the RAM-GDS-CHARGE-V7BU and other charging accessories (see Complete Your Solution tab).

Features

  • Spring-loaded, key locking powered cradle for the Honeywell CT50/CT60
  • RAM® Mounts Compatible™ with a variety of AMPS hole pattern diamond bases
  • Made of high-strength composite for durability and reliability in the most demanding environments
  • Backed by a 3-year warranty

hardware included:

(2) Keys
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nylock Nuts

product dimensions:

Overall Height: 6.38"
Overall Width: 3.5"
Overall Depth: 2.75"

hole pattern:

2-Hole AMPS: 1.912"

materials:

High strength composite

packaging type:

Poly Bag

input connector:

USB Type A Male

Warranty:

3 year warranty

Weight:

0.7 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

Documents

Honeywell Catalog
Material Handling Catalog
Sell Sheet
RAM® Key-Locking Form-Fit Powered Dock for Honeywell CT50, CT60 Series
$163.99
