RAM® Locking Powered Dock + USB-A for Honeywell CT40/45/47 - Heated Pins | |
---|---|
Part #:
RAM-HOL-HON12PDHLU
UPC:
793442019319
Patented & Pats. Pend.
Features
|
![]() |
Product Information | |
---|---|

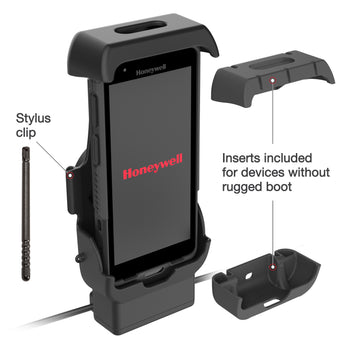

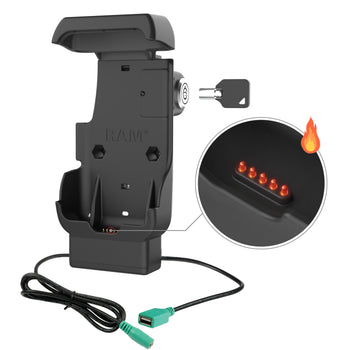

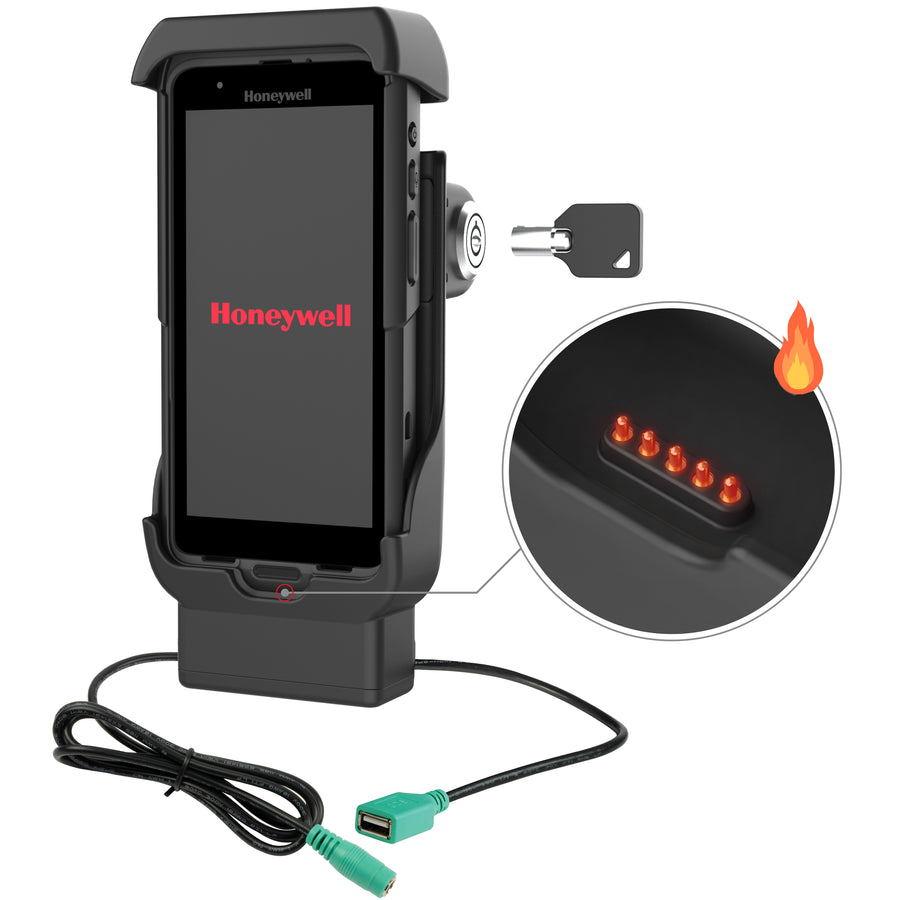

Overview | The RAM® Powered Dock + USB-A for Honeywell CT40/45/47 - Heated Pins (RAM-HOL-HON12PDHU) is a spring-loaded, form-fit powered dock that allows workers to secure and charge their Honeywell device. Power to the device is delivered via a 1m long female 5.5mm DC barrel connector and supports a single peripheral device via USB-A female connector. This dock includes an integrated stylus holder that snaps your stylus into place while not in use and is designed to accommodate OEM accessories, such as the hand strap. The top cup of the holder features a cut-out, so workers can utilize the device's scanner while docked. This holder comes with optional inserts to support devices with or without the protective rubber boot. The key lock provides theft deterrence and extra security for peace of mind. Combat harsh, freezing environments with heated pogo pins integrated into the dock to ensure a secure connection and prevent the pins from locking up due to ice. Complete your solution by adding a compatible RAM® two-hole AMPS pattern diamond base and double ball mount, allowing for a wide variety of mounting options (hardware included). |
Specifications | |
---|---|
hardware included | (2) Keys (2) #8-32 x 5/8" Machine Screws (2) #8-32 x 3/4" Machine Screws (2) #8-32 Nylock Nuts |
product dimensions | Overall Height: 7.83" Overall Width: 3.7" Overall Depth: 3.17" |
hole pattern | 2-Hole AMPS: 1.912" |
materials | High strength composite |
packaging type | Poly Bag |
input voltage | 5 VDC |
input connector | 5.5mm DC Connector |
input cable length | 1 Meter |
output connector | USB 2.0 Type A Female |
output cable length | 1 Meter |
peripheral output | 500mAh |
certifications | FCC, IC, CE, UKCA, RoHS, WEEE |
Warranty | 3 year warranty |
Weight | 0.97 lb |
Compatible Devices
Honeywell
CT40
CT45
CT47
Compatible Devices
Honeywell
CT40
CT45
CT47

Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAM-HOL-HON12PDHLU!
We'll email you once the item is available.
Overview
The RAM® Powered Dock + USB-A for Honeywell CT40/45/47 - Heated Pins (RAM-HOL-HON12PDHU) is a spring-loaded, form-fit powered dock that allows workers to secure and charge their Honeywell device. Power to the device is delivered via a 1m long female 5.5mm DC barrel connector and supports a single peripheral device via USB-A female connector. This dock includes an integrated stylus holder that snaps your stylus into place while not in use and is designed to accommodate OEM accessories, such as the hand strap. The top cup of the holder features a cut-out, so workers can utilize the device's scanner while docked. This holder comes with optional inserts to support devices with or without the protective rubber boot. The key lock provides theft deterrence and extra security for peace of mind. Combat harsh, freezing environments with heated pogo pins integrated into the dock to ensure a secure connection and prevent the pins from locking up due to ice. Complete your solution by adding a compatible RAM® two-hole AMPS pattern diamond base and double ball mount, allowing for a wide variety of mounting options (hardware included).
Features
- Spring-loaded form-fit dock perfectly secures the Honeywell CT40/45/47 Handheld Computer; provides power through 1-meter long DC connector and supports a single peripheral via USB Type-A pigtail connector

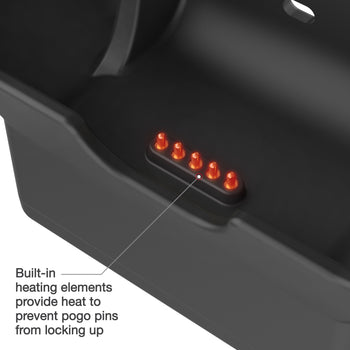

- Heated pogo pins combat ice and ensure a secure connection in harsh, cold environments
- Compatible with RAM® 2-hole diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a 3-year warranty
hardware included:
(2) Keys
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts
product dimensions:
Overall Height: 7.83"
Overall Width: 3.7"
Overall Depth: 3.17"
hole pattern:
2-Hole AMPS: 1.912"
materials:
High strength composite
packaging type:
Poly Bag
input voltage:
5 VDC
input connector:
5.5mm DC Connector
input cable length:
1 Meter
output connector:
USB 2.0 Type A Female
output cable length:
1 Meter
peripheral output:
500mAh
certifications:
FCC, IC, CE, UKCA, RoHS, WEEE
Warranty:
3 year warranty
Weight:
0.97 lb
