Patented & Pats. Pend.
RAM® Power + Data Dock for Honeywell ScanPal EDA10A
Part#: RAM-HOL-HON11PDU
UPC: 793442019432
$210.99

Overview

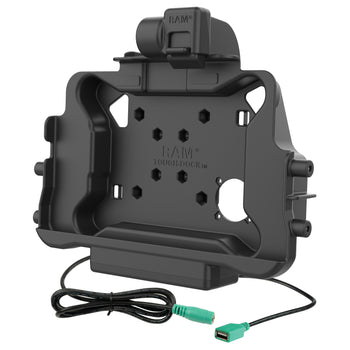

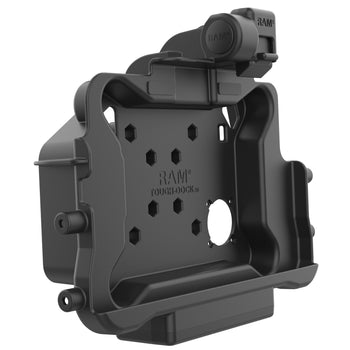

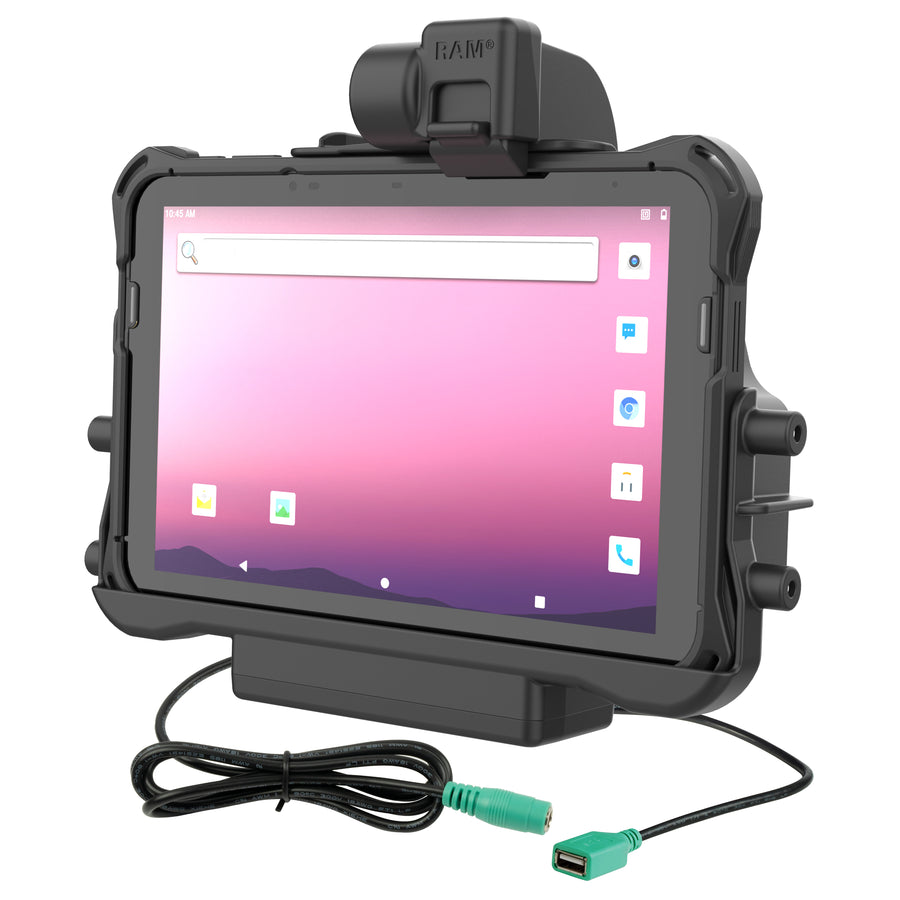

The RAM® Power + Data Dock for Honeywell ScanPal™ EDA10A (RAM-HOL-HON11PDU) features a form-fit design specifically for the Honeywell ScanPal™ EDA10A tablet with the OEM protective boot. This powered holder allows you to keep the device charged through the pogo pin contacts when the device is docked—power is provided by connecting to the dock's 5.5mm DC power jack. Peripheral support is provided by the built-in USB Type-A cable. It is compatible with the OEM hand-strap accessory and requires that the protective boot is installed for a secure fit. Take your solution a step further with a variety of compatible RAM® accessories, such as the RAM® NFC Extender and RAM® Vent-Temp™. This tablet holder includes a 4-hole AMPS and 75mm x 75mm VESA pattern on the back as connection points for attaching a double socket arm to complete your mounting solution. Secure any peripheral accessories or devices directly to the dock by mounting them to one of the two built-in 2-hole mounting locations compatible with the RAM® 2-hole diamond base.

Features

  • Spring-loaded, powered dock featuring GDS® Technology™ with data and charging capabilities for the ScanPal™ EDA10A tablet (protective boot required)

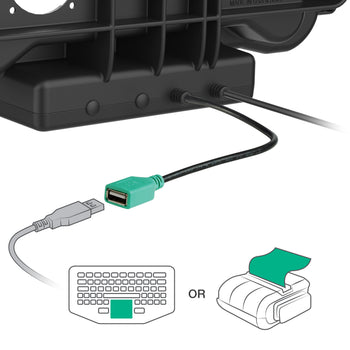

  • Power delivered through integrated pogo pin technology via 5.5mm DC Connector; connect up to 2 input devices via dual USB-A connector

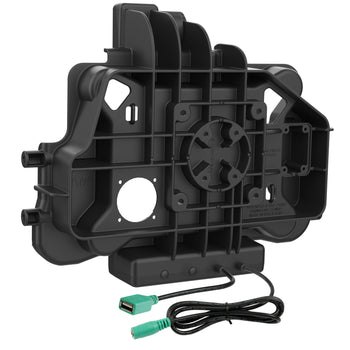

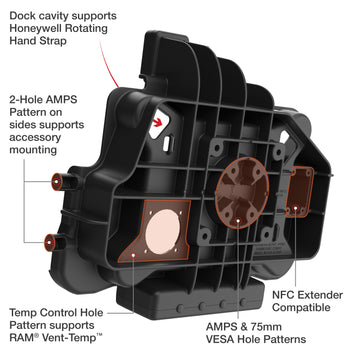

  • Compatible with RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Two built-in 2-hole mounting locations for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
  • Backed by a 3-year warranty

hardware included:

(6) #8-32 x 5/8” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
(1) Cable Clamp & Zip Tie Kit

hole pattern:

75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"

materials:

High strength composite

packaging type:

Poly Bag

input voltage:

5 VDC

input connector:

5.5mm DC Connector

input cable length:

1 Meter

output connector:

(1) USB-A Female

output cable length:

250mm

certifications:

FCC, CE, RoHS, WEEE

Warranty:

3 year warranty

Weight:

1.8 lb

Print

Documents

Honeywell ScanPal EDA10A Buyer Guide
