RAM® Locking Power + Data Dock for Getac ZX80
$373.49
Power + Single USB-A Peripheral, Locking
Features
- Key-locking, form-fit power + data sync dock designed specifically for Getac ZX80 rugged tablet
- Dock features compatibility with RAM® Vent-Temp™, Temp-Right™, RAM® NFC Extender, and D size RAM® VESA pattern base
- Power delivered through integrated pogo pin technology via 5.5mm DC Connector; connect 1 input device via USB-A connector
- Includes 2-hole side bracket for mounting additional devices such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
- Backed by a 3-year warranty

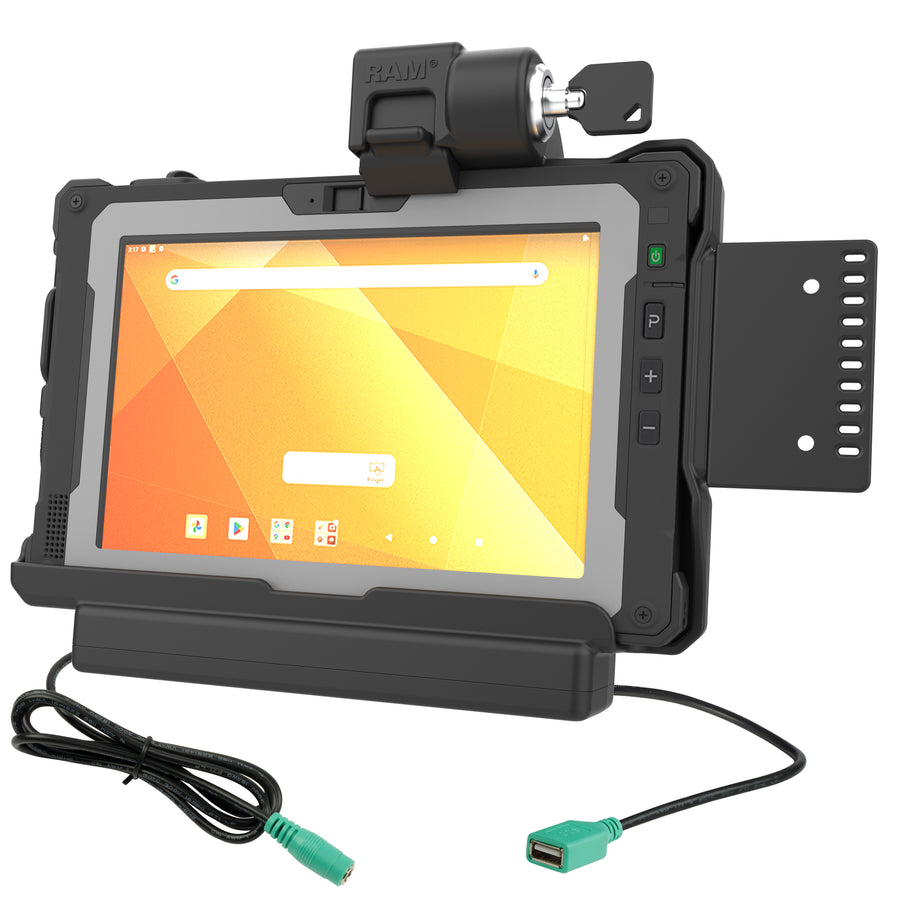

The RAM® Locking Power + Data Dock for Getac ZX80 (RAM-HOL-GE5PDKLU) allows you to secure the device and keep it charged through the pogo pin contacts while docked—power is provided by connecting to the dock's 5.5mm DC power jack. Add a peripheral with the built-in USB Type-A cord and connect a keyboard, barcode scanner, printer, and more. Upgrade with any combination of compatible accessories including the RAM® Temp-Right™, Vent-Temp™, RAM® NFC Extender, and D size VESA base. Additional compatibility for Getac accessories include the Standard & High capacity batteries as well as the 2-Point Shoulder Strap. Take the solution a step further by taking advantage of the included 2-hole side bracket, compatible with RAM® 2-hole diamond bases for additional device mounting such as a phone or other handheld device.
RAM® Locking Power + Data Dock for Getac ZX80
Overview
The RAM® Locking Power + Data Dock for Getac ZX80 (RAM-HOL-GE5PDKLU) allows you to secure the device and keep it charged through the pogo pin contacts while docked—power is provided by connecting to the dock's 5.5mm DC power jack. Add a peripheral with the built-in USB Type-A cord and connect a keyboard, barcode scanner, printer, and more. Upgrade with any combination of compatible accessories including the RAM® Temp-Right™, Vent-Temp™, RAM® NFC Extender, and D size VESA base. Additional compatibility for Getac accessories include the Standard & High capacity batteries as well as the 2-Point Shoulder Strap. Take the solution a step further by taking advantage of the included 2-hole side bracket, compatible with RAM® 2-hole diamond bases for additional device mounting such as a phone or other handheld device.
hardware included
(2) Keys
(1) Side bracket for accessory mounting and strain relief
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-32 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
(2) Cable Clamp Kits
(2) Small Cable Ties
hole pattern
75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
input voltage
19VDC
output voltage
14VDC
input connector
5.5mm DC Connector
input cable length
1 Meter
output connector
(1) USB 2.0 Type A
output cable length
240mm
peripheral output
500mAh
certifications
FCC, IC, CE, UKCA, WEEE, RoHS
Additional Information
This dock is compatible with the Getac 2-point hand strap, but will not support the 4-point hand strap.
