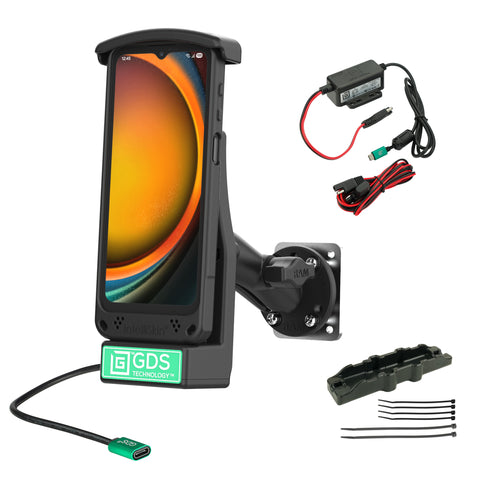

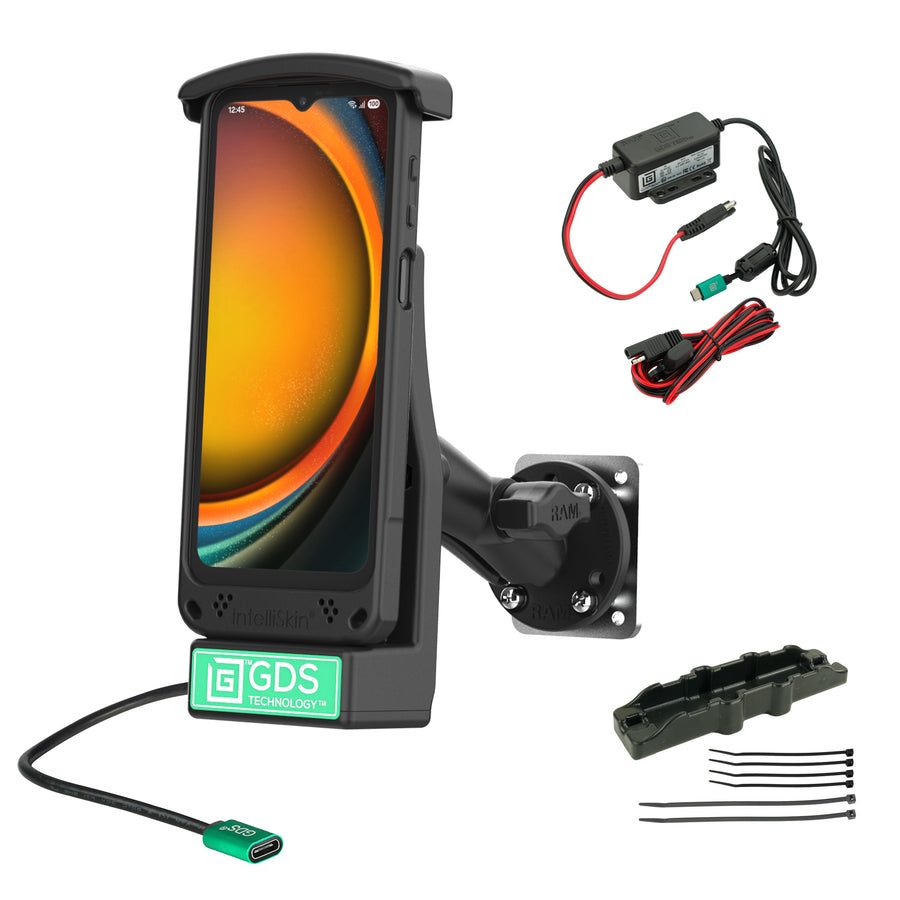

GDS® Handheld Dock & Dashboard Mount Kit for Samsung XCover7 Pro & 6 Pro
Overview
The GDS® Handheld Dock & Dashboard Mount Kit for Samsung XCover7 Pro & 6 Pro (RAM-GDS-V11-SAM84-225B2-V7C) is an all-in-one mounting kit that includes everything you need to mount your XCover7 Pro in a vehicle. This kit contains one IntelliSkin® for Samsung Galaxy XCover7 Pro & 6 Pro, a GDS® Handheld Dock with USB Type-C 2.0, a medium double ball mount with backing plate, cable clamp, and hardwire charger. Featuring GDS® Technology™ with military-grade drop protection, IntelliSkin® sleeves contain an integrated GDS® connector molded directly into the skin, preventing damage to your device’s charging port from repetitive docking. The GDS® connector enables the XCover6 Pro's charging capabilities, as well as access to data sync across the GDS® Ecosystem™. Always Protected. Always Connected.®
Features
- All-in-one vehicle mounting kit designed specifically for the Samsung XCover7 Pro & 6 Pro
- Bundle includes an IntelliSkin® for Samsung Galaxy XCover7 Pro & 6 Pro, a GDS® Handheld Dock with USB Type-C 2.0, a medium double ball mount with backing plate, cable clamp, and hardwire charger
- Integrated GDS® connector and docking contacts provide charging and data sync capabilities across the GDS® Ecosystem™ platform
- Dock is spring-loaded and specifically designed to accommodate IntelliSkin®-wrapped handheld devices
hardware included:
Assembly Hardware
Hardwire Charger with USB-C Connector
Cable Clamp Kit
socket to socket length:
3"
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size:
B Size (1")
materials:
Steel
Marine-grade aluminum
High strength composite
packaging type:
Poly Bag
input voltage:
10-30VDC
output voltage:
5.42-9VDC
output current:
2.5A max
input connector:
Bare Wire
input cable length:
2.5 Meters
output connector:
USB Type-C Male
output cable length:
1 Meter
operating temperature:
-10°C to +70°C
storage temperature:
-40°C to +70°C
regulatory:
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
certifications:
CE Certification
E-Mark Certification
RCM Certification
FCC Certification
UL 62368-1 Certificaton
Weight:
1.83 lb
