GDS® Uni-Conn™ Vehicle Bundle for Samsung Tab Active5
Overview

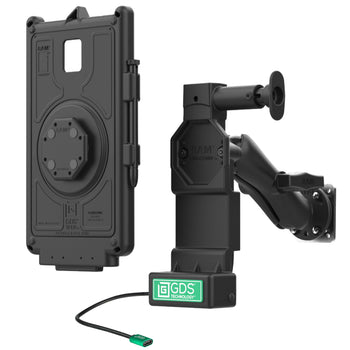

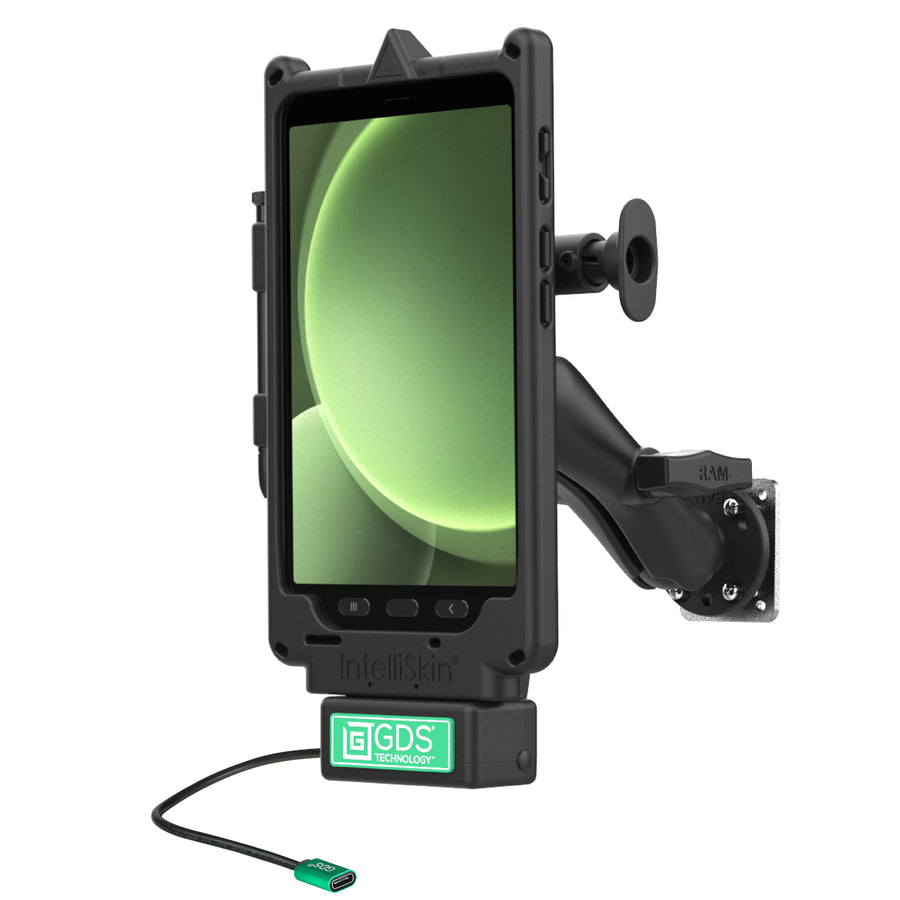

The GDS® Uni-Conn™ Vehicle Bundle for Samsung Tab Active5 (RAM-GDS-U4-SAM90-KIT1) is a comprehensive kit of everything needed to deploy the Tab Active5 in your fleet. It contains one GDS® Uni-Conn™ dock, Uni-Conn™ adapter, IntelliSkin® for the Tab Active5, and double ball mount with backing plate. The dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked. It also features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of the quick-release button frees the tablet. The GDS® Uni-Conn™ is backed by a 3-year warranty. Always Protected. Always Connected.® One Dock to Connect Them All™
Features

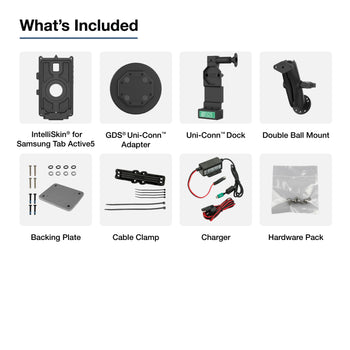

- Bundle includes GDS® Uni-Conn™ dock with quick-release button, Uni-Conn™ adapter, IntelliSkin® Next Gen for Samsung Tab Active5, C size double ball mount with medium arm, backing plate adapter, 10-30V hardwire charger with USB-C connector, and cable clamp
- Dock features GDS® Technology™ for charging capabilities via pogo pin connectors; uses USB-C female cable to connect to power
- Uni-Conn™ dock features a quick-release button for easy device insertion and removal
- Backed by a 3-year warranty
hardware included:
Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
(2) Cable Clamps
(1) Vehicle Hardwire Charger
socket to socket length:
4.66"
ball size:
C Size (1.5")
materials:
Steel
Marine-grade aluminum
High strength composite
packaging type:
Poly Bag
output voltage:
12VDC
power output:
25W
Warranty:
3 year warranty
Weight:
3.11 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
