GDS® Uni-Conn™ Vehicle Bundle + Single USB-C for Samsung Tab A11+
Overview

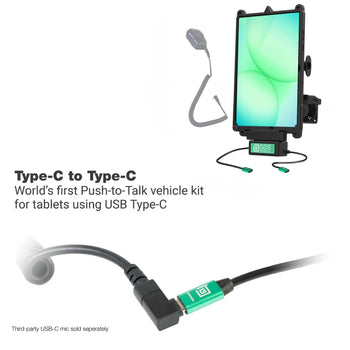

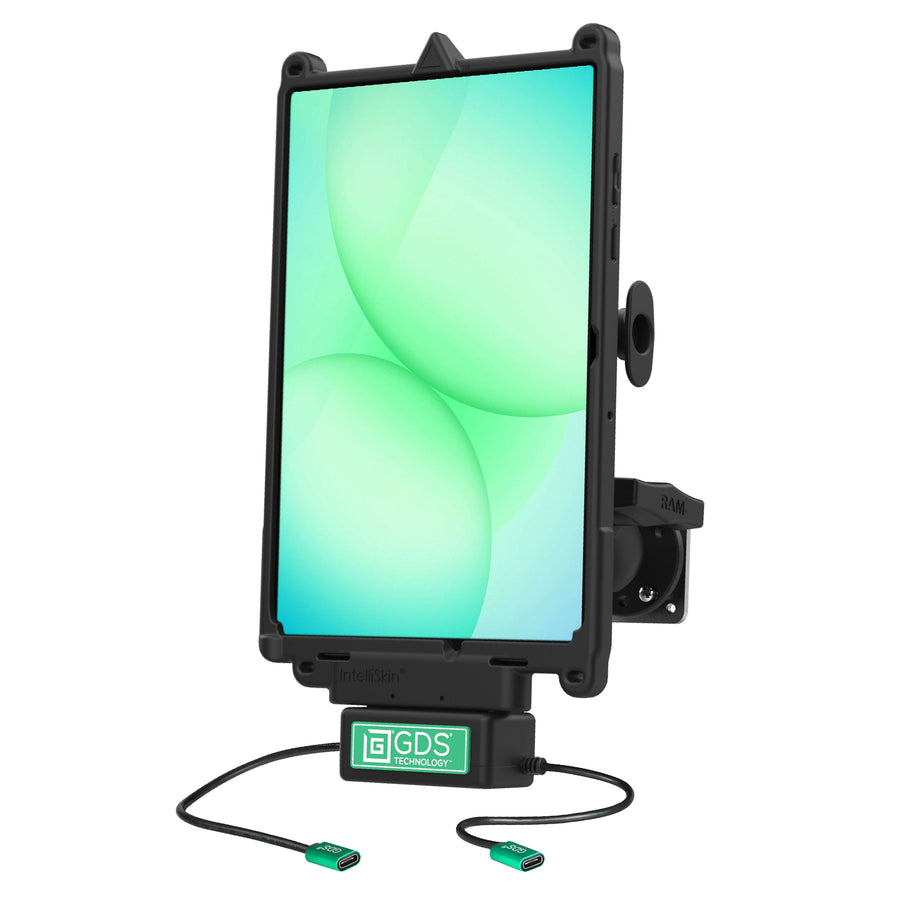

The GDS® Uni-Conn™ Vehicle Bundle with Release Button + Single USB-C for Samsung Tab A11+ (RAM-GDS-U4-SAM88-1-KIT4) is the world's first vehicle dock capable of facilitating push-to-talk communications via a USB Type-C connection. This bundle is a comprehensive kit of everything needed to deploy the Tab A11+ in your fleet. It contains one GDS® Uni-Conn™ dock with quick-release button, Uni-Conn™ adapter, IntelliSkin® for the Tab A11+, and short double ball mount with backing plate. The dock uses a USB Type-C female power connector while the USB-C pigtail allows you to connect one input device such as a mouse, keyboard, scanner gun, & more. The integrated pogo pins connect to the IntelliSkin®-wrapped device, providing power while docked. This dock features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a quick-release button frees the tablet. This Push-to-Talk Bundle is only compatible with ESChat and Zello. The GDS® Uni-Conn™ is backed by a 3-year warranty. Always Protected. Always Connected.® One Dock to Connect Them All™
Features

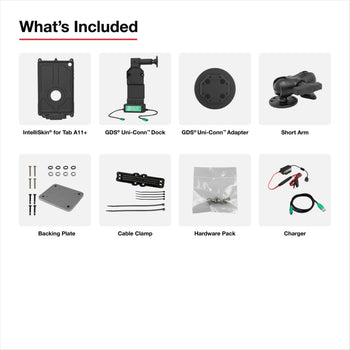

- Bundle includes the GDS® Uni-Conn™ dock with quick-release button, Uni-Conn™ adapter, IntelliSkin® Next Gen for Samsung Tab A11+, C size double ball mount with short arm, backing plate adapter, 10-30V hardwire charger with USB-A connector, USB-A male to USB-C male 2.0 entension cable, and cable clamp
- Dock features GDS® Technology™ for charging and data sync capabilities; one USB-C port connects to power and one USB-C port connects one input device
- Capable of Push-To-Talk via USB Type-C connection
- RAM® Mounts Compatible™ and compatible with the GDS® Uni-Conn™ Adapter with Hand Strap
- Backed by a 3-year warranty
hardware included:
Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
(2) Cable Clamps
(1) Vehicle Hardwire Charger
socket to socket length:
2.5"
ball size:
C Size (1.5")
materials:
Steel
Marine-grade aluminum
High strength composite
packaging type:
Box
input voltage:
10-30VDC
output voltage:
5-9VDC*
output current:
2.5A max
input connector:
USB Type-C
USB Type-C for 1 Peripheral
input cable length:
215mm
output cable length:
215mm
peripheral output:
500mA
operating temperature:
-10°C to +70°C
storage temperature:
-40°C to +70°C
regulatory:
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC
certifications:
E-Mark Certification
RCM Certification
IEC/UL 62368-1
Weight:
4.23 lb
