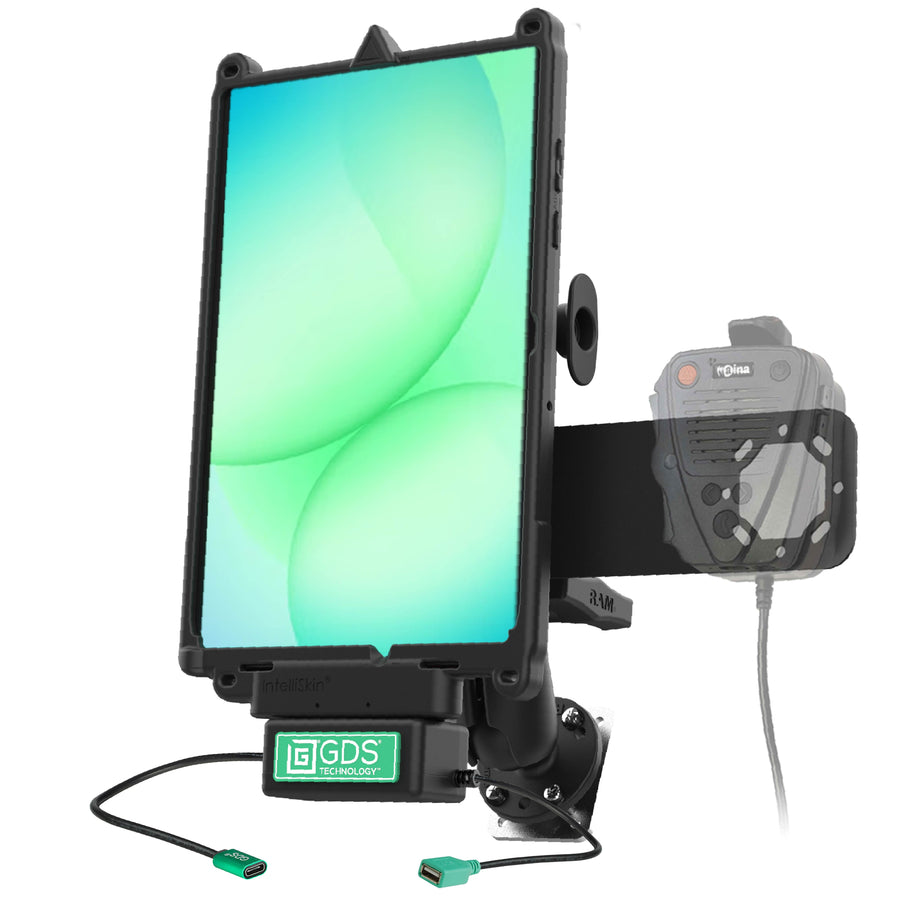

GDS® Uni-Conn™ Aina PTT Voice Responder Bundle for Samsung Tab A11+
Overview
The GDS® Uni-Conn™ Aina PTT Voice Responder Bundle with Release Button for Samsung Tab A11+ (RAM-GDS-U4-SAM88-1-KIT3) is a rugged, all-in-one Push-To-Talk (PTT) mounting solution designed to seamlessly integrate the Tab A11+ into mission-critical workflows. Ideal for field operations, public safety, and fleet management, this bundle includes a GDS® Uni-Conn™ dock with quick-release button, Uni-Conn™ adapter, IntelliSkin® for the Samsung Tab A11+, a microphone bracket, hardwire charger, and a double ball mount with backing plate for secure in-vehicle installation. The dock features a USB Type-C female power connector for direct connection to the hardwire charger, while the AINA Vehicle Charging Cradle connects via the USB-A peripheral pigtail to supply power. Bluetooth-enabled Push-To-Talk communication is supported exclusively through AINA's Voice Responder Remote Speaker Microphone (RSM), offering reliable wireless connectivity in demanding environments. Integrated pogo pins on the dock provide consistent power to the IntelliSkin®-protected Tab A11+, ensuring optimal uptime and device readiness. This PTT bundle is optimized for use with ESChat, Zello, and Kodiak, making it a powerful communication hub for modern mobile teams. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Always Protected. Always Connected.® One Dock to Connect Them All™.
Features

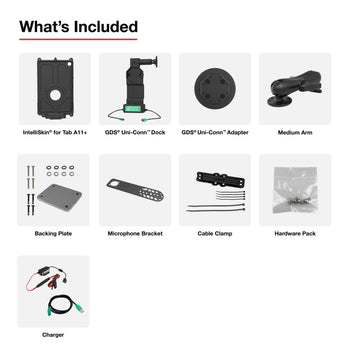

- Bundle includes GDS® Uni-Conn™ dock with quick-release button, Uni-Conn™ adapter, IntelliSkin® for the Samsung Tab A11+, a microphone bracket, 10-30V hardwire charger with USB-A connector, USB-A male to USB-C male 2.0 entension cable, cable clamp kit, and a double ball mount with backing plate
- Dock features GDS® Technology™ for charging capabilities via pogo pin connectors; power via USB-C female cable; connect AINA's charging vehicle cradle via USB-A connector
- AINA's Voice Responder RSM and Vehicle Cradle recommended for bluetooth PTT
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a 3-year warranty
hardware included:
Assembly Hardware
Microphone Bracket
(1) USB Cable
Hardwire Charger
(2) USB Cable Clamps
Dashboard Backing Plate with Hardware
socket to socket length:
4.66"
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
ball size:
C Size (1.5")
materials:
Steel
Marine-grade aluminum
High strength composite
packaging type:
Box
input voltage:
10-30VDC
output voltage:
5-9VDC*
output current:
2.5A max
input connector:
USB Type-C
USB Type A for 1 Peripheral
input cable length:
215mm
output cable length:
215mm
peripheral output:
500mA
operating temperature:
-10°C to +70°C
storage temperature:
-40°C to +70°C
regulatory:
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC
certifications:
E-Mark Certification
RCM Certification
IEC/UL 62368-1
Weight:
5.11 lb
