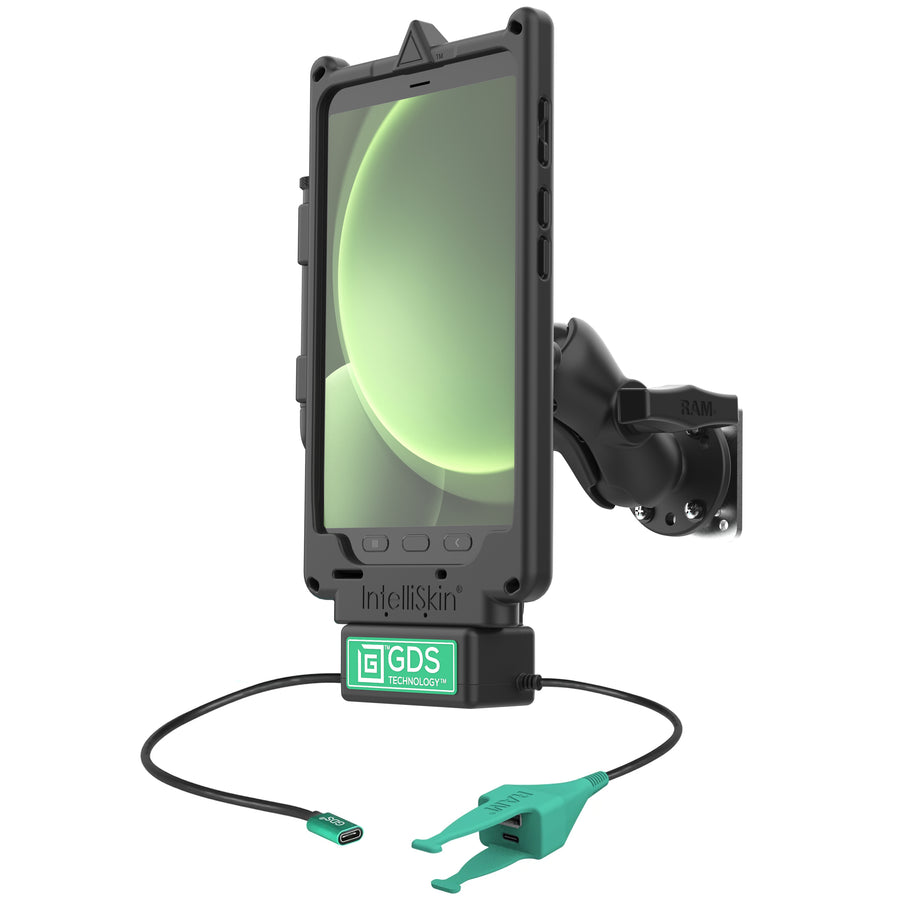

GDS® Uni-Conn™ Vehicle Bundle + USB-C & USB-A for Samsung Tab Active5
Overview
The GDS® Uni-Conn™ Vehicle Bundle + USB-C & USB-A for Samsung Tab Active5 (RAM-GDS-U1-SAM90-KIT5) is a comprehensive kit of everything needed to deploy the Tab Active5 in your fleet. It contains one GDS® Uni-Conn™ dock, Uni-Conn™ adapter, IntelliSkin® for the Tab Active5, and short double ball mount with backing plate. The dock uses a USB Type-C female power connector while the USB-A pigtail allows you to connect one input device such as a mouse, keyboard, scanner gun, & more. The integrated pogo pins connect to the IntelliSkin®-wrapped device, providing power while docked. This dock features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. The GDS® Uni-Conn™ is backed by a 3-year warranty. Warranty is void if the lever stop is not installed. Always Protected. Always Connected.® One Dock to Connect Them All™
Features

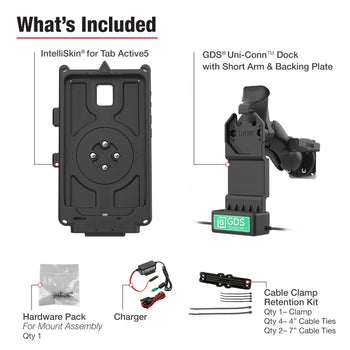

- Bundle includes the GDS® Uni-Conn™ dock, Uni-Conn adapter, IntelliSkin® Next Gen for Samsung Tab Active5, C size double ball mount with short arm, backing plate adapter, and cable clamp
- Dock features GDS® Technology™ for charging and data sync capabilities; one USB-C port connects to power and one USB-C port connects one input device
- Uni-Conn™ dock features an easy device insertion and removal
- Backed by a 3-year warranty
hardware included:
Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
(1) Cable Clamp
(1) Vehicle Hardwire Charger
socket to socket length:
2.5"
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size:
C Size (1.5")
materials:
Steel
Marine-grade aluminum
High strength composite
packaging type:
Box
output voltage:
5V - 15V @ 3A
power output:
45W
input connector:
USB Type-C (Power In)
input cable length:
215mm
output connector:
(1) USB Type-C & (1) USB Type-A (Peripheral)
output cable length:
215mm
peripheral output:
900mA (per port)
Warranty:
3 year warranty
Weight:
2.93 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
