GDS® Uni-Conn™ Klein VALOR PTT Vehicle Bundle for Samsung Tab Active5
Part #: RAM-GDS-U1-SAM90-KIT4 UPC: 793442021299 Patented & Pats. Pend. Features Bundle includes the GDS® Uni-Conn™ dock, IntelliSkin® Next Gen for Samsung Tab Active5, GDS® Modular 10-30V Hardwire Charger, C size double ball mount with short arm, backing plate adapter, and cable clamp Capable of Push-To-Talk via USB Type-C connection; compatible with the Klein Electronics VALOR Microphone Dock features GDS® Technology™ for charging capabilities; uses USB-C port to connect to power RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment Backed by a 3-year warranty

GDS® Uni-Conn™ Klein VALOR PTT Vehicle Bundle for Samsung Tab Active5

Part #: RAM-GDS-U1-SAM90-KIT4 UPC: 793442021299 Patented & Pats. Pend.

Features

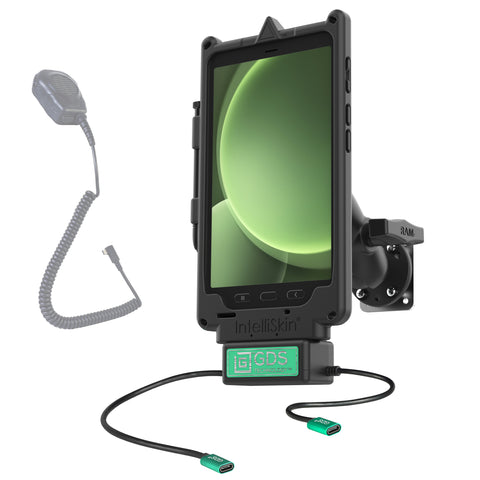

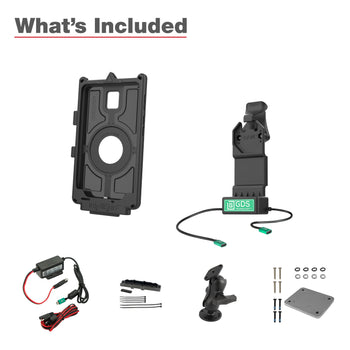

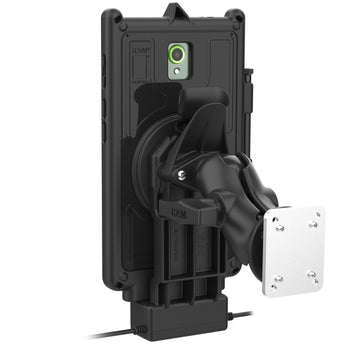

Bundle includes the GDS® Uni-Conn™ dock, IntelliSkin® Next Gen for Samsung Tab Active5, GDS® Modular 10-30V Hardwire Charger, C size double ball mount with short arm, backing plate adapter, and cable clamp

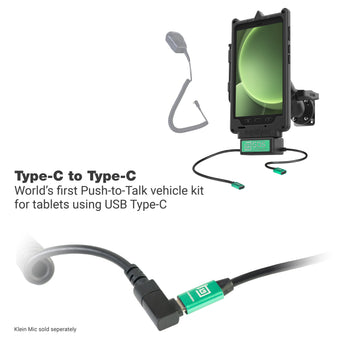

Capable of Push-To-Talk via USB Type-C connection; compatible with the Klein Electronics VALOR Microphone
Dock features GDS® Technology™ for charging capabilities; uses USB-C port to connect to power
RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
Backed by a 3-year warranty

GDS® Uni-Conn™ Klein VALOR PTT Vehicle Bundle for Samsung Tab Active5

Product Information
Overview	The GDS® Uni-Conn™ Klein VALOR PTT Vehicle Bundle for Samsung Tab Active5 (RAM-GDS-U1-SAM90-KIT4) is a revolutionary vehicle dock capable of facilitating push-to-talk communications via a USB Type-C connection, made in partnership with Klein Electronics, Inc. Designed to support the Samsung Galaxy Tab Active5 in an IntelliSkin® Next Gen protective sleeve, enabling users to take advantage of the entire GDS® Ecosystem™. The GDS® Uni-Conn™ dock uses a USB Type-C power connector to support high speed charging capabilities for the Tab Active5. This solution includes the GDS® Uni-Conn™ dock, Uni-Conn™ Adapter, IntelliSkin® Next Gen for Samsung Tab Active5, GDS® Modular 10-30V Hardwire Charger, C size double ball mount with short arm, backing plate adapter, and cable clamp. Klein Electronics Valor Remote Speaker Microphone (RSM) sold separately. This Push-to-Talk Bundle is only compatible with ESChat and Zello. The GDS® Uni-Conn™ dock is backed by a 3-year warranty. One Dock to Connect Them All™ Always Protected. Always Connected.®

Product Information

Overview

The GDS® Uni-Conn™ Klein VALOR PTT Vehicle Bundle for Samsung Tab Active5 (RAM-GDS-U1-SAM90-KIT4) is a revolutionary vehicle dock capable of facilitating push-to-talk communications via a USB Type-C connection, made in partnership with Klein Electronics, Inc. Designed to support the Samsung Galaxy Tab Active5 in an IntelliSkin® Next Gen protective sleeve, enabling users to take advantage of the entire GDS® Ecosystem™. The GDS® Uni-Conn™ dock uses a USB Type-C power connector to support high speed charging capabilities for the Tab Active5. This solution includes the GDS® Uni-Conn™ dock, Uni-Conn™ Adapter, IntelliSkin® Next Gen for Samsung Tab Active5, GDS® Modular 10-30V Hardwire Charger, C size double ball mount with short arm, backing plate adapter, and cable clamp. Klein Electronics Valor Remote Speaker Microphone (RSM) sold separately. This Push-to-Talk Bundle is only compatible with ESChat and Zello. The GDS® Uni-Conn™ dock is backed by a 3-year warranty. One Dock to Connect Them All™ Always Protected. Always Connected.®

Specifications
hardware included	Assembly Hardware (1) 2.10" x 2.60" Steel Backing Plate (4) #8-32 x 1" Screws (4) #8 Split Lock Washers (4) #8 Flat Washers (1) Cable Clamp (1) Vehicle Hardwire Charger
socket to socket length	2.5"
hole pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
ball size	C Size (1.5")
materials	Steel Marine-grade aluminum High strength composite
packaging type	Box
output voltage	5V - 12V @ 3A max
power output	15W
input connector	USB Type-C (Power In)
input cable length	215mm
output connector	USB Type-C (Peripheral)
output cable length	215mm
Weight	4.24 lb
Additional Information	This Push-to-Talk bundle is only compatible with ESChat and Zello.

Video Thumbnail — YouTube video thumbnail for Uuf9odZCCmE

Patented & Pats. Pend.

GDS® Uni-Conn™ Klein VALOR PTT Vehicle Bundle for Samsung Tab Active5

One Dock to Connect Them All™

Part#: RAM-GDS-U1-SAM90-KIT4

UPC: 793442021299

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$446.99

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Features

Bundle includes the GDS® Uni-Conn™ dock, IntelliSkin® Next Gen for Samsung Tab Active5, GDS® Modular 10-30V Hardwire Charger, C size double ball mount with short arm, backing plate adapter, and cable clamp
Capable of Push-To-Talk via USB Type-C connection; compatible with the Klein Electronics VALOR Microphone
Dock features GDS® Technology™ for charging capabilities; uses USB-C port to connect to power
RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
Backed by a 3-year warranty

hardware included:

Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
(1) Cable Clamp
(1) Vehicle Hardwire Charger

socket to socket length:

2.5"

hole pattern:

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

ball size:

C Size (1.5")

materials:

Steel
Marine-grade aluminum
High strength composite

packaging type:

Box

output voltage:

5V - 12V @ 3A max

power output:

15W

input connector:

USB Type-C (Power In)

input cable length:

215mm

output connector:

USB Type-C (Peripheral)

output cable length:

215mm

Weight:

4.24 lb

Additional Information:

This Push-to-Talk bundle is only compatible with ESChat and Zello.
