IntelliSkin® Next Gen for Samsung Tab Active5 (D Shape & Rear Pads)
One Dock to Connect Them All™
Overview

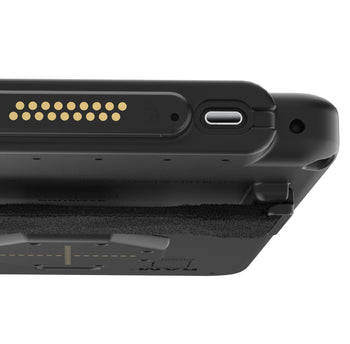

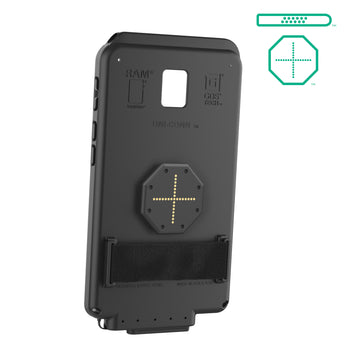

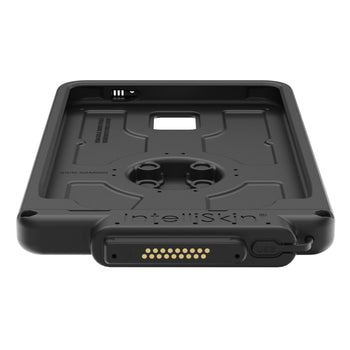

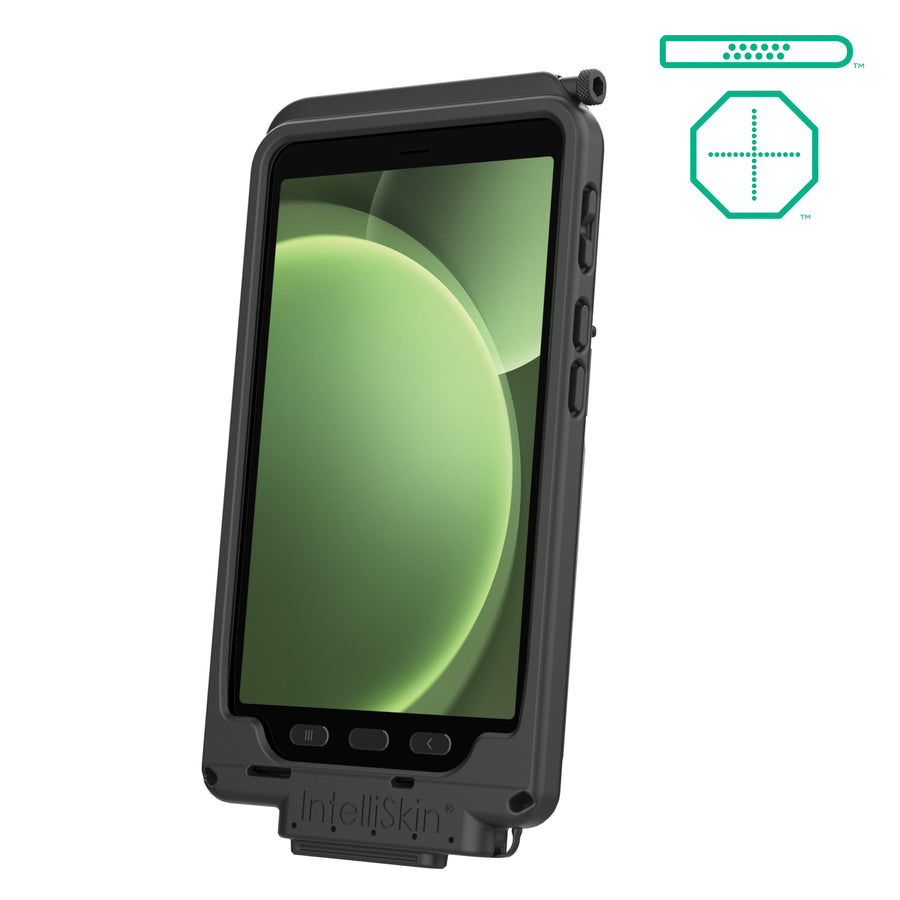

The IntelliSkin® Next Gen for Samsung Tab Active5 (D Shape & Rear Pads) (RAM-GDS-SKIN-SAM99DB-NG) is an insert molded design that combines a hard plastic shell with soft, shock-absorbing rubber and two integrated GDS® connectors that upgrades the device's USB-C port to flat, ruggedized pogo pads.The dual connection styles are the rear pogo pads on the GDS® Uni-Conn™ Adapter and the Distinctive D Shape bottom platform. The flat, ruggedized pogo pad contacts are made for repetitive docking to protect the device's port and collect less dirt making them easier to clean. An integrated USB Type-C connector at the bottom of the case allows for device charging even when you don’t have a GDS® Dock™ available. This sleeve features military-grade drop protection and includes a dedicated slot for the S Pen. The IntelliSkin® Next Gen for Samsung Tab Active5 (D Shape & Rear Pads) is compatible with all GDS® Uni-Conn™ docks. IntelliSkin® is not compatible with the GDS® Tough-Dock™ product line. One Dock to Connect Them All™. Always Protected. Always Connected.®
Features
- Protective sleeve features GDS® Technology™ and combines a hard plastic shell with soft, shock-absorbing rubber
- Dual integrated GDS® connectors—rear pogo pads and Distinctive D Shape pogo pads
- GDS® connector and docking contacts provide charging and data sync capabilities
- External USB Type-C connector allows for charging capabilities when GDS® Uni-Conn™ docks are not available
- Backed by a 3-year warranty
materials:
Polycarbonate and Thermoplastic Elastomers
packaging type:
Retail Box
transfer speed:
Up to USB 3.1 @ 5Gbps (via D-Shape Contacts)*
Up to USB 2.0 @ 480Mbps (via External USB-C Port or Rear Contacts)
ports:
External USB-C 2.0
Warranty:
3 year warranty
Weight:
0.71 lb
Additional Information:
*USB 3.1 is the maximum transfer speed that the IntelliSkin® can support, but actual transfer speeds will vary based on selected docks, chargers, and device limitations. Samsung Tab Active5 allows a maximum transfer speed of USB 2.0.
This product does not contain a positioning marker and will not dock in any GDS® Tough-Dock™. For vehicle docking, see GDS® Uni-Conn™ Dock options.
This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options here.
