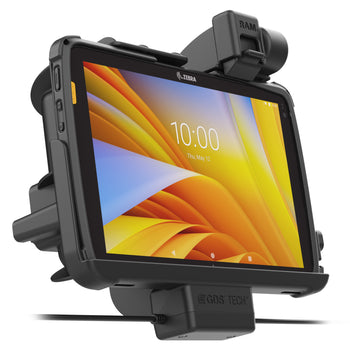

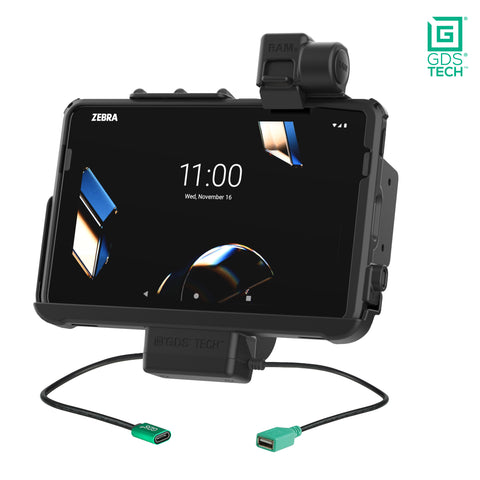

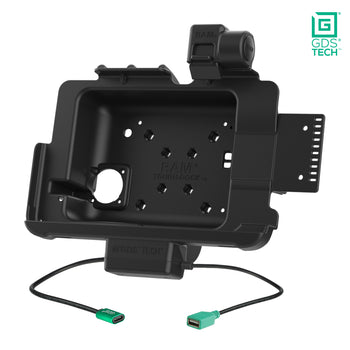

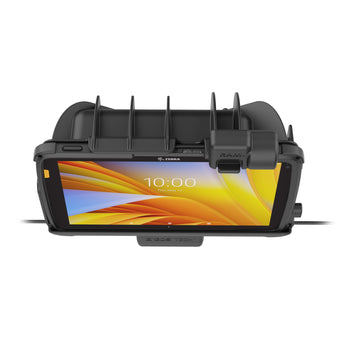

GDS® Power + Data Dock with Latch for Zebra ET4x 10" Tablet
Always Protected. Always Connected.®
$244.99
Overview
For frequent docking and undocking of the Zebra ET40 & ET45 10" tablets wrapped in an IntelliSkin® protective sleeve, this form-fit GDS® vehicle dock (RAM-GDS-DOCKNLL-ZE21PDU) features a top latch design for securing the tablet without wear and tear on the dock itself. Power is provided via a USB Type-C connector and allows you to keep the device charged through the pogo pin contacts when the IntelliSkin®-wrapped ET4x 10" is docked. A single USB Type-A pigtail connector is provided for adding one additional input device. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories like the GDS® Roto-Mag™ and GDS® Hand-Stand™. To mount this dock, pair any RAM® 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the GDS® Ecosystem™ and the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device. Always Protected. Always Connected.®
Features
- Powered latch dock featuring GDS® Technology™ with data and charging capabilities for the Zebra ET40 & ET45 10" enterprise tablets with IntelliSkin® Next Generation protective sleeve via USB Type-C for power and USB Type A connector for adding a peripheral; MIL-STD 810G Shock and Vibration tested
- When connected to a power source via USB Type-C connector, integrated pogo pins provide power to the IntelliSkin-wrapped ET4x while docked

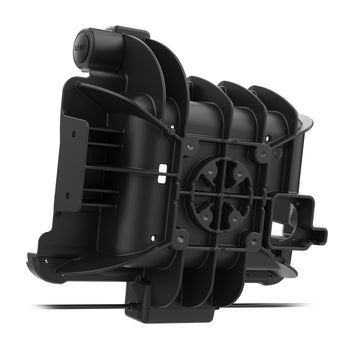

- Space in the back of the dock to accommodate tablet add-ons such as the Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories

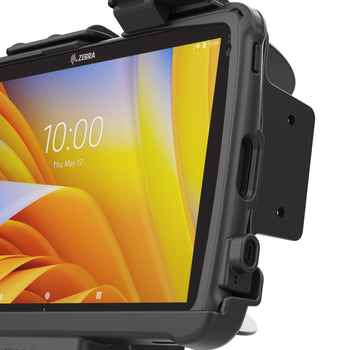

- Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
- Backed by a 3-year warranty
hardware included:
(1) Side bracket for accessory mounting
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
(2) Small Cable Ties
hole pattern:
75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"
materials:
High strength composite
packaging type:
Poly Bag
output voltage:
5V - 20V @ 3A
power output:
60W
input connector:
USB Type-C
input cable length:
215mm
output connector:
USB 2.0 Type A
output cable length:
215mm
peripheral output:
500mAh
transfer speed:
12Mbps
certifications:
RoHS
WEEE
CE
UKCA
Warranty:
3 year warranty
Weight:
1.65 lb
Additional Information:
IntelliSkin® is required for this dock. See RAM-GDS-SKIN-ZE21C-NG for compatible IntelliSkin®.
