GDS® Powered Dock with Latch for Zebra ET4x 8" Tablet with IntelliSkin® | |
---|---|
Part #:
RAM-GDS-DOCKNLL-ZE20PU
UPC:
793442015632
Patented & Pats. Pend.
Features
|
![]() |
Product Information | |
---|---|

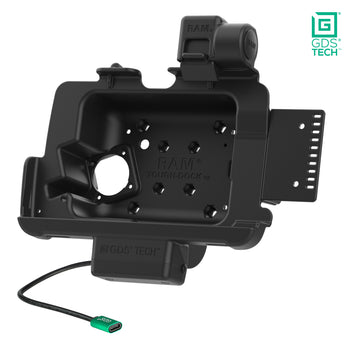

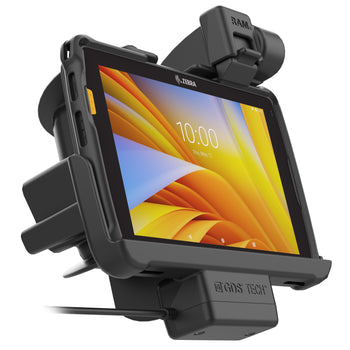

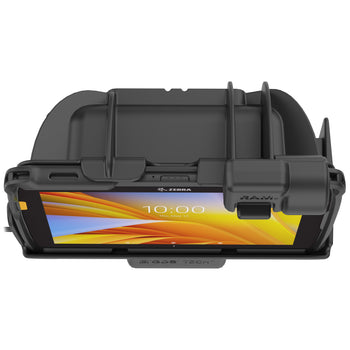

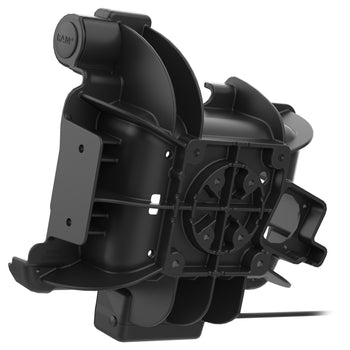

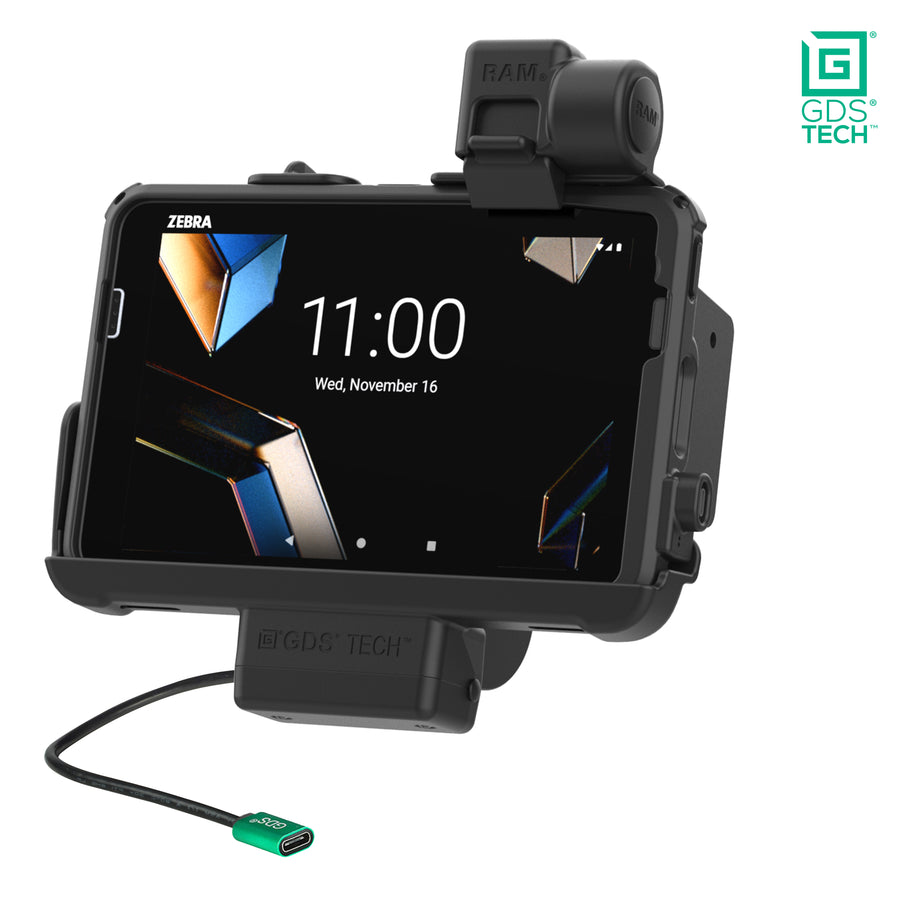

Overview | For frequent docking and undocking of the Zebra ET40 & ET45 8" tablets wrapped in an IntelliSkin® protective sleeve, this form-fit GDS® vehicle dock (RAM-GDS-DOCKNLL-ZE20PU) features a top latch design for securing the tablet without wear and tear on the dock itself. Power is provided via a USB Type-C connector and allows you to keep the device charged through the pogo pin contacts when the IntelliSkin®-wrapped ET4x 8" is docked. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories like the GDS® Roto-Mag™ and GDS® Hand-Stand™. To mount this dock, pair any C and D size RAM® 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the GDS® Ecosystem™ and the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device. Always Protected. Always Connected.® |
Specifications | |
---|---|
hardware included | (1) Side bracket for accessory mounting (4) #8-32 x 5/8” Machine Screws (2) #8-32 x 1/2” Machine Screws (6) #8-32 Nylock Nuts (4) #10-24 x 5/8” Machine Screws (4) #10-24 Nylock Nuts (2) Small Cable Ties |
hole pattern | 75 x 75mm VESA 4-Hole AMPS: 1.181" x 1.496" |
materials | High strength composite |
packaging type | Poly Bag |
output voltage | 5V - 20V @ 3A |
power output | 60W |
input connector | USB Type-C |
input cable length | 215mm |
certifications | RoHS WEEE CE UKCA |
Warranty | 3 year warranty |
Weight | 1.42 lb |
Additional Information | IntelliSkin® is required for this dock. See RAM-GDS-SKIN-ZE20C-NG for compatible IntelliSkin®. |
Compatible Devices
Zebra
ET40 8" Tablet with IntelliSkin® Next Gen
ET45 8" Tablet with IntelliSkin® Next Gen
Compatible Devices
Zebra
ET40 8" Tablet with IntelliSkin® Next Gen
ET45 8" Tablet with IntelliSkin® Next Gen

Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAM-GDS-DOCKNLL-ZE20PU!
We'll email you once the item is available.
Overview
For frequent docking and undocking of the Zebra ET40 & ET45 8" tablets wrapped in an IntelliSkin® protective sleeve, this form-fit GDS® vehicle dock (RAM-GDS-DOCKNLL-ZE20PU) features a top latch design for securing the tablet without wear and tear on the dock itself. Power is provided via a USB Type-C connector and allows you to keep the device charged through the pogo pin contacts when the IntelliSkin®-wrapped ET4x 8" is docked. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories like the GDS® Roto-Mag™ and GDS® Hand-Stand™. To mount this dock, pair any C and D size RAM® 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the GDS® Ecosystem™ and the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device. Always Protected. Always Connected.®
Features
- Form-fit dock designed specifically for the Zebra ET40 & ET45 8" tablets with IntelliSkin® protective sleeve, featuring GDS® Technology™
- When connected to a power source via USB Type-C connector, integrated pogo pins provide power to the IntelliSkin-wrapped ET4x while docked
- Space in the back of the dock to accommodate tablet add-ons such as the Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories

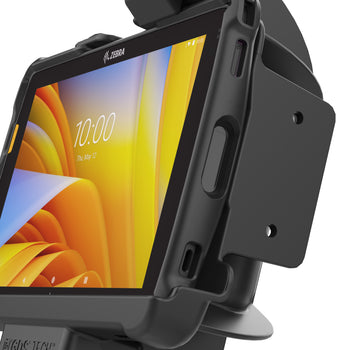

- Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
- Backed by a 3-year warranty
hardware included:
(1) Side bracket for accessory mounting
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
(2) Small Cable Ties
hole pattern:
75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"
materials:
High strength composite
packaging type:
Poly Bag
output voltage:
5V - 20V @ 3A
power output:
60W
input connector:
USB Type-C
input cable length:
215mm
certifications:
RoHS
WEEE
CE
UKCA
Warranty:
3 year warranty
Weight:
1.42 lb
Additional Information:
IntelliSkin® is required for this dock. See RAM-GDS-SKIN-ZE20C-NG for compatible IntelliSkin®.
