Patented & Pats. Pend.

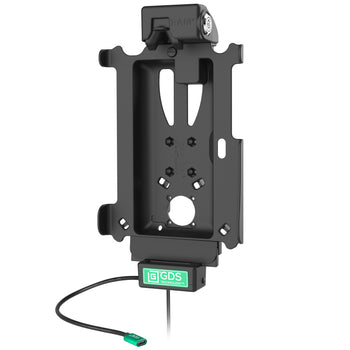

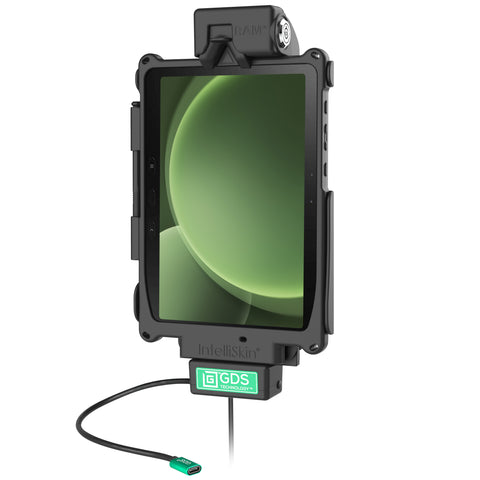

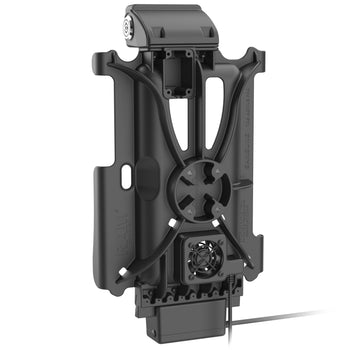

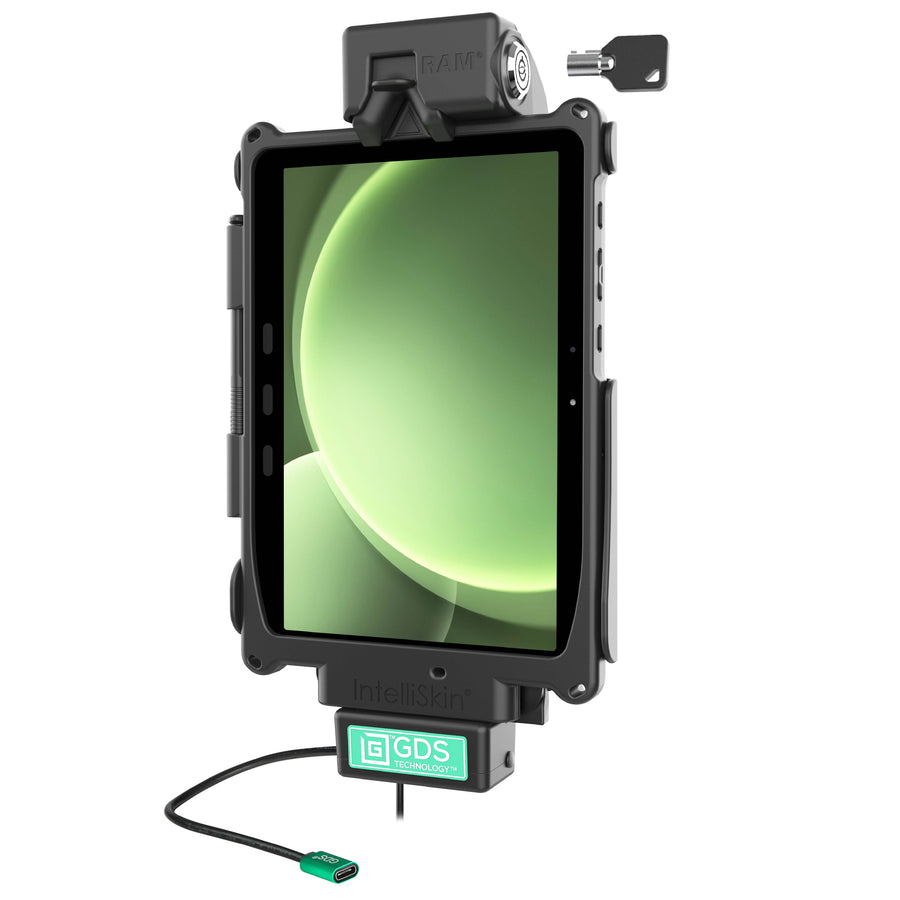

Locking GDS® Cool-Dock™ for Samsung Tab Active4 Pro
Always Protected. Always Connected.®
Part#: RAM-GDS-DOCKLF-SAM54NCPU
UPC: 793442019869
$281.99

Overview

The GDS® Cool-Dock™ is the upgraded version of the GDS® Tough-Dock™ including a key-locking system and a built-in 12-VDC Axial cooling fan with a 2.2 meter long hardwire charge. The GDS® Cool-Dock™ is the turnkey vehicle dock in the GDS® Tech™ line of vehicle docks designed to support the Samsung Galaxy Tab Active4 Pro and Tab Active Pro in a IntelliSkin® Next Gen protective sleeve for your fleet. Using a USB Type-C power connector, the GDS® Cool-Dock™ supports high speed charging capabilities for the Samsung Galaxy Tab Active4 Pro and Tab Active Pro. The GDS® Cool-Dock™ is designed with housing that accomodates the RAM® NFC Extender, is compatible with RAM® ball and socket systems, and requires a 4-hole AMPS pattern ball base. The GDS® Cool-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®

Features

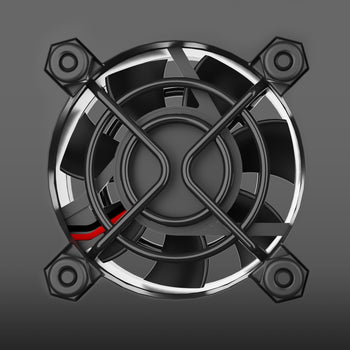

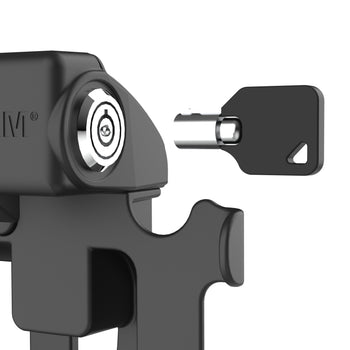

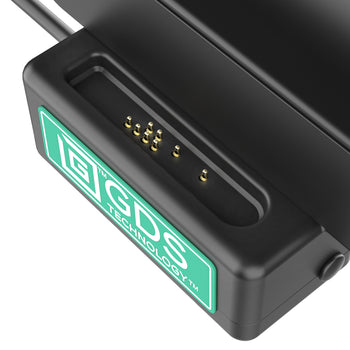

  • Spring-loaded key-locking vehicle dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high speed charging; Includes built-in 12-VDC Axial cooling fan with 2.2m long hardwire power cable and SAE quick disconnect for hardwire installation
  • Designed specifically for the Samsung Galaxy Tab Active4 Pro and Tab Active Pro wrapped in an IntelliSkin® Next Gen protective sleeve
  • Incorporated into the bottom docking cup is a USB Type-C Female connector for providing high speed charging to the dock
  • RAM® Mounts Compatible™ including RAM® NFC Extender and GDS® Hand-Stand™ Hand Strap and Kickstand
  • Backed by a 3-year warranty

hardware included:

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(2) Keys
(1) USB Type-C to Type-A Cable

hole pattern:

4-Hole AMPS: 1.181" x 1.496"

materials:

High strength composite

packaging type:

Poly Bag

output voltage:

5V - 12V @ 3A

power output:

15W

input connector:

USB Type-C

Warranty:

3 year warranty

Weight:

1.81 lb

Additional Information:

This product will not support the "No Battery Mode" function of the Tab Active4 Pro. To support "No Battery Mode", see RAM® Tough-Case™ options here.
