Patented & Pats. Pend.
Locking GDS® Cool-Dock™ for iPad Pro 12.9 3rd - 6th Gen, Pro 13 & Air 13
Always Protected. Always Connected.®
Part#: RAM-GDS-DOCKLF-AP37CPU
UPC: 793442216367
$271.49

Overview

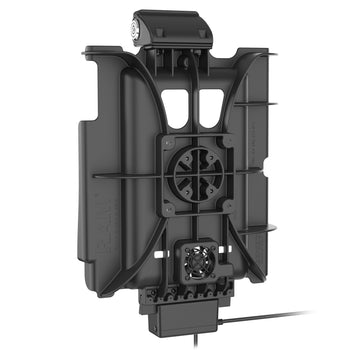

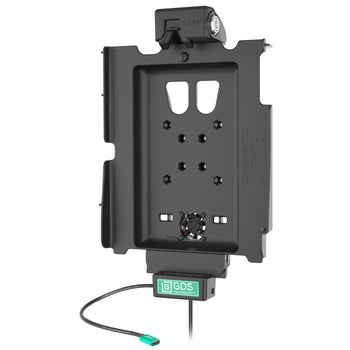

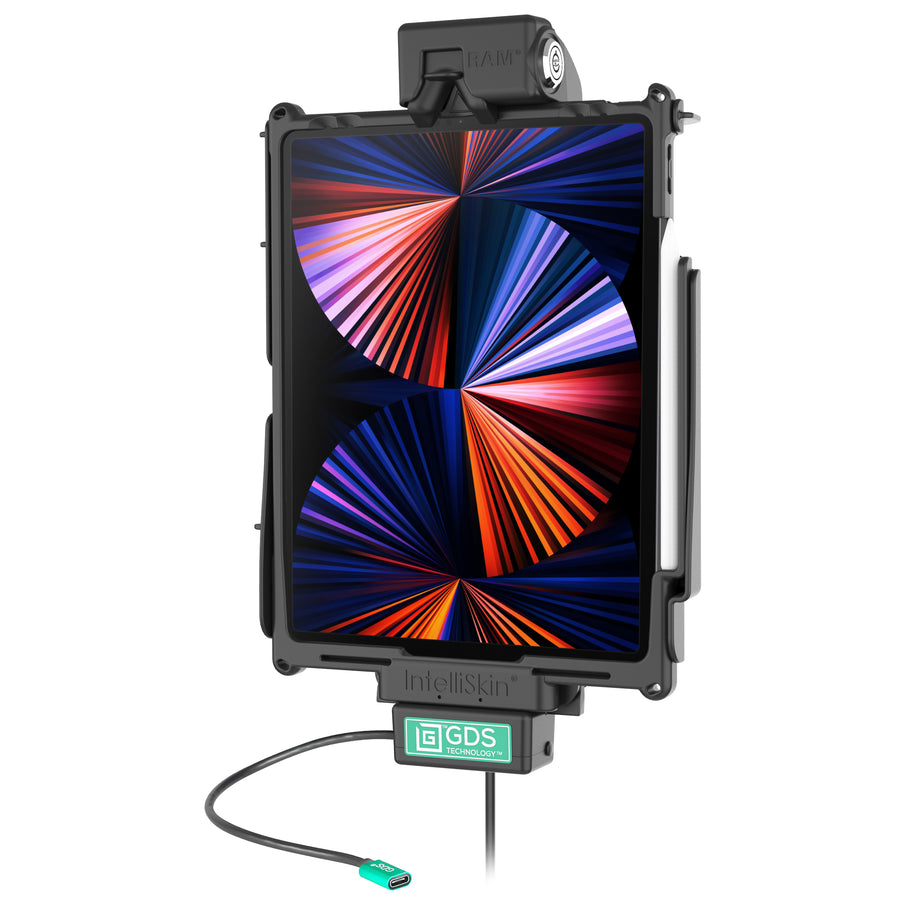

The GDS® Cool-Dock™ is the upgraded version of the GDS® Tough-Dock™ including a key-locking system and a built-in 12-VDC Axial cooling fan with a 2.2 meter long hardwire charge. The GDS® Cool-Dock™ is the turnkey vehicle dock in the GDS® Tech™ line of vehicle docks designed to support the Apple iPad Pro 12.9 (3rd - 6th Gen) in an IntelliSkin® Next Gen protective sleeve for your fleet. Using a USB Type-C power connector, the GDS® Cool-Dock™ supports high-speed charging capabilities for the Apple iPad Pro 12.9 (3rd - 6th Gen). The GDS® Cool-Dock™ is compatible with RAM® ball and socket systems and requires a 4-hole AMPS pattern ball adapter. The GDS® Cool-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®

Features

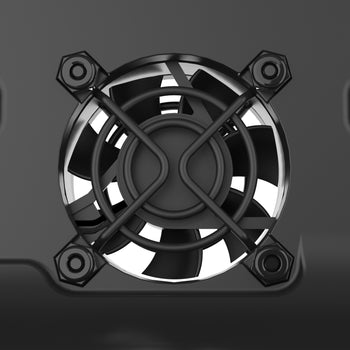

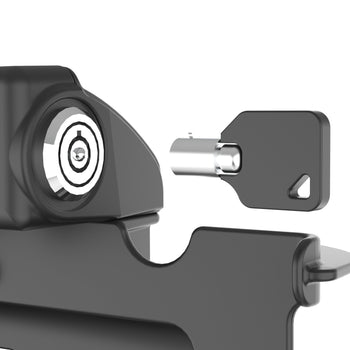

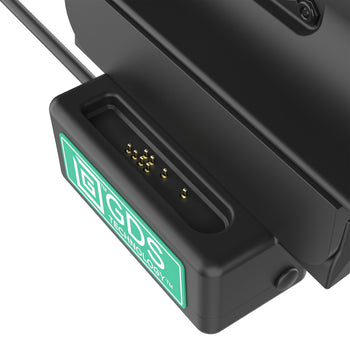

  • Spring-loaded, key-locking vehicle dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high speed charging; includes built-in 12-VDC Axial cooling fan with 2.2m long hardwire power cable and SAE quick disconnect for hardwire installation
  • Designed specifically for the Apple iPad Pro 12.9 3rd - 6th Gen wrapped in an IntelliSkin® Next Gen protective sleeve
  • Bottom docking cup features a USB Type-C Female connector for providing high speed charging to the dock
  • RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
  • Backed by a 3-year warranty

hardware included:

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(2) Keys

hole pattern:

75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"

materials:

High strength composite

packaging type:

Poly Bag

output voltage:

5V - 12V @ 3A

power output:

15W

input connector:

USB Type-C

Warranty:

3 year warranty

Weight:

1.92 lb

Additional Information:

Power Delivery (PD) charger is required to supply sufficient power to this device. See Power Delivery charging accessories in the "Complete Your Solution" tab.

Print

Questions & Answers

Have a Question?

Ask a Question

  • what is the ip rating, for water and corrosion

    Wedo not have / provide an IP rating for the GDS dock due to the pogo pins beingmovable parts.

  • Can it be used in landscape on a airplane panel?

    Yes, all of the Cool Docks like the RAM-GDS-DOCKLF-AP37CPU can be used in landscape mode.
