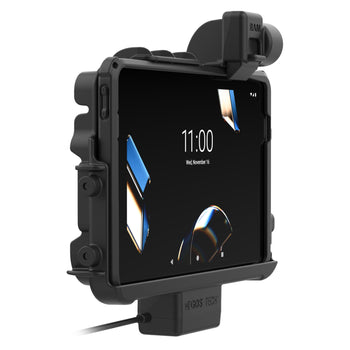

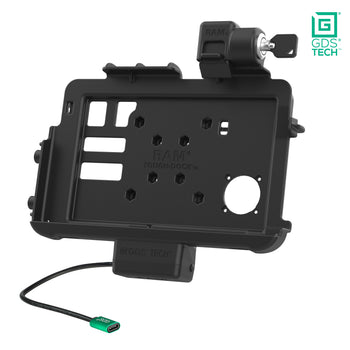

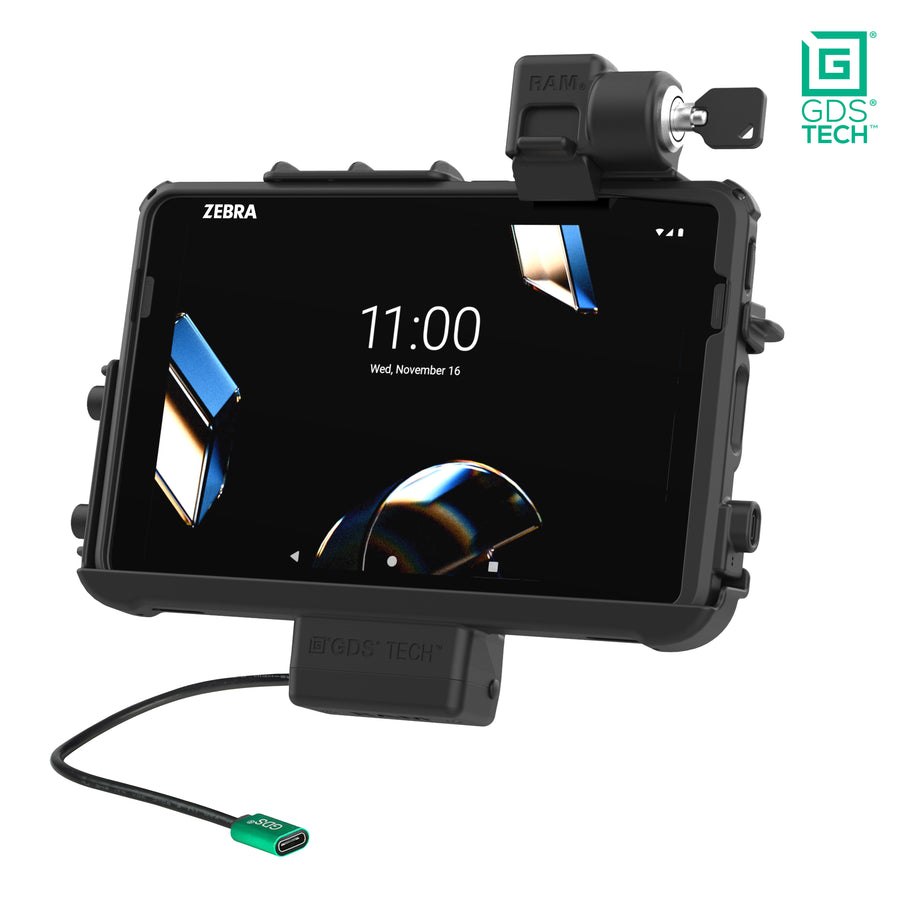

Locking GDS® Thin-Dock™ for Zebra ET401 & ET4x 10" with IntelliSkin®
Always Protected. Always Connected.®
$234.99
Overview
The Locking GDS® Thin-Dock™ for Zebra ET401 & ET4x 10" with IntelliSkin® (RAM-GDS-DOCKL-ZE47PU) delivers a low-profile, 2.45"-deep design reinforced with a durable metal plate, ideal for applications where space is limited. This vehicle dock is purpose-built for the Zebra ET401, ET40, and ET45 10" enterprise tablets when used with an IntelliSkin® protective sleeve, ensuring a reliable, long-lasting mounting and charging solution. Engineered for efficiency, the Thin-Dock™ keeps your tablet powered through pogo pin contacts while docked, with power supplied via the dock’s USB Type-C connector. The design also maintains access to the tablet’s side scanning function, making it a strong fit for field service, warehousing, retail, transportation, and other data-capture environments. Because of its compact footprint, this dock does not support add-ons like the Zebra Expansion Back or PowerPack Battery. For mounting flexibility, the dock is compatible with both RAM® C and D size 4-hole AMPS pattern bases, ideal for pairing with a double socket arm to complete your vehicle or workstation setup. This dock also features integrated attachment points for the RAM® Vent-Temp™, a temperature control accessory, and the RAM® NFC Extender. Always Protected. Always Connected.®
Features
- Form-fit powered dock designed specifically for the Zebra ET401, ET40, and ET45 wrapped in an IntelliSkin®
- Slim-profile design at 2.45" depth with metal reinforcement plate

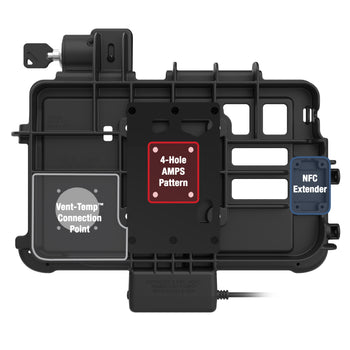

- Compatible with C and D size RAM® 4-hole AMPS pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Compatible with RAM® Vent-Temp™ and NFC Extender
- Backed by a 3-year warranty
hardware included:
(2) Keys
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(4) #10-24 x 5/8" Machine Screws
(4) #10-24 Nylock Nuts
(1) Cable Clamp
hole pattern:
75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"
materials:
High strength composite
packaging type:
Poly Bag
output voltage:
5V - 15V @ 3A
power output:
45W
input connector:
USB Type-C
input cable length:
215mm
certifications:
RoHS
WEEE
CE
UKCA
Warranty:
3 year warranty
Weight:
1.35 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
