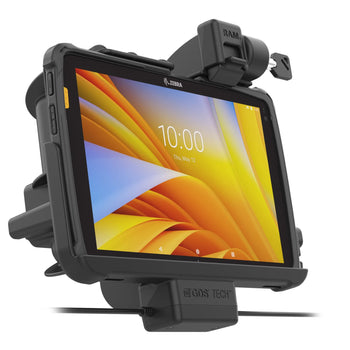

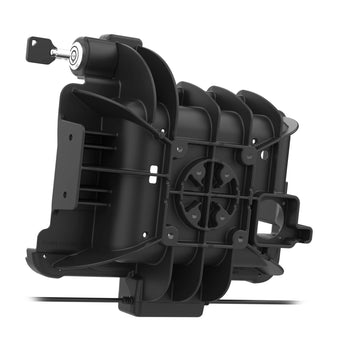

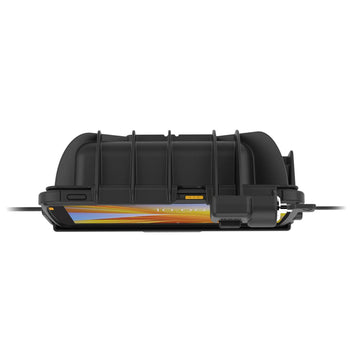

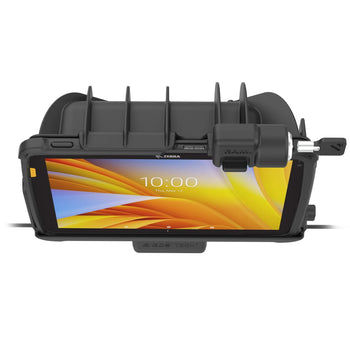

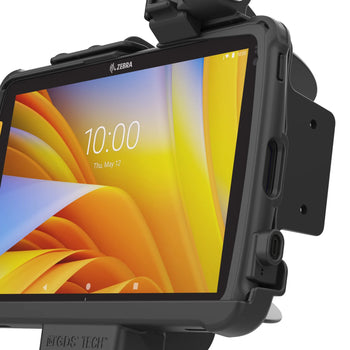

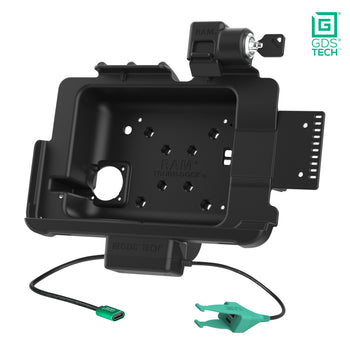

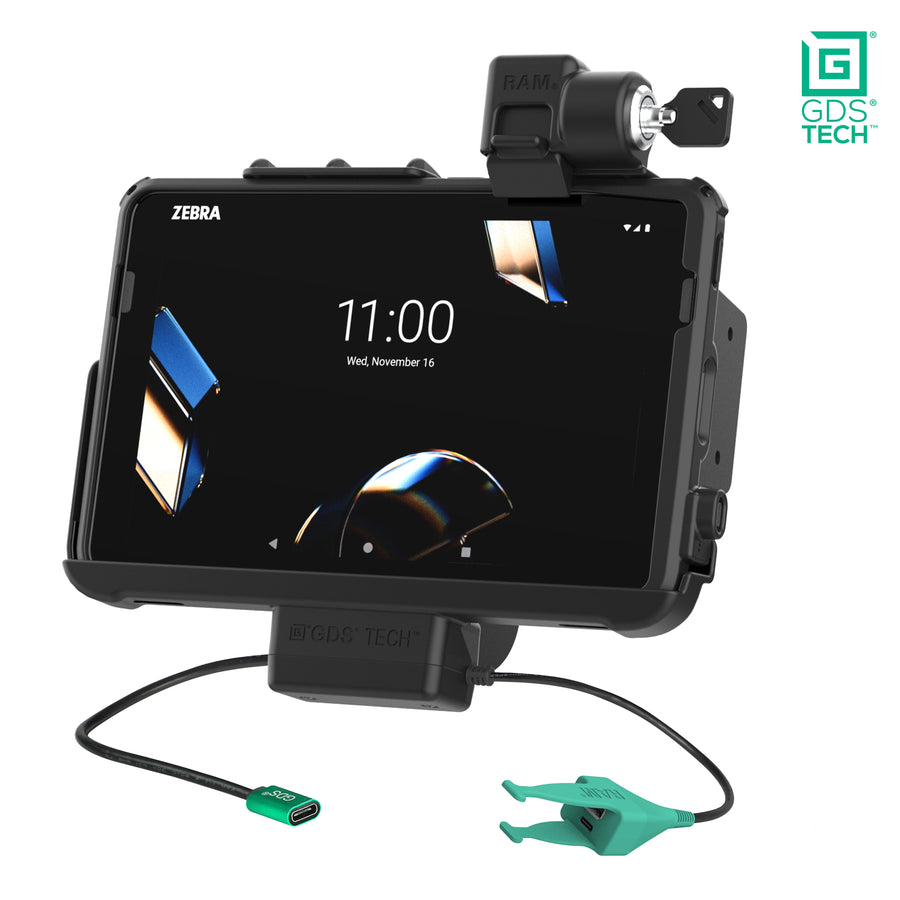

Locking GDS® Dock + USB-A & RJ45 for Zebra ET401 10" with IntelliSkin®
Always Protected. Always Connected.®
$394.49
Overview
The Locking GDS® Power + Dual USB-A & RJ45 Dock (RAM-GDS-DOCKL-ZE21-RJ45AU) features GDS® Technology™ for data and charging capabilities and a key lock for theft deterrence. The GDS® Vehicle Dock works with the Zebra ET401, ET40, and ET45 10" enterprise tablets with an IntelliSkin® protective sleeve. This dock allows you to connect one peripheral and maintain a secure internet connection while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's USB Type-C connector, while peripheral support is provided by the built-in dual USB Type-A and RJ45 (ethernet) cord. The dock also allows the tablet's scanning function to work on the side, as well as tablet add-ons such as the Zebra Expansion Back and PowerPack Battery. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone or other handheld device. Always Protected. Always Connected.®
Features
- Locking powered dock featuring GDS® Technology™ with data and charging capabilities for the Zebra ET401, and ET40 & ET45 10" tablets with IntelliSkin® Next Gen protective sleeve via USB Type-C for power and dual USB Type A & RJ45 (ethernet) connector; MIL-STD 810G Shock and Vibration tested
- When connected to a power source, integrated pogo pins provide power to the device while docked; Dock accommodates tablet add-ons such as the Expansion Back and PowerPack Battery; tablet scanning works while tablet is docked
- Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
- Backed by a 3-year warranty
hardware included:
(2) Keys
(1) Side bracket for accessory mounting
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
(2) Small Cable Ties
hole pattern:
75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"
materials:
High strength composite
packaging type:
Poly Bag
output voltage:
Type-C Tablets: 5V - 12V @ 3A max
mUSB Tablets: 5V @ 1.5A max
power output:
15W
input connector:
USB Type-C (Power In)
input cable length:
215mm
output connector:
(1) USB Type-A & (1) RJ45 Female
output cable length:
215mm
peripheral output:
900mAh
Warranty:
3 year warranty
Weight:
1.94 lb
Additional Information:
IntelliSkin® is required for this dock. See RAM-GDS-SKIN-ZE21C-NG for compatible IntelliSkin®.
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
