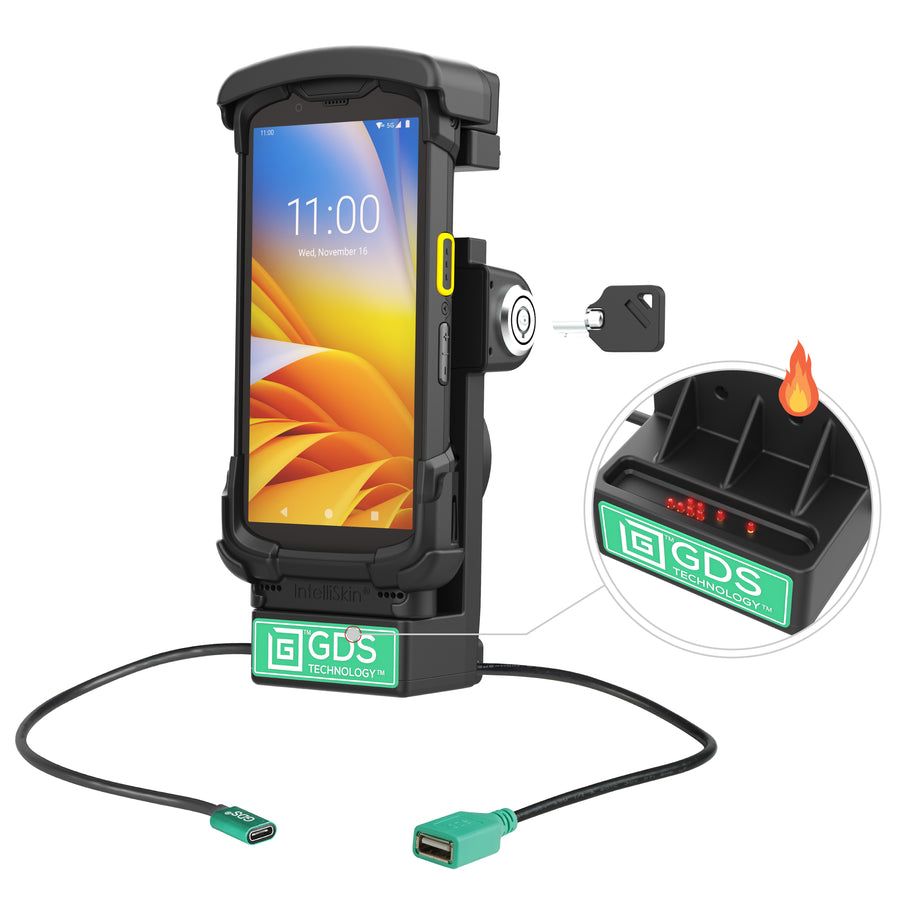

GDS® Locking Powered Dock + USB-A for Zebra TC73/78 - Heated Pins
Always Protected. Always Connected.®
$262.99
Locking, USB-A Peripheral + Heated Pins
Features
- Spring-loaded powered dock featuring GDS® Technology™ is designed to accommodate IntelliSkin®-wrapped handheld devices including the Zebra TC7x series
- Power delivered via USB-C connector; connect a single input device via USB-A connector

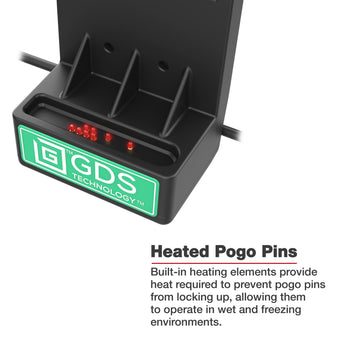

- Heating elements provide the necessary heat required to prevent pogo pins from locking up, allowing them to operate in wet and freezing environments.
- Compatible with RAM® diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Backed by a 3-year warranty

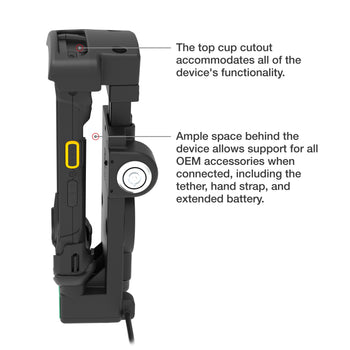

The GDS® Vehicle USB-C Dock for Zebra TC73/TC78 in IntelliSkin®, Locking, Heated Pins, Power + Data (RAM-GDS-DOCKL-V12-ZE35CPDHU) is designed to fit the IntelliSkin®-wrapped Zebra TC7x. The dock's one-handed operation makes it easier than ever to secure your device in a variety of environments and mounting configurations. An integrated cutout on the top allows for the ability to access buttons, ports, and scanner without removing the device from the dock. Charging capabilities are provided by a USB Type-C connector and built-in pogo pin docking contacts for a seamless charging experience. A single USB Type-A pigtail connector is provided for adding one additional peripheral. This dock has built-in heating elements that provide the necessary heat required to prevent pogo pins from locking up, allowing them to operate in wet and freezing environments. Includes key-lock for additional theft deterrance. Always Protected. Always Connected.®
GDS® Locking Powered Dock + USB-A for Zebra TC73/78 - Heated Pins
Always Protected. Always Connected.®
Overview
The GDS® Vehicle USB-C Dock for Zebra TC73/TC78 in IntelliSkin®, Locking, Heated Pins, Power + Data (RAM-GDS-DOCKL-V12-ZE35CPDHU) is designed to fit the IntelliSkin®-wrapped Zebra TC7x. The dock's one-handed operation makes it easier than ever to secure your device in a variety of environments and mounting configurations. An integrated cutout on the top allows for the ability to access buttons, ports, and scanner without removing the device from the dock. Charging capabilities are provided by a USB Type-C connector and built-in pogo pin docking contacts for a seamless charging experience. A single USB Type-A pigtail connector is provided for adding one additional peripheral. This dock has built-in heating elements that provide the necessary heat required to prevent pogo pins from locking up, allowing them to operate in wet and freezing environments. Includes key-lock for additional theft deterrance. Always Protected. Always Connected.®
hardware included
(2) Keys
(2) #8-32 x 1/2" Machine Screws
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts
hole pattern
2-Hole AMPS: 1.912"
materials
High strength composite
packaging type
Poly Bag
input connector
USB Type-C
USB Type A for 1 Peripheral
input cable length
1 Meter
peripheral output
500mAh
Warranty
3 year warranty
Weight
0.84 lb
