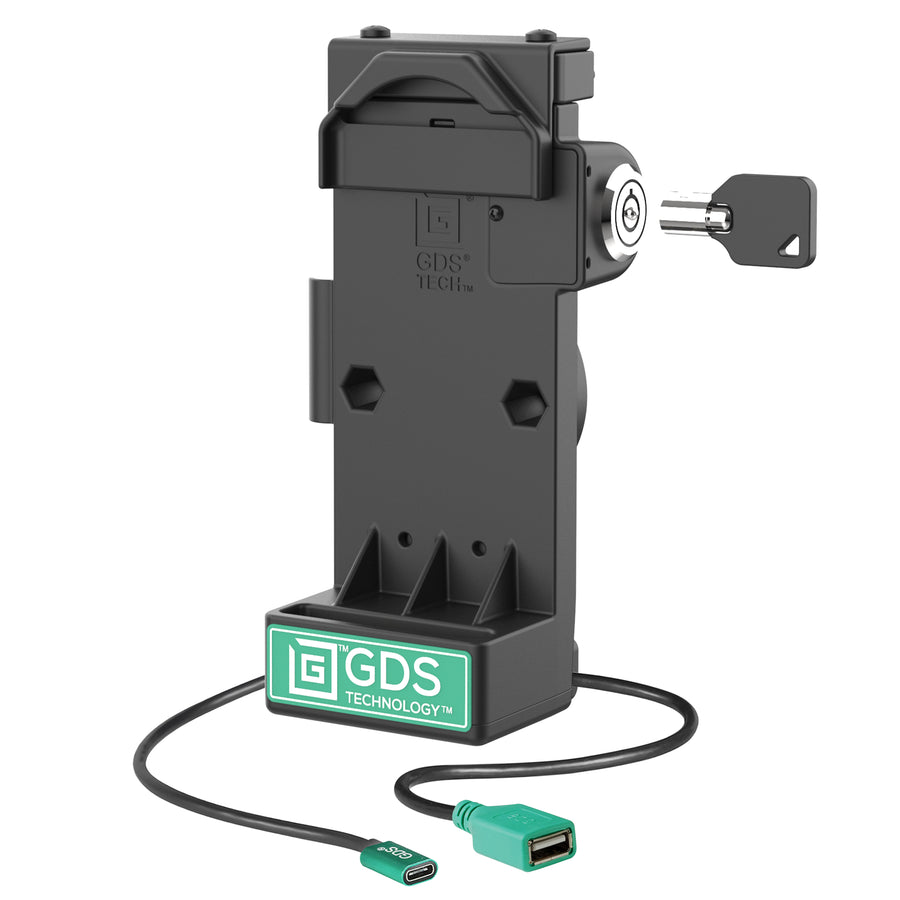

GDS® Uni-Conn™ Locking Spring Loaded Power + Single USB-A Dock
One Dock to Connect Them All™
$218.49
Locking, USB-A Peripheral
Features
- Spring-loaded, locking dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging and connection to one additional USB peripheral
- Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed
- Power delivered via USB-C connector; connect a single input device via USB-A connector
- RAM® Mounts Compatible™
- Backed by a 3-year warranty
The GDS® Uni-Conn™ Locking Spring Loaded Power + Single USB-A Dock (RAM-GDS-DOCKL-V12-U1CPDU) is a revolutionary universal docking platform. This sliding dock solution securely holds your device in place and features a key lock for additional theft deterrence. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. The docking station requires the GDS® Uni-Conn™ adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin®-wrapped device. It has an easy docking and undocking process, simply place the GDS® Uni-Conn™ adapter on the back of your device into the octagon-shaped connection point on the top cup, pushing the the device upwards until you can place the bottom of the device on the D-shaped bottom cup connection point. Integrate up to one peripheral device into your solution with the USB-A female connector. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Always Protected. Always Connected.® One Dock to Connect Them All™.
GDS® Uni-Conn™ Locking Spring Loaded Power + Single USB-A Dock
One Dock to Connect Them All™
Overview
The GDS® Uni-Conn™ Locking Spring Loaded Power + Single USB-A Dock (RAM-GDS-DOCKL-V12-U1CPDU) is a revolutionary universal docking platform. This sliding dock solution securely holds your device in place and features a key lock for additional theft deterrence. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. The docking station requires the GDS® Uni-Conn™ adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin®-wrapped device. It has an easy docking and undocking process, simply place the GDS® Uni-Conn™ adapter on the back of your device into the octagon-shaped connection point on the top cup, pushing the the device upwards until you can place the bottom of the device on the D-shaped bottom cup connection point. Integrate up to one peripheral device into your solution with the USB-A female connector. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Always Protected. Always Connected.® One Dock to Connect Them All™.
hardware included
(2) Keys
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nylock Nuts
hole pattern
2-Hole AMPS: 1.912"
materials
High strength composite
packaging type
Poly Bag
input connector
USB Type-C
USB Type A for 1 Peripheral
input cable length
1 Meter
peripheral output
500mAh
Warranty
3 year warranty
Weight
0.64 lb
Additional Information
GDS® Uni-Conn™ Spring-Loaded docks are not recommended for high vibration or open cockpit applications, such as forklifts or semi-trucks. Consider the GDS® Uni-Conn™ Powered Dock for high vibration applications or the GDS® Tough-Dock™ for extreme applications.
