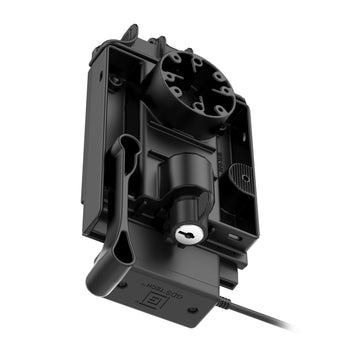

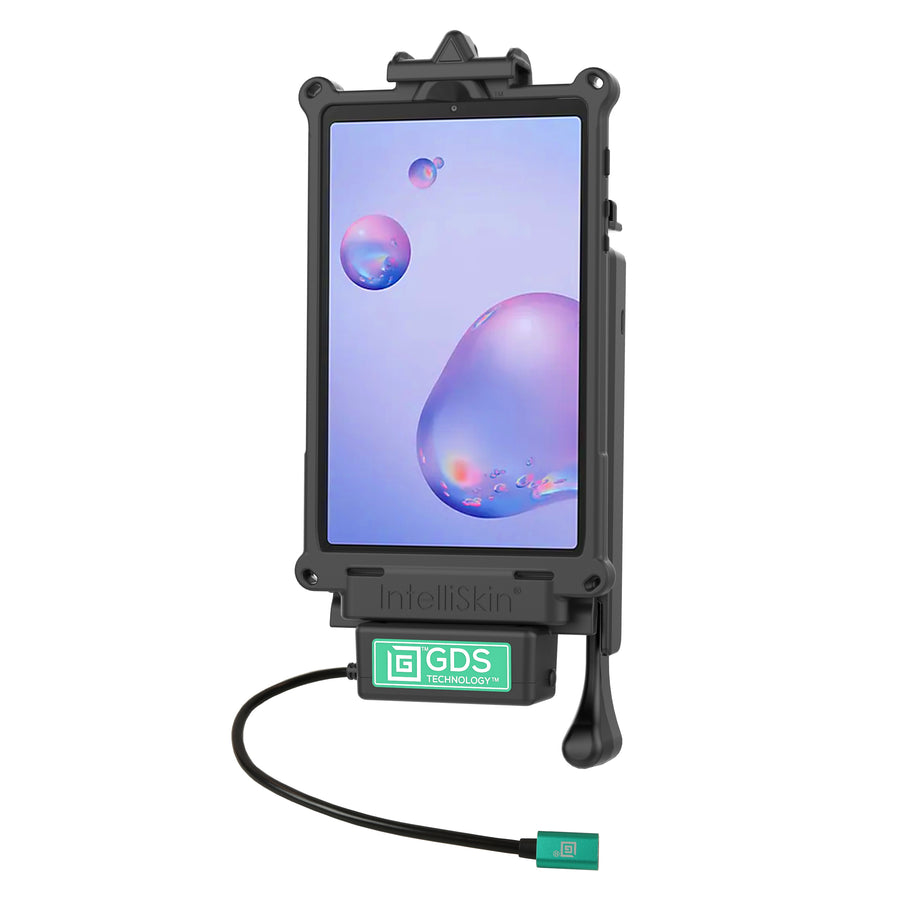

GDS® USB Type-C 2.0 Vehicle Dock for Samsung Tab A 8.4 & 8.0 (2019)
Always Protected. Always Connected.®
$178.99
Overview
This USB Type-C locking vehicle dock for IntelliSkin® Next Generation features GDS® Technology™ to enable high speed charging capabilities on the go. This spring-loaded, quick release dock is designed specifically to fit the Samsung Galaxy Tab A 8.4 (2020) or the Tab A 8.0 (2019) in an IntelliSkin® Next Gen-protective sleeve, and features a keyed lock that offers a secure fit with easy access to your mounted tablet. A bottom dock cup includes GDS® pogo pins and a USB Type-C pigtail. Without the need to remove your IntelliSkin® Next Gen sleeve from the device, efficiently mount the tablet in the vehicle dock to keep your tablet charged and locked in place. The top cup of this system is specifically designed to allow access of the 3.5mm headphone jack of the tablet while in the dock. This dock is designed to meet the demands of field workers in a variety of applications, including transportation, field sales, logistics, manufacturing, and much more. Always Protected. Always Connected.®
Features
- Vehicle dock designed specifically for the Samsung Galaxy Tab A 8.4 (2020) and Tab A 8.0 (2019) wrapped in IntelliSkin® Next Gen protective sleeves to accommodate 3.5mm headphone jack
- Type-C port provides high speed charging to the device
- Keyed lock for theft deterrence
- Easy, quick release of your tablet for on-the-go applications
- Backed by a 3-year warranty
hardware included:
Assembly Hardware
(2) M4 x 32mm Machine Screws
(2) M4 Nylock Nuts
(2) #8 x 5/8" Sheet Metal Screws
(1) Cable Clamp
(2) Keys
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
materials:
High strength composite
packaging type:
Poly Bag
output voltage:
5V - 12V @ 3A
power output:
15W
input connector:
USB Type-C
Warranty:
3 year warranty
Weight:
1.49 lb
