Patented & Pats. Pend.

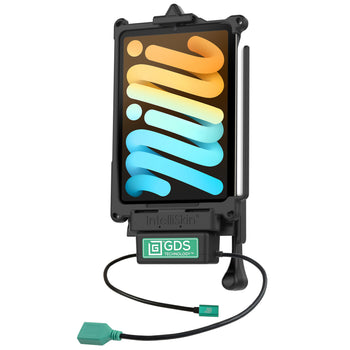

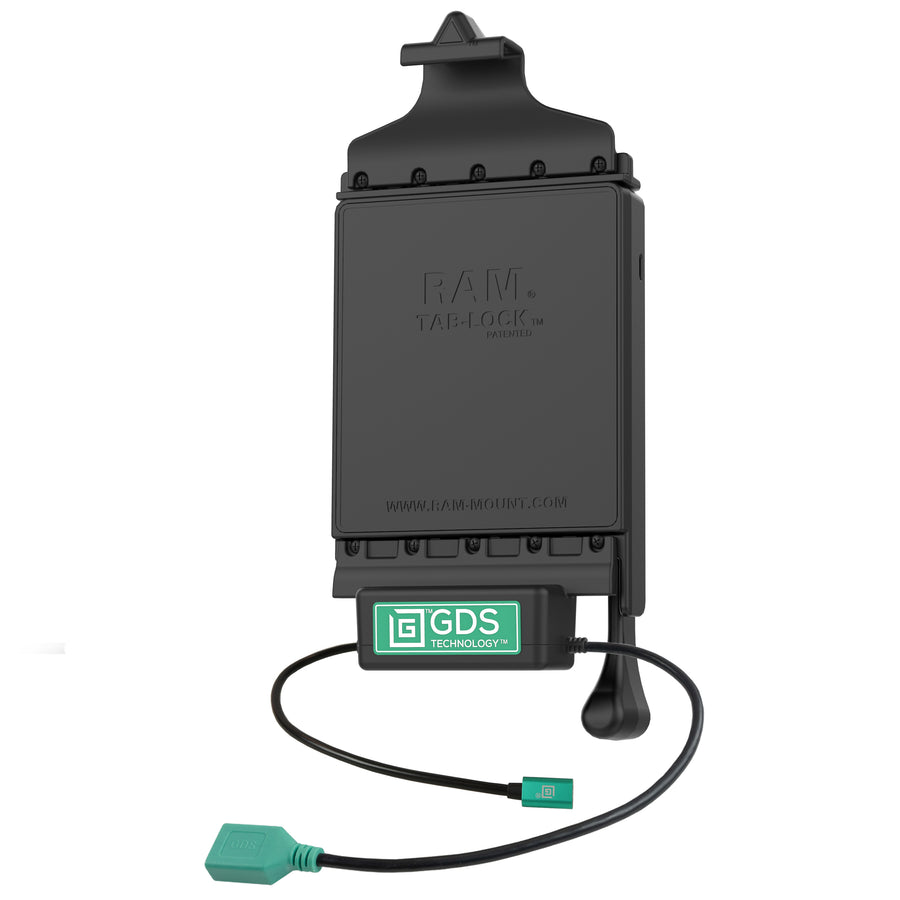

GDS® Dock + Single USB-A for iPad mini (A17 Pro) & mini 6

Always Protected. Always Connected.®
Part#: RAM-GDS-DOCKL-V10-OMT3CDU
UPC: 793442101489
$270.99

Overview

The single USB Type-C locking vehicle dock for IntelliSkin® Next Generation features GDS® Technology™ for Apple iPad mini (A17 Pro) & mini 6 and other small tablets to enable high speed charging capabilities on the go. This spring-loaded, quick release dock features a keyed lock that offers a secure fit with easy access to your mounted tablet. A bottom dock cup includes 8 pogo pins and a USB Type-C pigtail. Without the need to remove your IntelliSkin® Next Gen sleeve from the device, efficiently mount the tablet in the vehicle dock to keep your tablet charged and locked in place. This dock is designed to meet the demands of field workers in a variety of applications, including transportation, field sales, logistics, manufacturing, and much more. Always Protected. Always Connected.®

Features

  • Vehicle dock with integrated GDS® Technology™ for Apple iPad mini (A17 Pro) & mini 6 and other shorter tablets offers a universal charging platform for any device wrapped in IntelliSkin® Next Gen

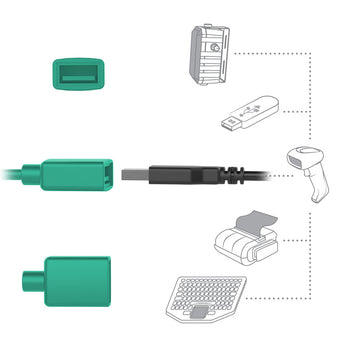

  • Power delivered via USB-C connector; connect a single input device via USB-A connector

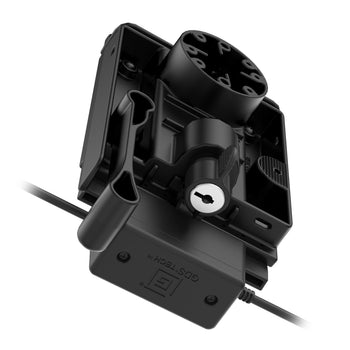

  • Keyed lock for theft deterrence
  • Easy, quick release of your tablet for on-the-go applications
  • Backed by a 3-year warranty

hardware included:

Assembly Hardware
(2) M4 x 32mm Machine Screws
(2) M4 Nylock Nuts
(2) #8 x 5/8" Sheet Metal Screws
(1) Cable Clamp
(2) Keys

hole pattern:

4-Hole AMPS: 1.181" x 1.496"

materials:

High strength composite

packaging type:

Poly Bag

output voltage:

Type-C Tablets: 5V - 12V @ 3A max
mUSB Tablets: 5V @ 1.5A max
Peripheral: 5V @ 900mA max

power output:

15W

input connector:

USB Type-C
USB Type A for 1 Peripheral

output cable length:

.21 Meters

peripheral output:

500mAh

Warranty:

3 year warranty

Weight:

1.65 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

Instructions

GDS® Vehicle Dock Setting Guide
GDS® Locking Vehicle Dock Assembly Guide

Documents

Sell Sheet
Material Handling Catalog
GDS® Technology™ Catalog
